Driver Seat Schematics

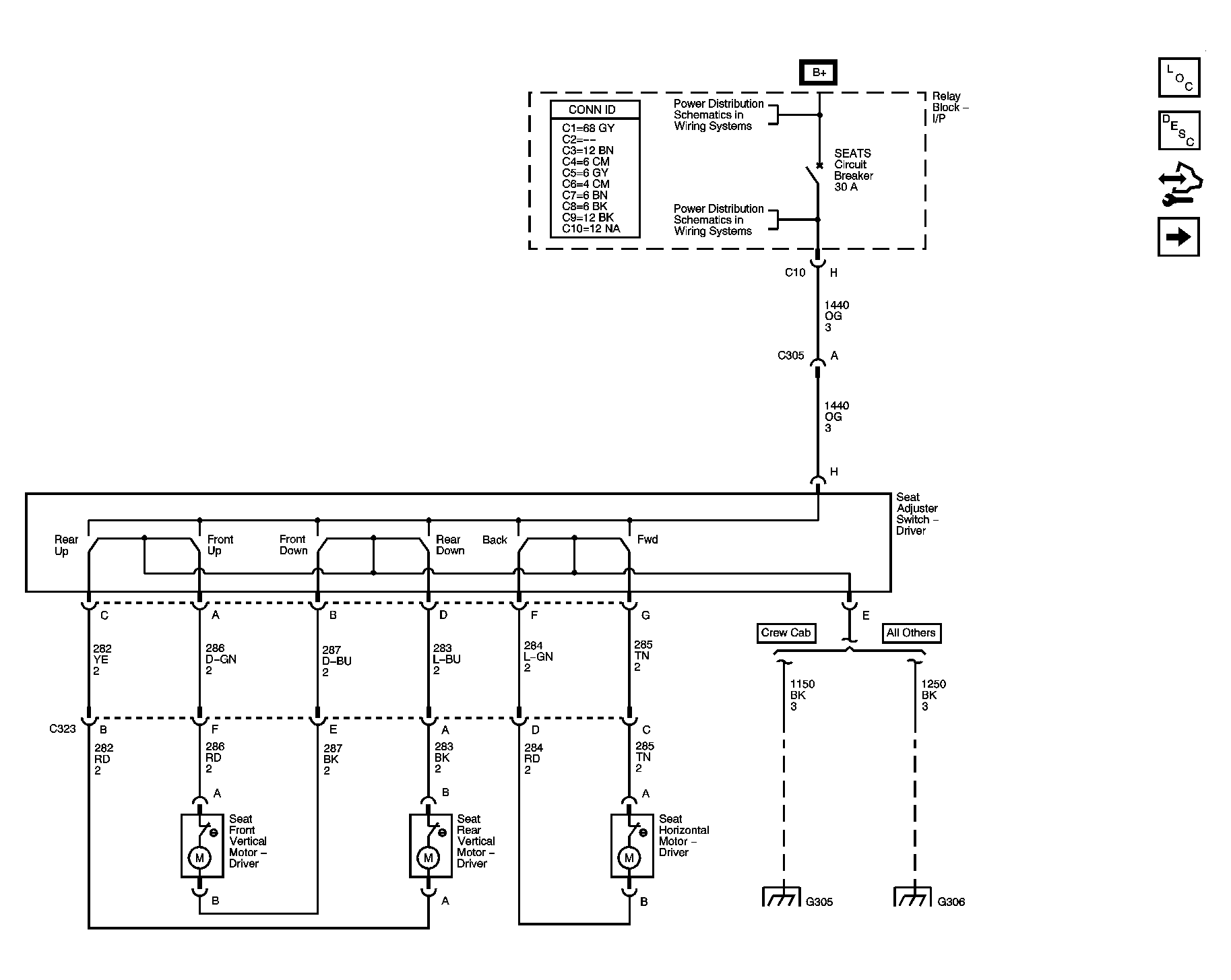

Fig 1: Driver 6-Way (AG1) Schematic
GM1524292Courtesy of GENERAL MOTORS CORP.

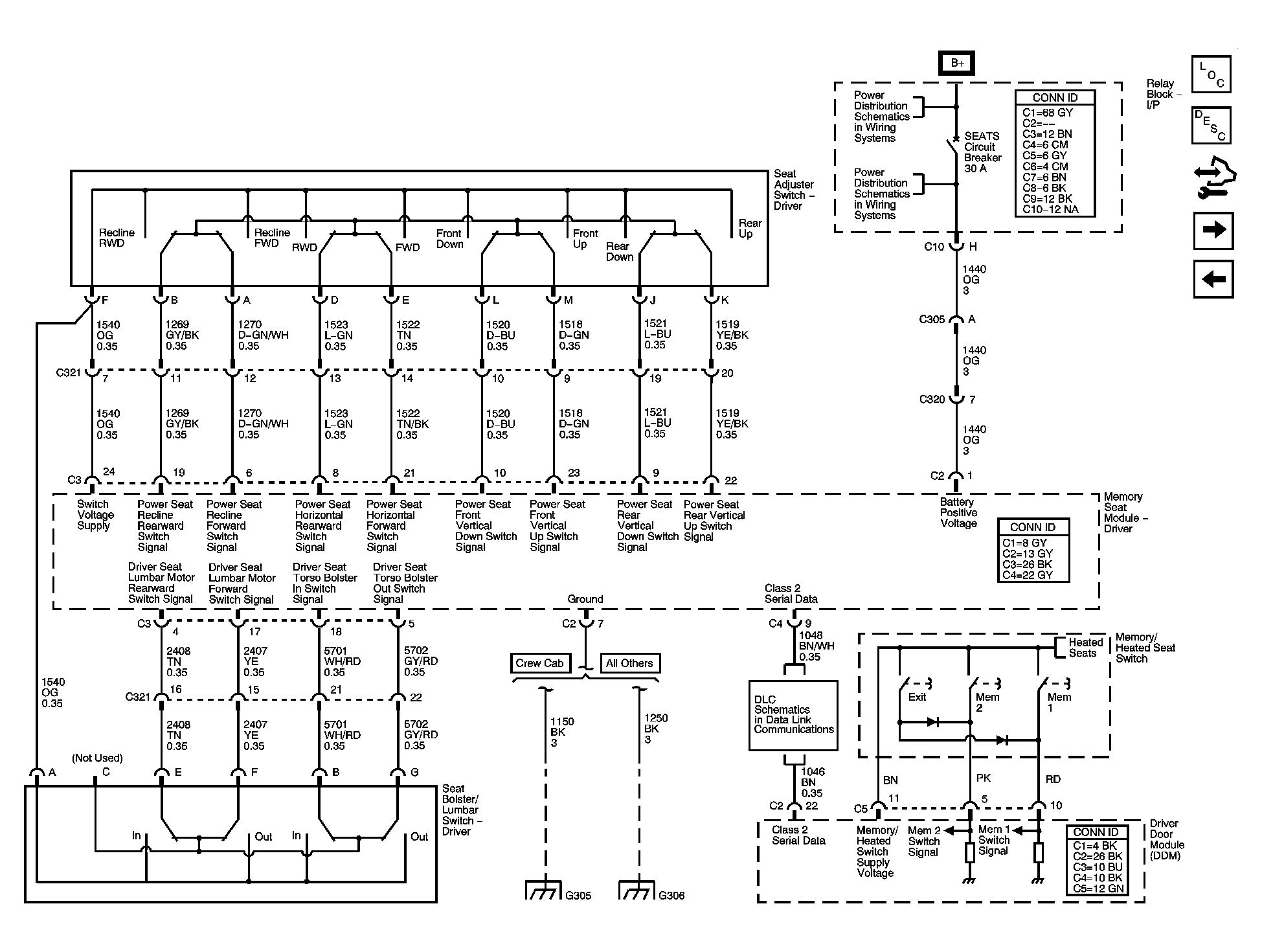

Fig 2: Power, Ground, Serial Data & Seat Controls (AG1 w/AN3) Schematic
GM1524294Courtesy of GENERAL MOTORS CORP.

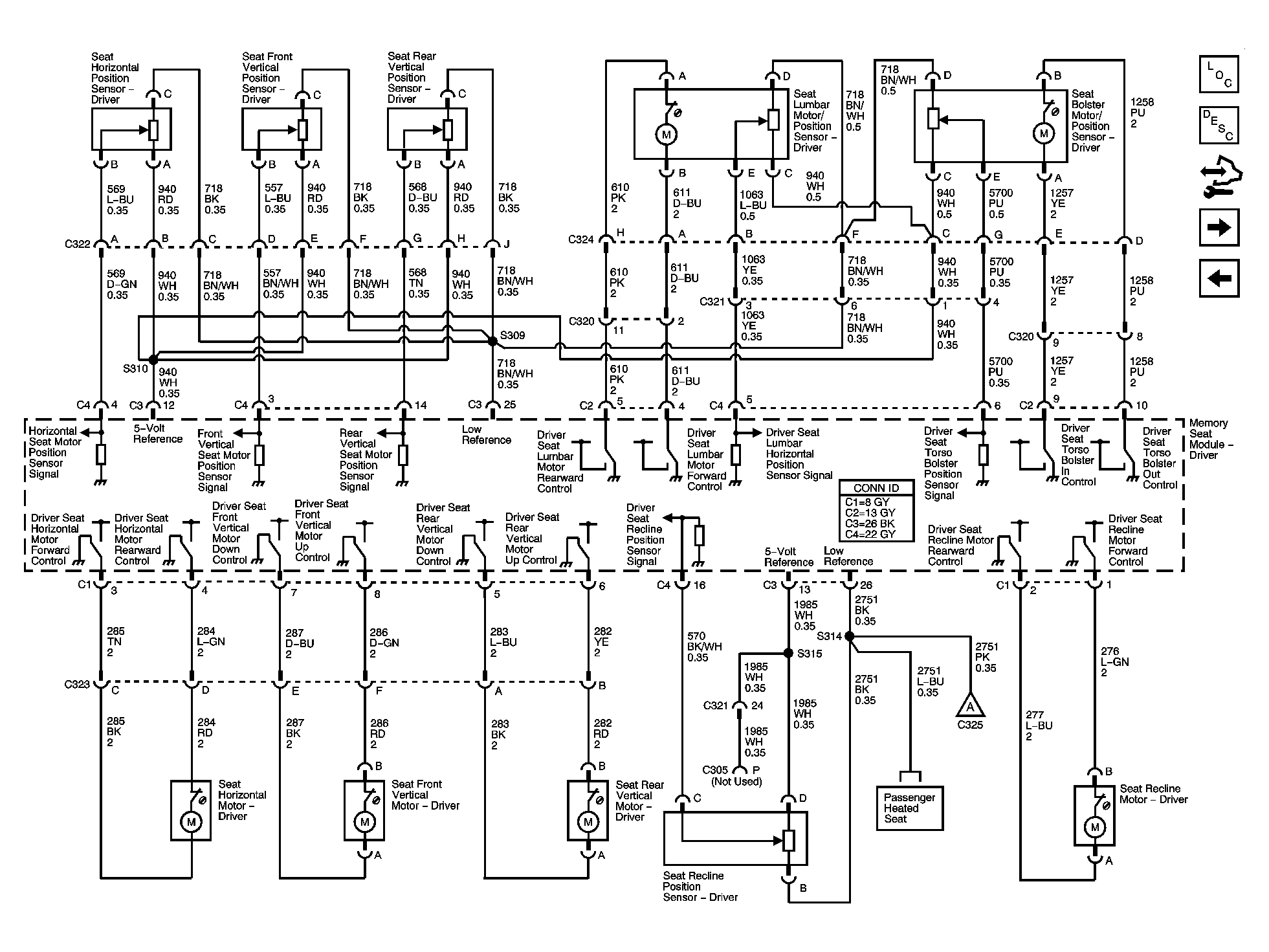

Fig 3: Seat Motors & Position Sensors (AG1 w/AN3) Schematic
GM1524299Courtesy of GENERAL MOTORS CORP.

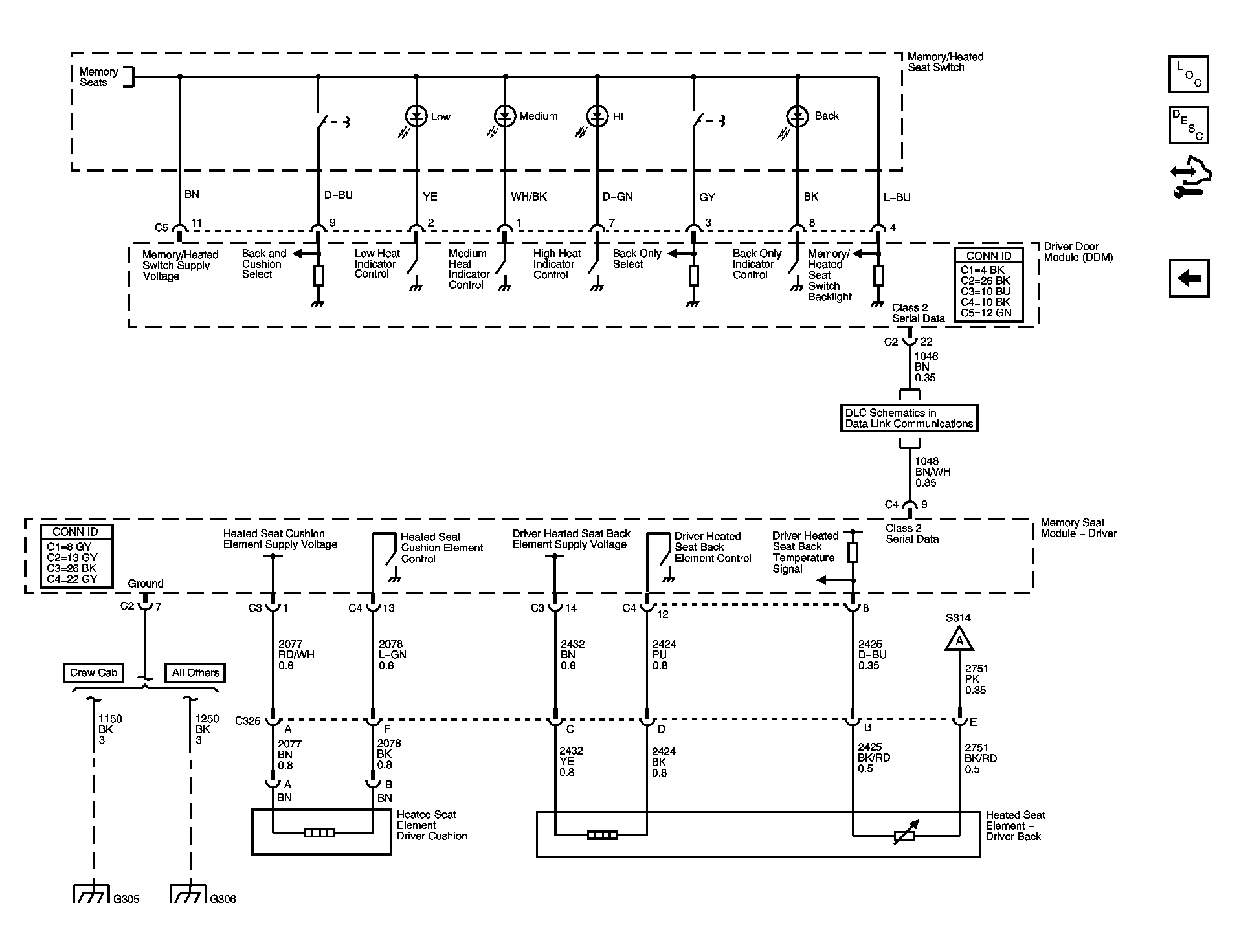

Fig 4: Heated Seat Controls (AN3) Schematic
GM1524305Courtesy of GENERAL MOTORS CORP.
