Cruise Control Schematics

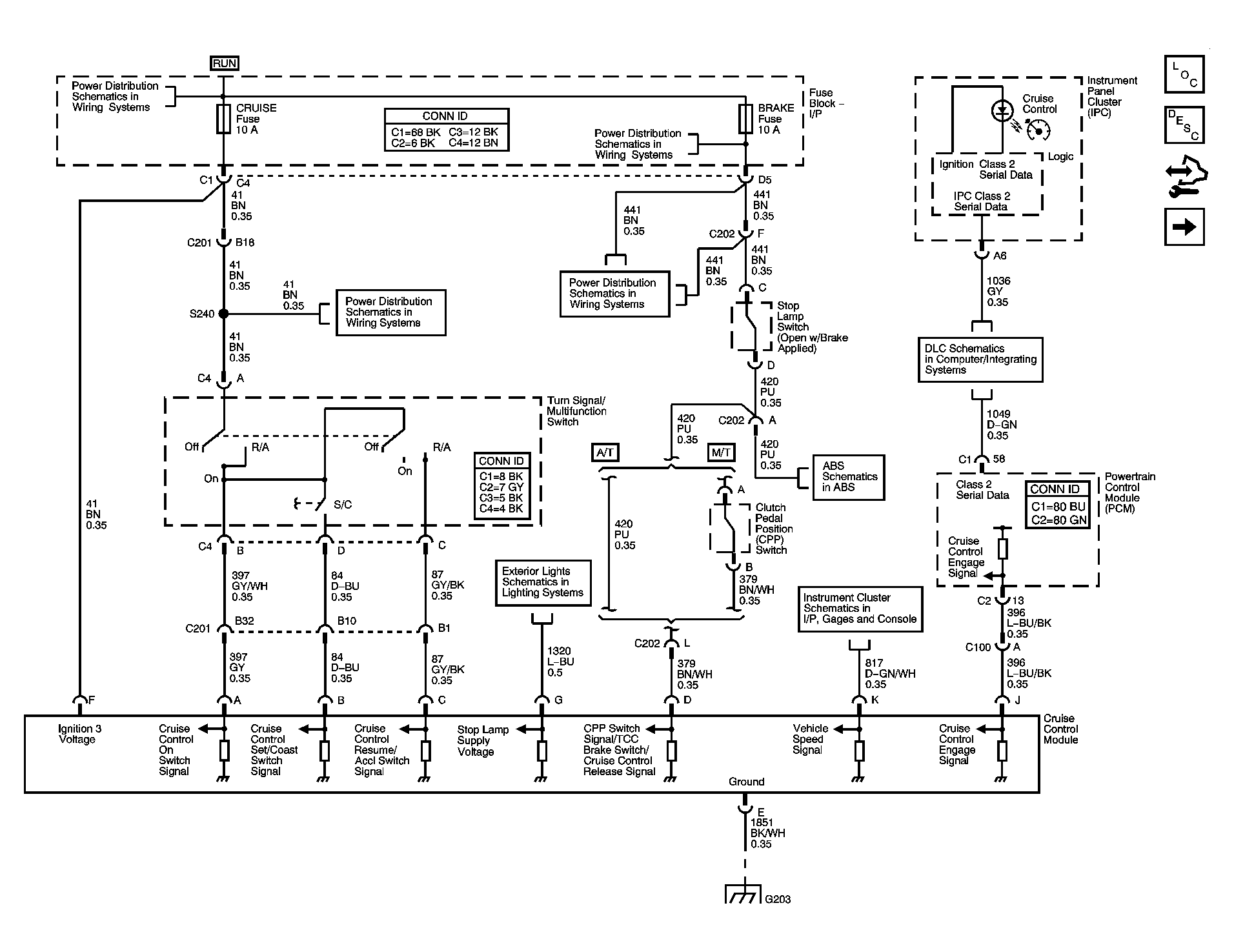

Fig 1: Cruise Control Schematic (4.3L)
GM1548266Courtesy of GENERAL MOTORS CORP.

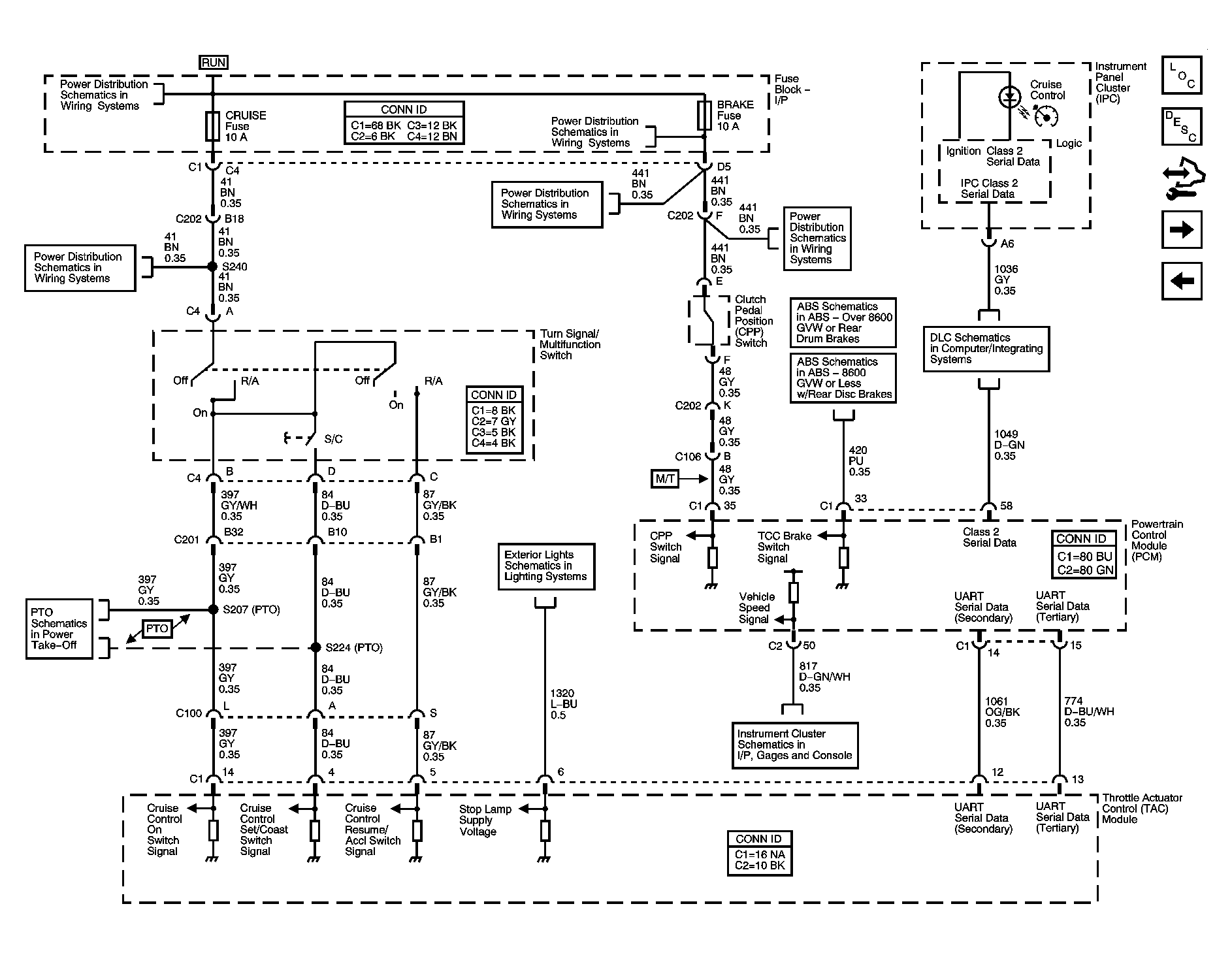

Fig 2: Cruise Control Schematic (4.8, 5.3, 6.0 & 8.1L)
GM1548268Courtesy of GENERAL MOTORS CORP.

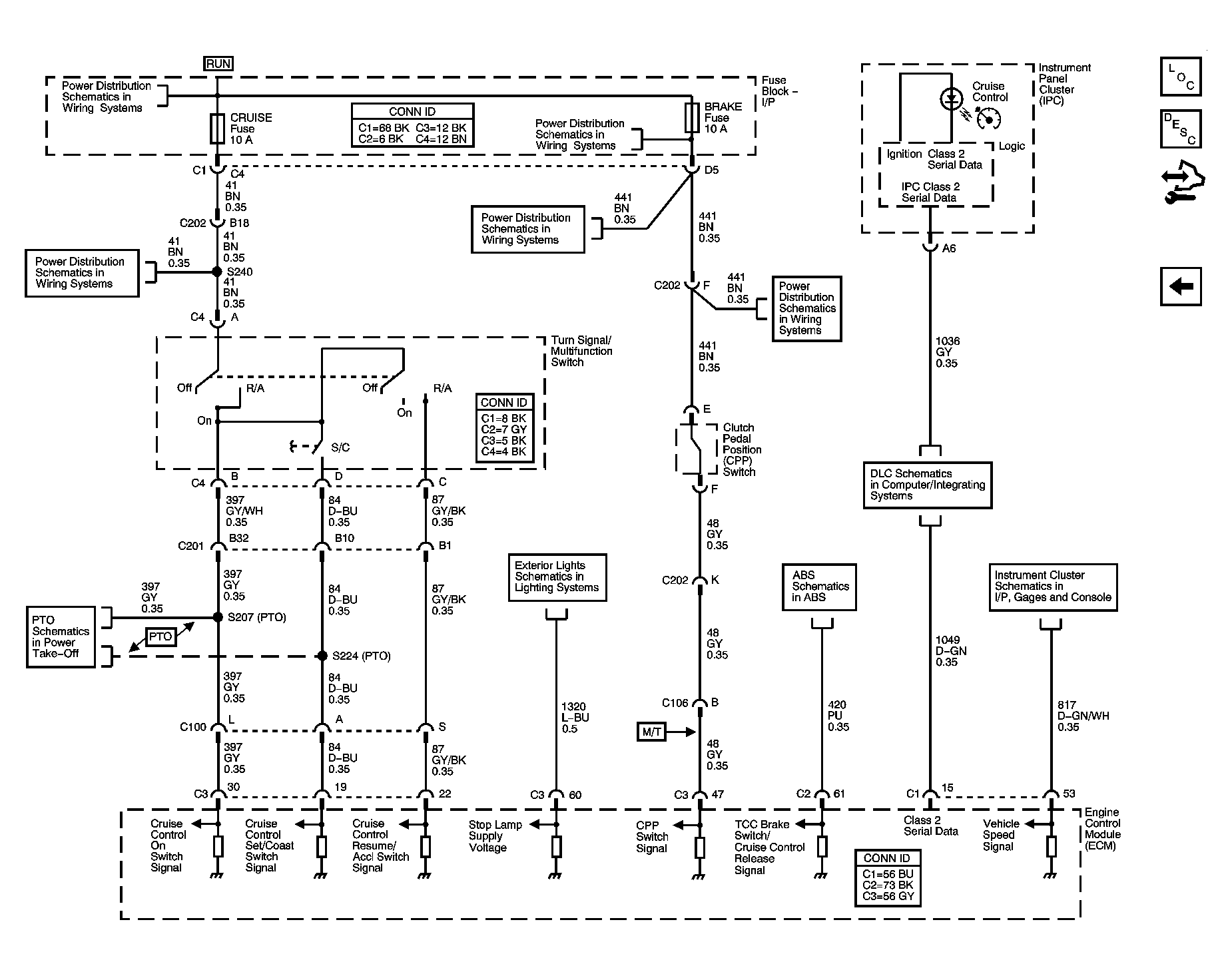

Fig 3: Cruise Control Schematic (Diesel)
GM1548269Courtesy of GENERAL MOTORS CORP.
