Instrument Panel, Gages, and Console Connector End Views

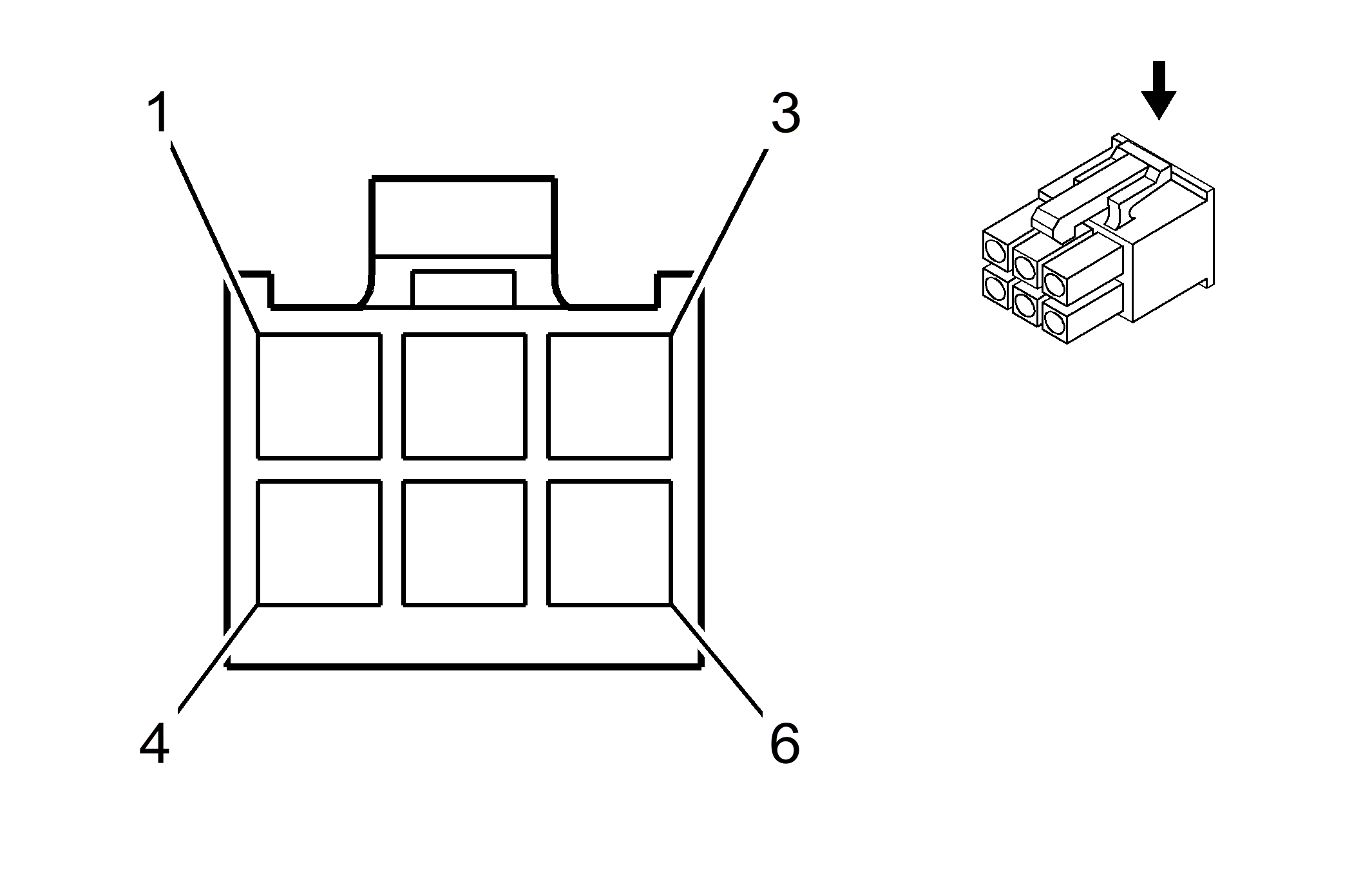

Clock

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		MOLEX 5557-06 6-Way F Mini Fit Conn. Rec. Housing (WH)
Pin	Wire Color	Circuit No.	Function
1	D-GN/WH	1358	Driver Information Center (DIC) Switch Signal
2	OG	1140	Battery Positive Voltage
3	BK	1050	Ground
4	-	-	Not Used
5	YE	43	Accessory Voltage
6	BN/WH	309	Right Park Lamp Supply Voltage

Fuel Pump/Sender

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		AMP 936039 6-Way F Fuel Pump 6POS Conn'r Ass'y (BN)
Pin	Wire Color	Circuit No.	Function
1	D-BU	1936	Fuel Level Sensor Signal
2	BK	1250	Ground
3	GY	120	Fuel Pump Supply Voltage
4	BK	1250	Ground
5	PU	172	Low Fuel Indicator Control
6	PU/BK	632	Low Reference

Ignition Key Alarm Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610070 2-Way 090 (2.3 mm) Series (WH)
Pin	Wire Color	Circuit No.	Function
1	OG	640	Battery Positive Voltage
1	OG	640	Battery Positive Voltage
2	L-GN	80	Key In Ignition Switch Signal
2	L-GN	80	Key In Ignition Switch Signal

Instrument Cluster A

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 651563 23-Way F PCB 050 Series (WH)
Pin	Wire Color	Circuit No.	Function
A1	PU/WH	33	Brake Warning Indicator Control
A2	BN	25	Charge Indicator Control/Charge Indicator Signal
A3	YE	148	Hold Mode Indicator Control
A4	BN	956	Speed Sensitive Power Steering (SSPS) Warning Lamp Control
A5-A6	-	-	Not Used
A7	PU/WH	821	Engine Overspeed Indicator Control
A8-A9	-	-	Not Used
A10	BK	250	Ground
A11	BK/WH	238	Seat Belt Switch - Left
A12	WH	156	Courtesy Lamp Control
A13	L-GN	867	ABS Indicator Failure Control
A14	WH	905	Serial Data
A15-A16	-	-	Not Used
A17	L-BU	14	Left Turn Signal Lamps Supply Voltage
A18	OG	640	Battery Positive Voltage
A19	PK	239	Ignition 1 Voltage
A20-A21	-	-	Not Used
A22	BN/WH	309	Right Park Lamp Supply Voltage
A23	D-GN	44	Instrument Panel Lamps Dimmer Switch Signal

Instrument Cluster B

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610363 20-Way F PCB 040 Series (WH)
Pin	Wire Color	Circuit No.	Function
B1	BK	250	Ground
B2	D-GN	135	Engine Coolant Temperature (ECT) Sensor Gage Signal
B3	WH	30	Fuel Level Sensor Signal
B4	GY	121	Engine Speed Signal
B5	D-GN/WH	817	Vehicle Speed Sensor (VSS) Signal
B6	BN/WH	419	Malfunction Indicator Lamp (MIL) Control
B7	BN	358	Air Bag Indicator Control
B8	PU/WH (PU/BK)	231	Oil Pressure Indicator Control
B9	L-GN	11	Headlamp High Beam Supply Voltage
B10	WH	85	Cruise Control Engage Signal (w/Cruise Control)
B11	D-BU	15	Right Turn Signal Lamps Supply Voltage
B12-B13	-	-	Not Used
B14	PU	172	Low Fuel Indicator Control
B15	PK	239	Ignition 1 Voltage
B16	-	-	Not Used
B17	BN	27	Hazard Flasher Signal (Optional)
B18	WH	629	DRL Indicator Control (w/DRL)
B19	YE	317	Fog Lamp Relay Coil Supply Voltage
B20	RD	122	Rear Fog Lamp Supply Voltage (w/Rear Fog Lamps)

Instrument Cluster C - 1.6L

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610896 8-Way F PCB Connector SDL-II PCB Hsg (WH)
Pin	Wire Color	Circuit No.	Function
C1-C2	-	-	Not Used
C3	D-BU/RD	3010	Park/Neutral Position (PNP) Switch L1 Signal
C4	GY	2380	Park/Neutral Position (PNP) Switch Low Gear Signal
C5	D-GN	2384	Park/Neutral Position (PNP) Switch 2nd Gear Signal
C6	L-GN/BK	3013	Park/Neutral Position (PNP) Switch L4 Signal
C7	L-GN/RD	3012	Park/Neutral Position (PNP) Switch L3 Signal
C8	L-GN/RD	3011	Park/Neutral Position (PNP) Switch L2 Signal

Instrument Cluster C - 1.8L and 2.0L

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610896 8-Way F PCB Connector SDL-II PCB Hsg (WH)
Pin	Wire Color	Circuit No.	Function
C1-C2	-	-	Not Used
C3	D-BU/RD	3010	Park/Neutral Position (PNP) Switch L1 Signal
C4-C5	-	-	Not Used
C6	L-GN/BK	3013	Park/Neutral Position (PNP) Switch L4 Signal
C7	L-GN/RD	3012	Park/Neutral Position (PNP) Switch L3 Signal
C8	L-GN/RD	3011	Park/Neutral Position (PNP) Switch L2 Signal

Multifunction Alarm Module

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610896 8-Way F PCB Connector SDL-II PCB Hsg (WH)
Pin	Wire Color	Circuit No.	Function
1	BK/WH	238	Seat Belt Switch Signal - Left
2	L-GN	80	Key In Ignition Switch Signal
3	PU/WH	821	Engine Overspeed Indicator Control
4	PU	126	Left Front Door Open Switch Signal
5	BK	1050	Ground
6	RD	709	Left Park Lamp Supply Voltage
7	-	-	Not Used
8	PK	239	Ignition 1 Voltage

Oil Pressure Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		ZPF1-2 1-Way F Metri-Pack 150 Series Sealed (BK)
Pin	Wire Color	Circuit No.	Function
1	BN/BK	231	Oil Pressure Switch Signal
