Theft Deterrent System Schematics

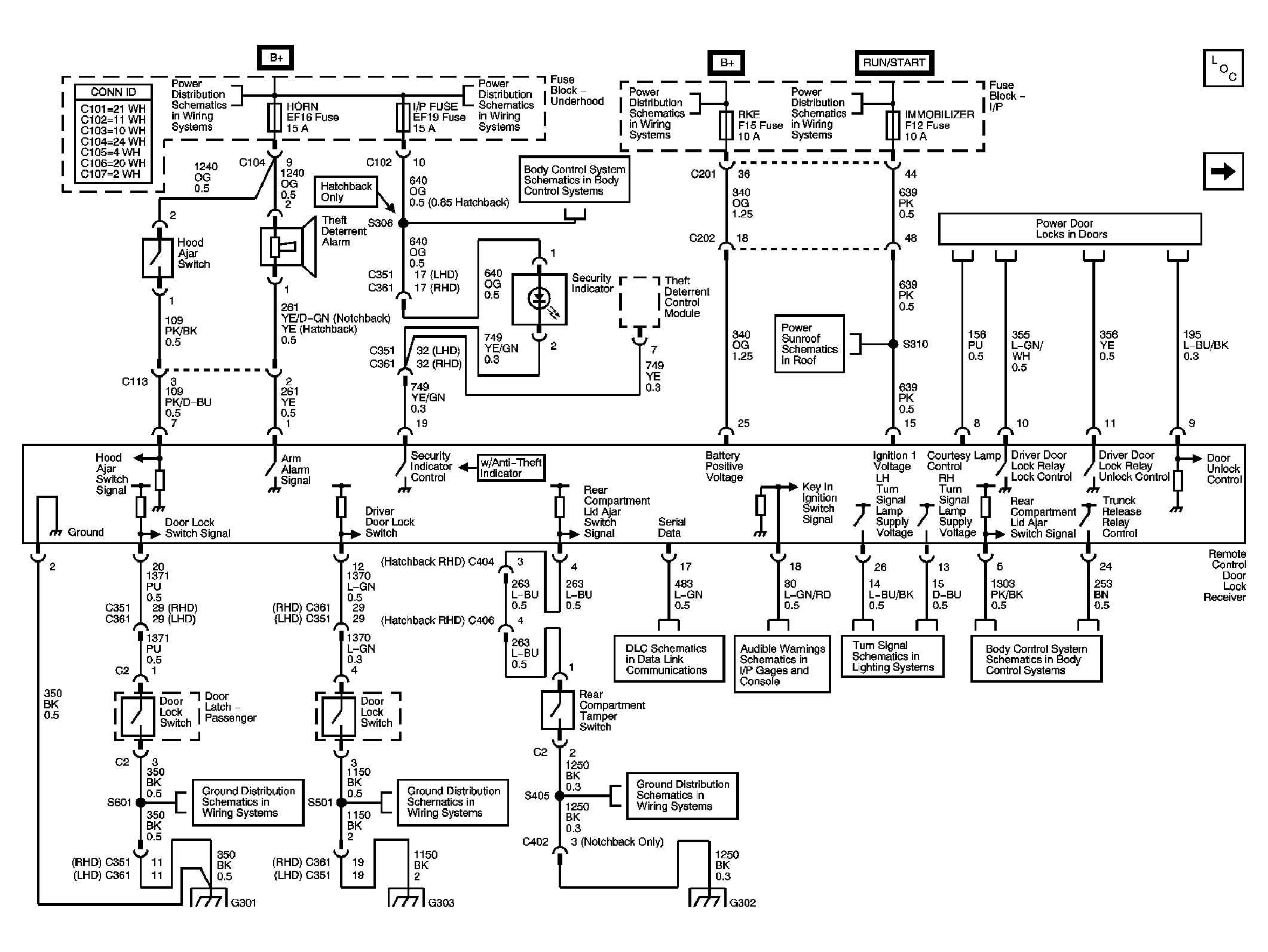

Fig 1: Remote Keyless Entry Schematic w/ Alarm
GM1372179Courtesy of GENERAL MOTORS CORP.

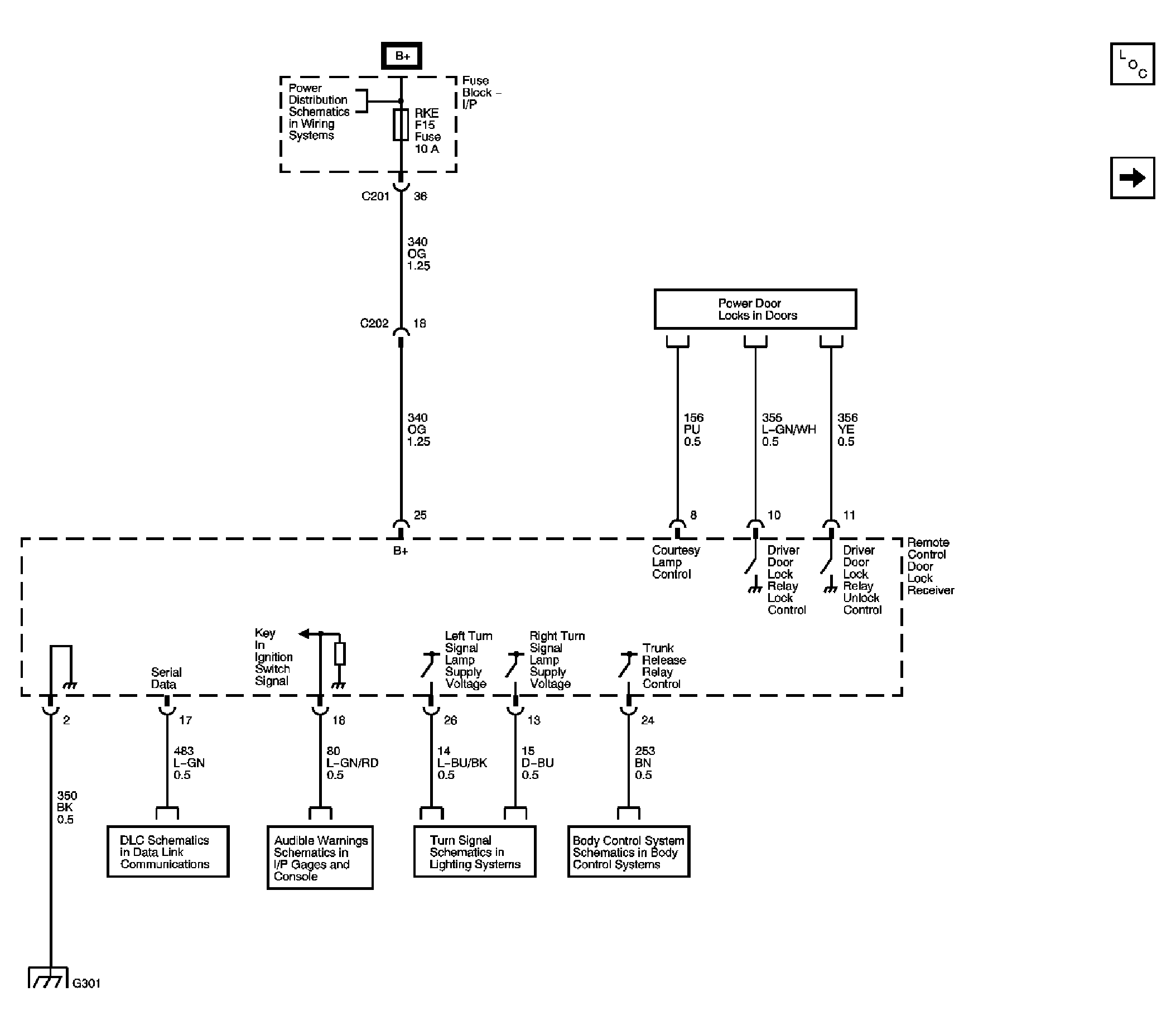

Fig 2: Remote Keyless Entry Schematic w/o Alarm
GM1456524Courtesy of GENERAL MOTORS CORP.

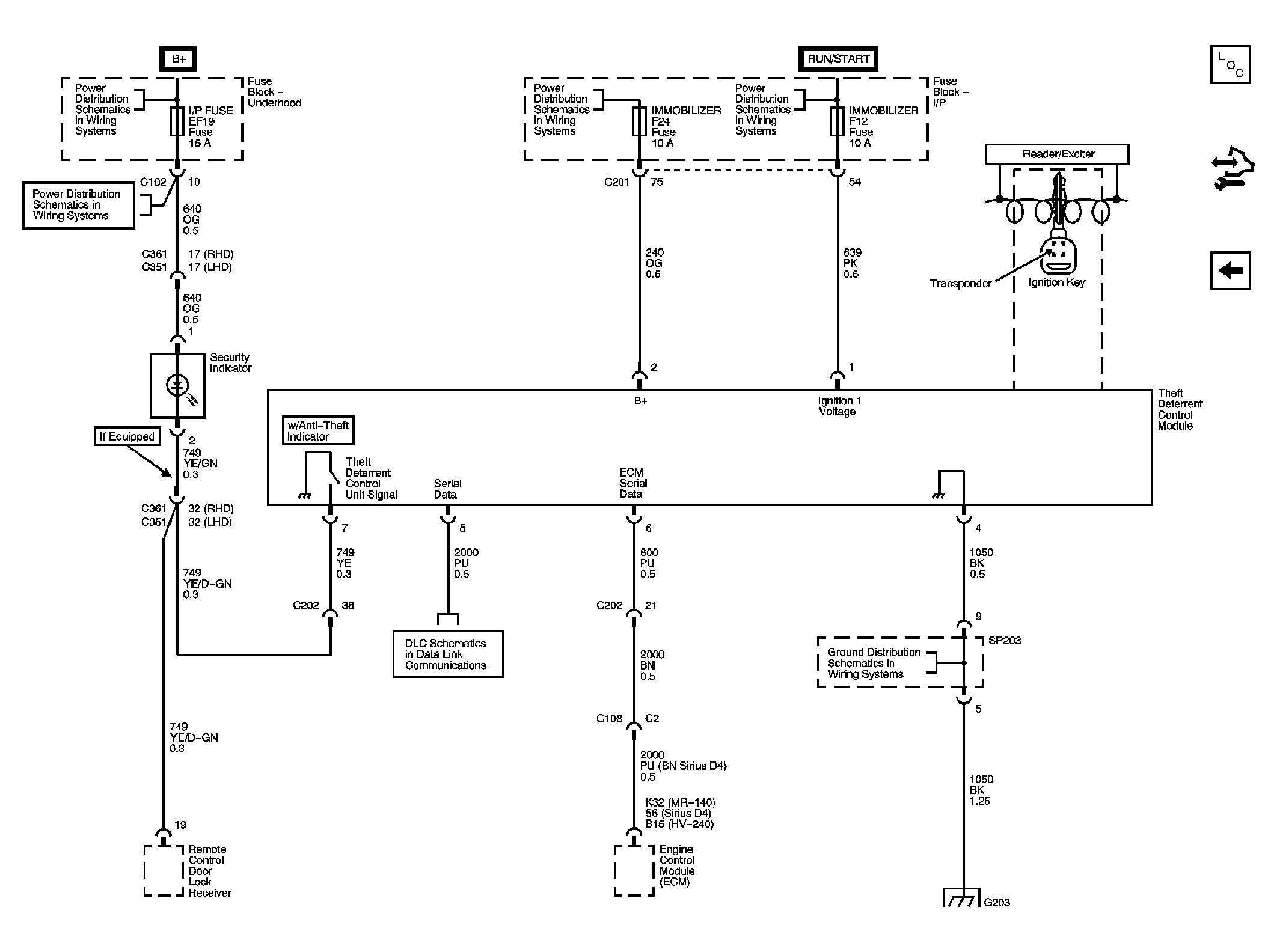

Fig 3: Theft Deterrent Control Module Schematic
GM1372177Courtesy of GENERAL MOTORS CORP.
