Under Body (Four Door and Wagon)

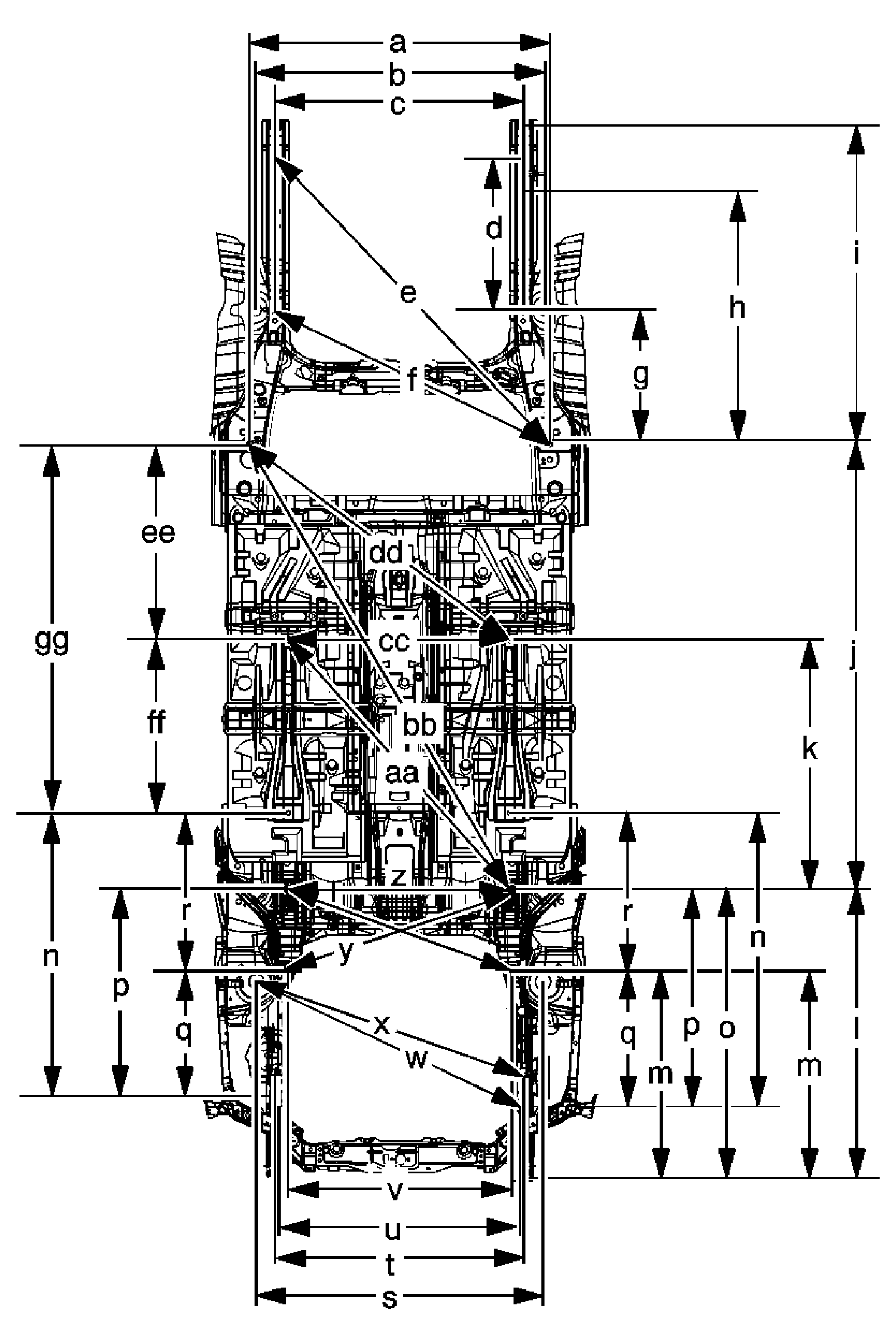

Fig 1: Identifying Underbody Measurements (Four Door and Wagon)

Courtesy of GENERAL MOTORS CORP.

Points	Dimensions (mm)	Dimensions (in)
IMPORTANT: Reference dimensions show the distance between the center of positioning holes shown in illustrations.
A	1,160	45.66
B	1,137.4	44.78
C	960	37.79
D	650	25.59
E	1,545	60.82
F	1,178	46.37
G	500	19.68
H	983	38.70
I	1,242	48.89
J	1,733	68.22
K	963	37.91
L	1,092	42.99
M	779	30.66
N	1,123	44.21
O	1,092	42.99
P	827	32.55
Q	514	20.23
R	609	23.97
S	1,103.4	43.44
T	950	37.40
U	930	36.61
V	864	34.01
W	1,202	47.32
X	1,169	46.02
Y	925	36.41
Z	923	36.33
AA	1,287	50.66
BB	2,005.5	78.95
CC	853	33.58
DD	1,270.4	50.01
EE	770	30.31
FF	667	26.26
GG	1,437	56.57
