Carbon Dioxide Arc Welder (MIG ARC Welding)
This welding process uses inexpensive carbon dioxide instead of expensive inert gases as a shielding means. Consumable metal electrodes are employed. It has a wide range of applications, including butt welding of thin plate, fillet welding, plug welding, and MIG spot welding. In terms of the weld strength, it is also highly stable.

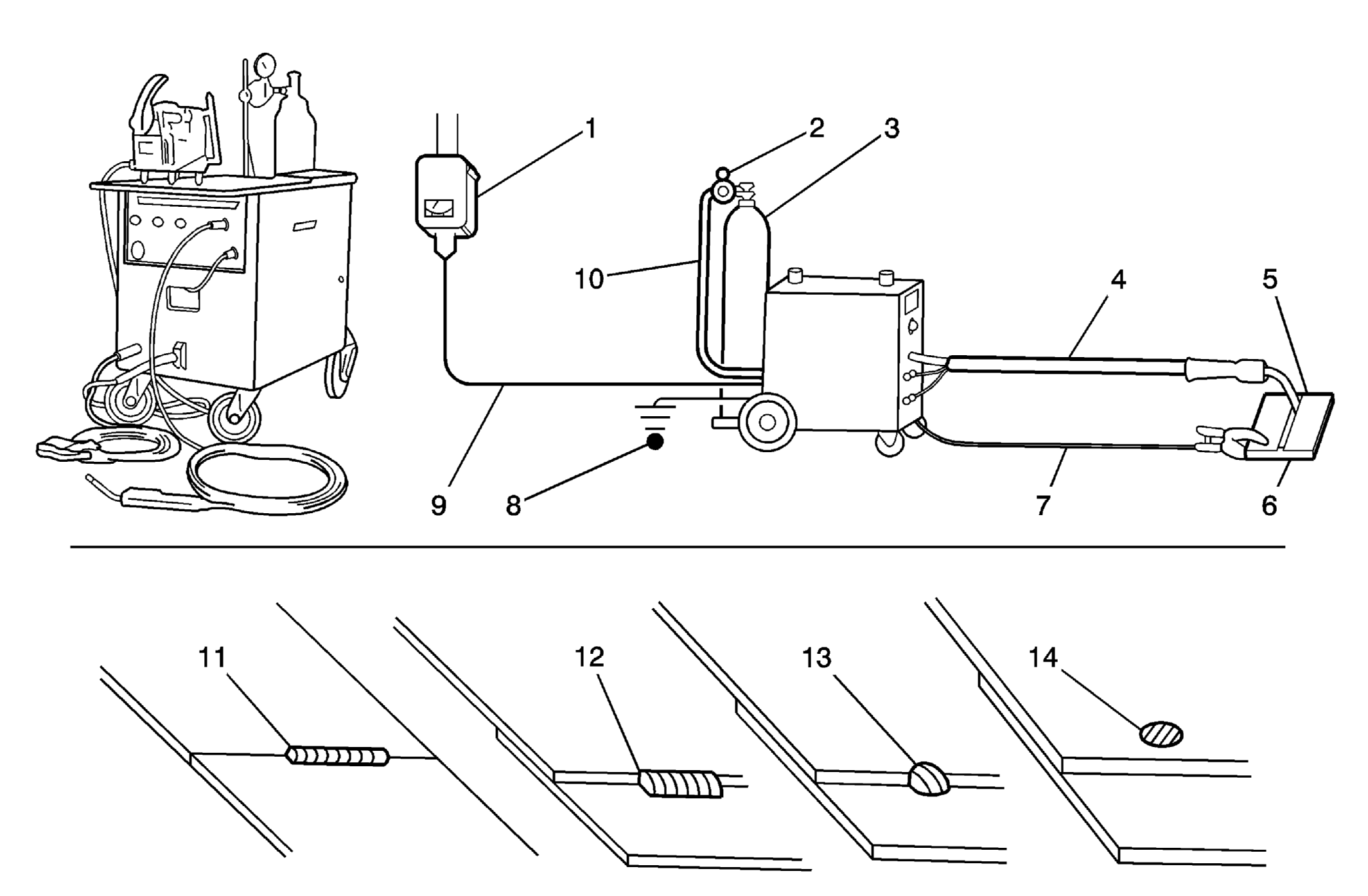

| Callout | Component Name |
|---|---|
| 1 | Single Phase 110V/Three Phase 200-240V |
| 2 | Gas Regulator |
| 3 | Carbon Dioxide or Argon and Carbon Dioxide |
| 4 | Welding Power Supply (Built in Wire Feed Mechanism) |
| 5 | Welding Torch |
| 6 | Work Piece |
| 7 | Work Cable |
| 8 | Ground Wire |
| 9 | Input Cable |
| 10 | Gas Hose |
| 11 | Butt Weld |
| 12 | Fillet Weld |
| 13 | Spot Weld |
| 14 | Plug Weld |
