Installation Procedure

    Fig 1: View Of Rear Bumper Fascia Screws
    GM1308636Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the rear bumper fascia with the bolts and the screws.

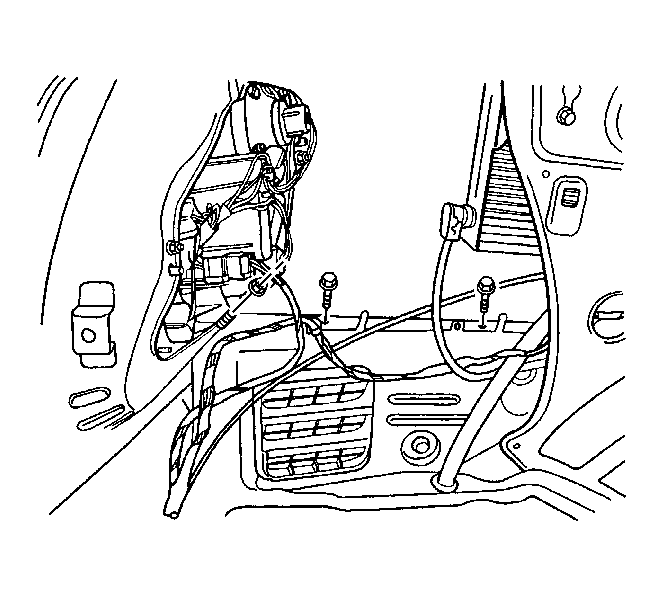

    2. Fig 2: Identifying Screws Behind Fascia
    GM1308635Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts and the nuts in the luggage compartment.
  3. Install the luggage compartment rear quarter trim panels. Refer to Trim Panel Replacement - Cargo Area Rear (Sedan) in Interior Trim.
    4. Fig 3: View Of Mud Guard Screws
    GM1308634Courtesy of GENERAL MOTORS CORP.
  4. Install the screws behind the fascia.
  5. Install the splash shields with the screws.
  6. Install the mud guards with the screws.
  7. Install the rear wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
