Installation Procedure

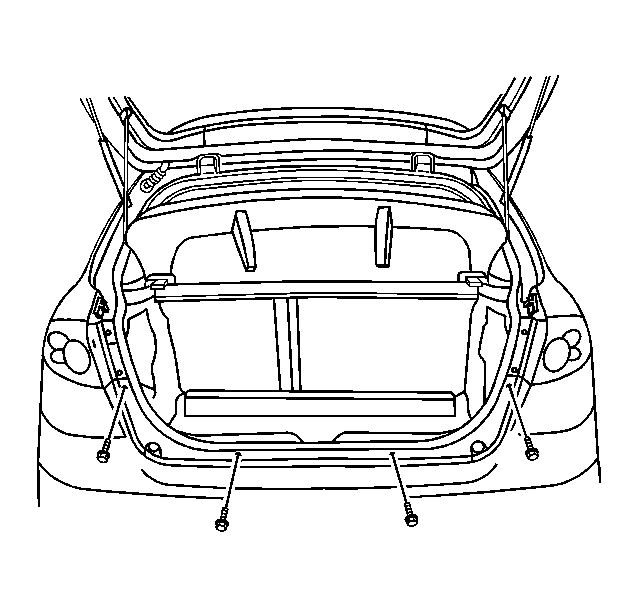

    Fig 1: Identifying Luggage Compartment Bolts
    GM1459930Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the rear bumper fascia with the bolts and the screws.

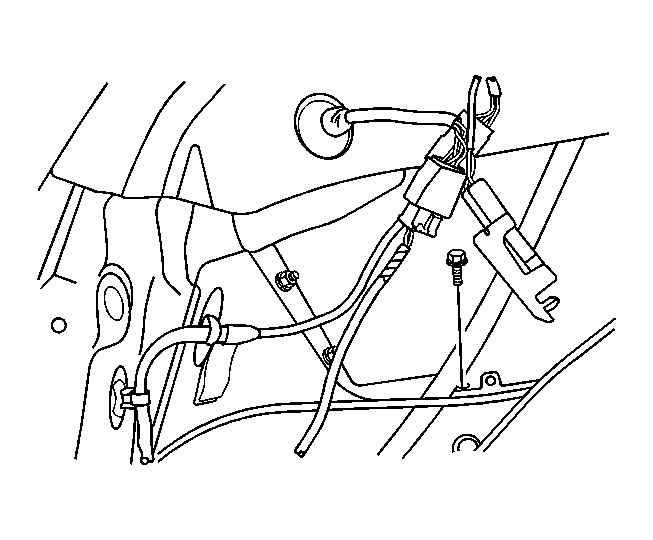

    2. Fig 2: View Of Rear Fascia Screws
    GM1459920Courtesy of GENERAL MOTORS CORP.
  2. Install the bolts and the nuts in the luggage compartment.
  3. Install the luggage compartment rear quarter trim panels. Refer to Trim Panel Replacement - Cargo Area Rear (Liftgate) in Interior Trim.
    4. Fig 3: Identifying Luggage Compartment Bolts
    GM1459930Courtesy of GENERAL MOTORS CORP.
  4. Install the screws behind the fascia.
  5. Install the splash shields with the screws.
  6. Install the rear wheels. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
