SIR Schematics

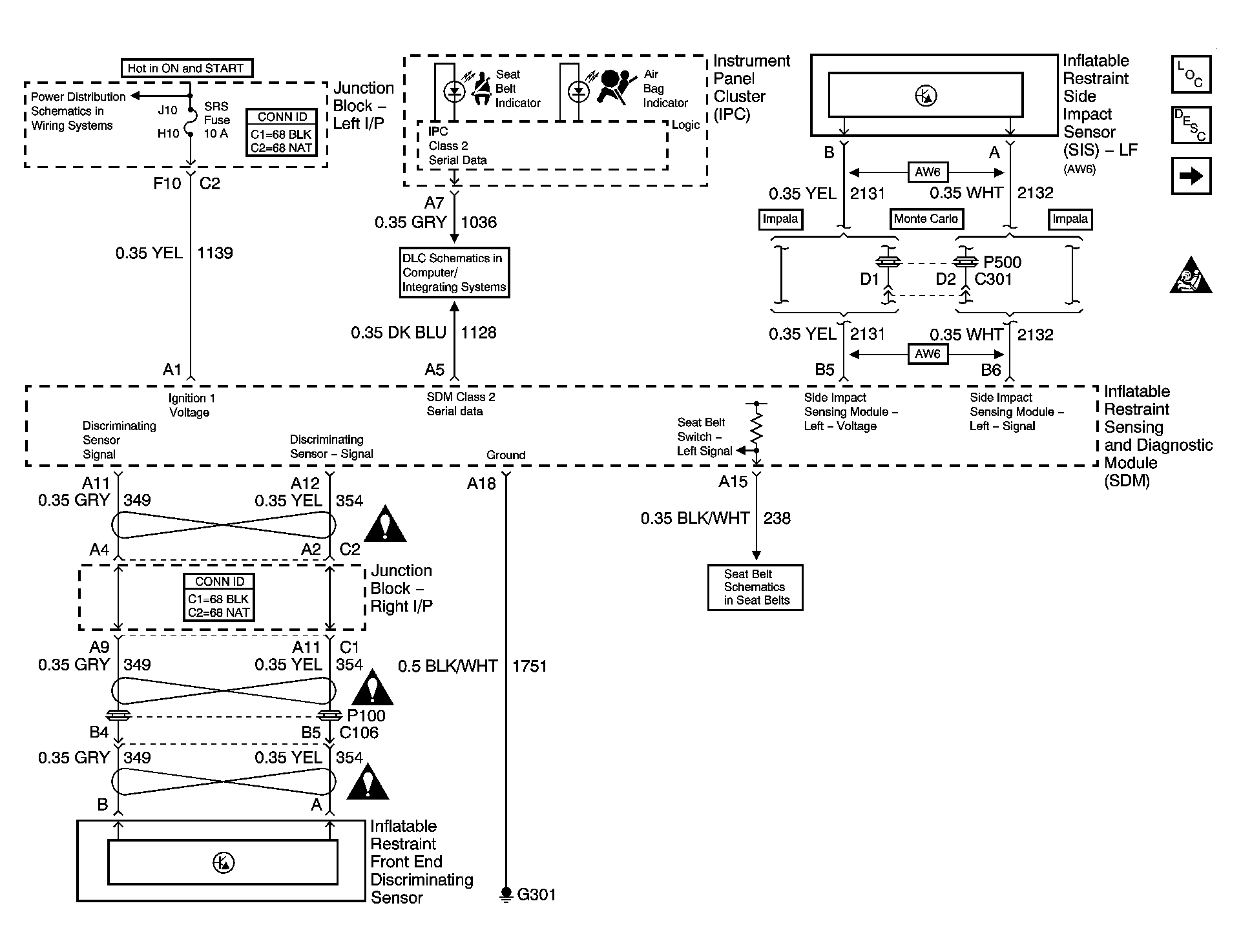

Fig 1: Data Link, Ground, Power & Sensor Schematic

GM1551706

Courtesy of GENERAL MOTORS CORP.

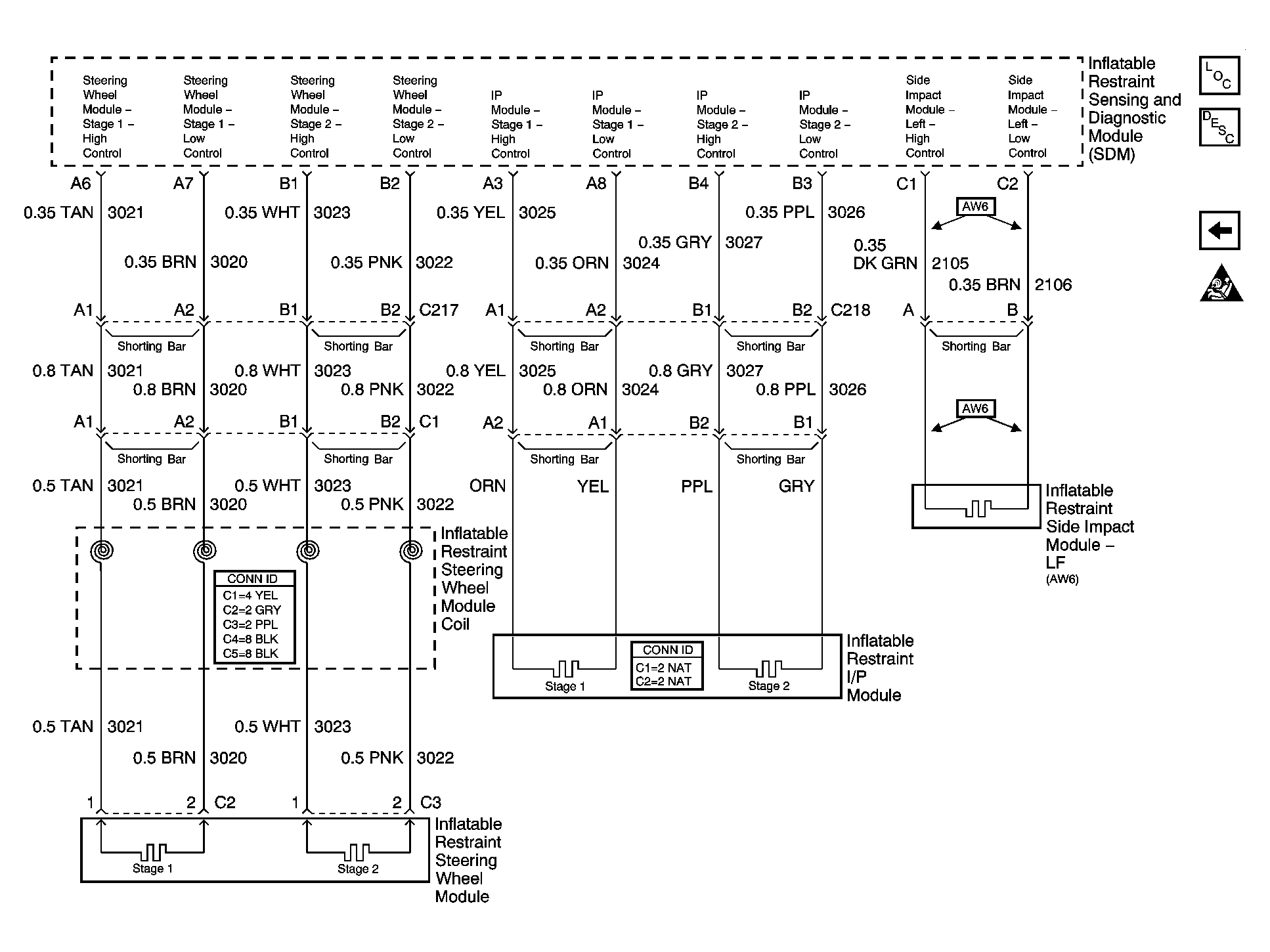

Fig 2: Deployment Loops Schematic

GM1350371

Courtesy of GENERAL MOTORS CORP.
