HVAC Schematics

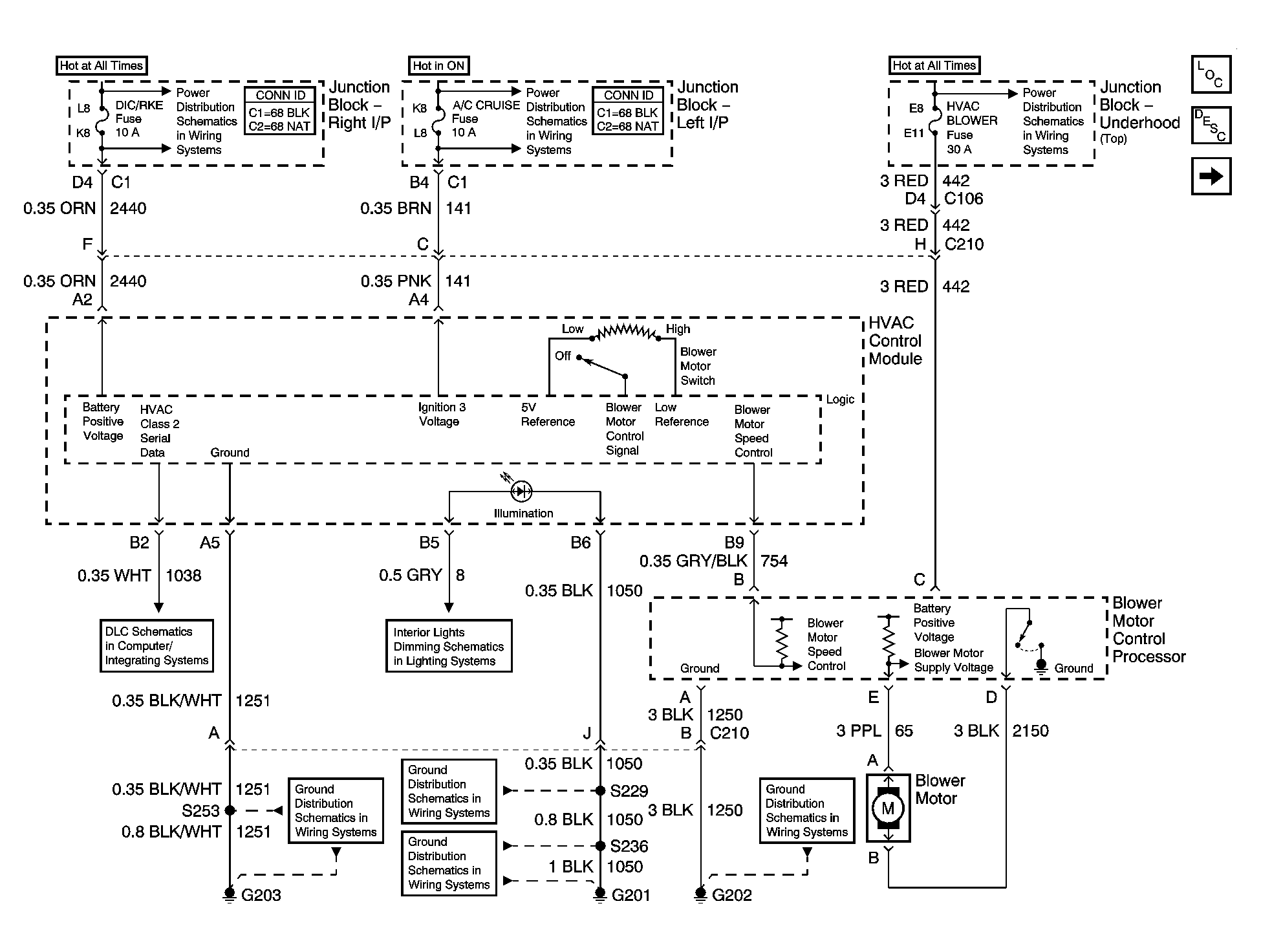

Fig 1: Power, Ground & Blower Motor Controls Schematic
GM1551437Courtesy of GENERAL MOTORS CORP.

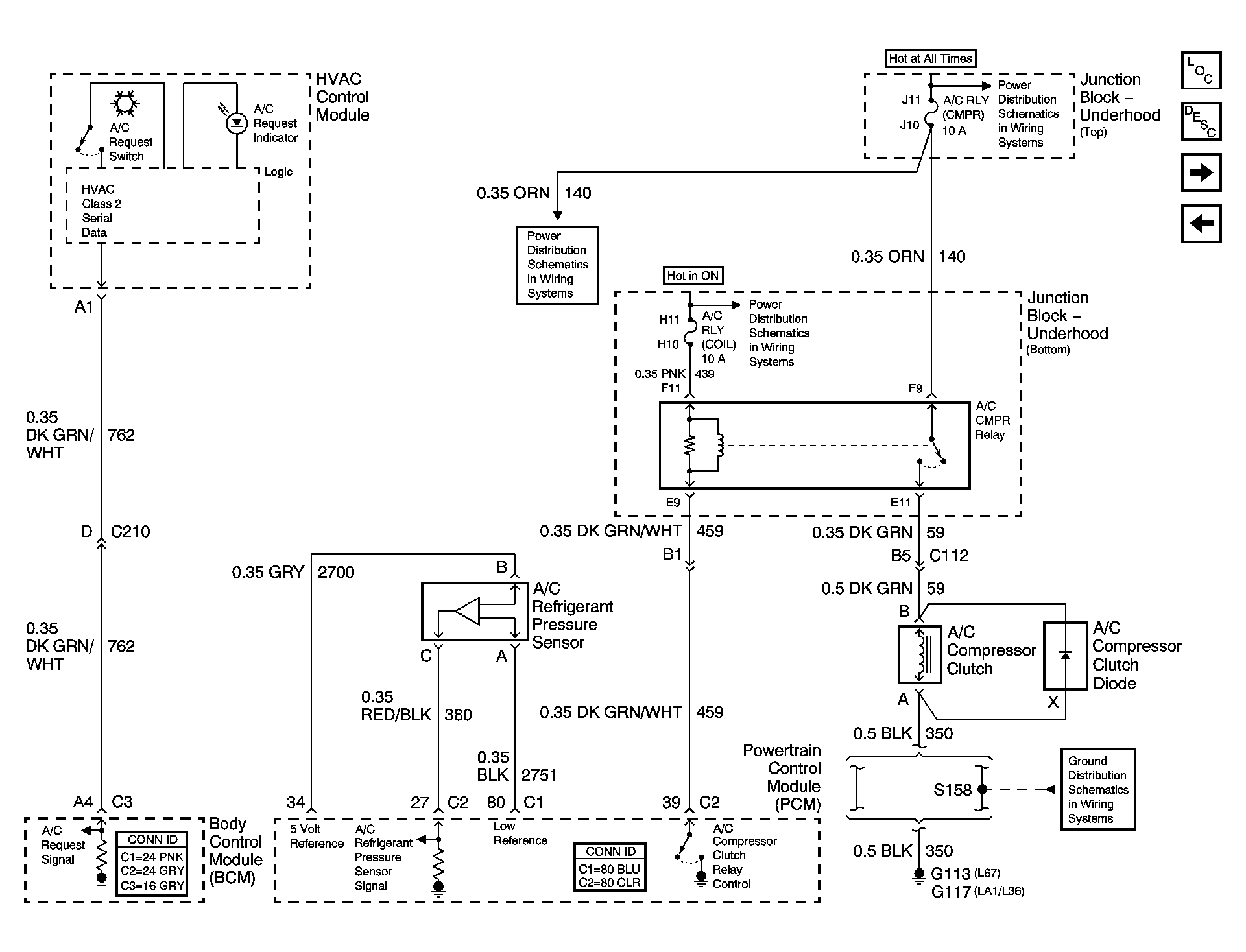

Fig 2: A/C Compressor Controls Schematic
GM1243988Courtesy of GENERAL MOTORS CORP.

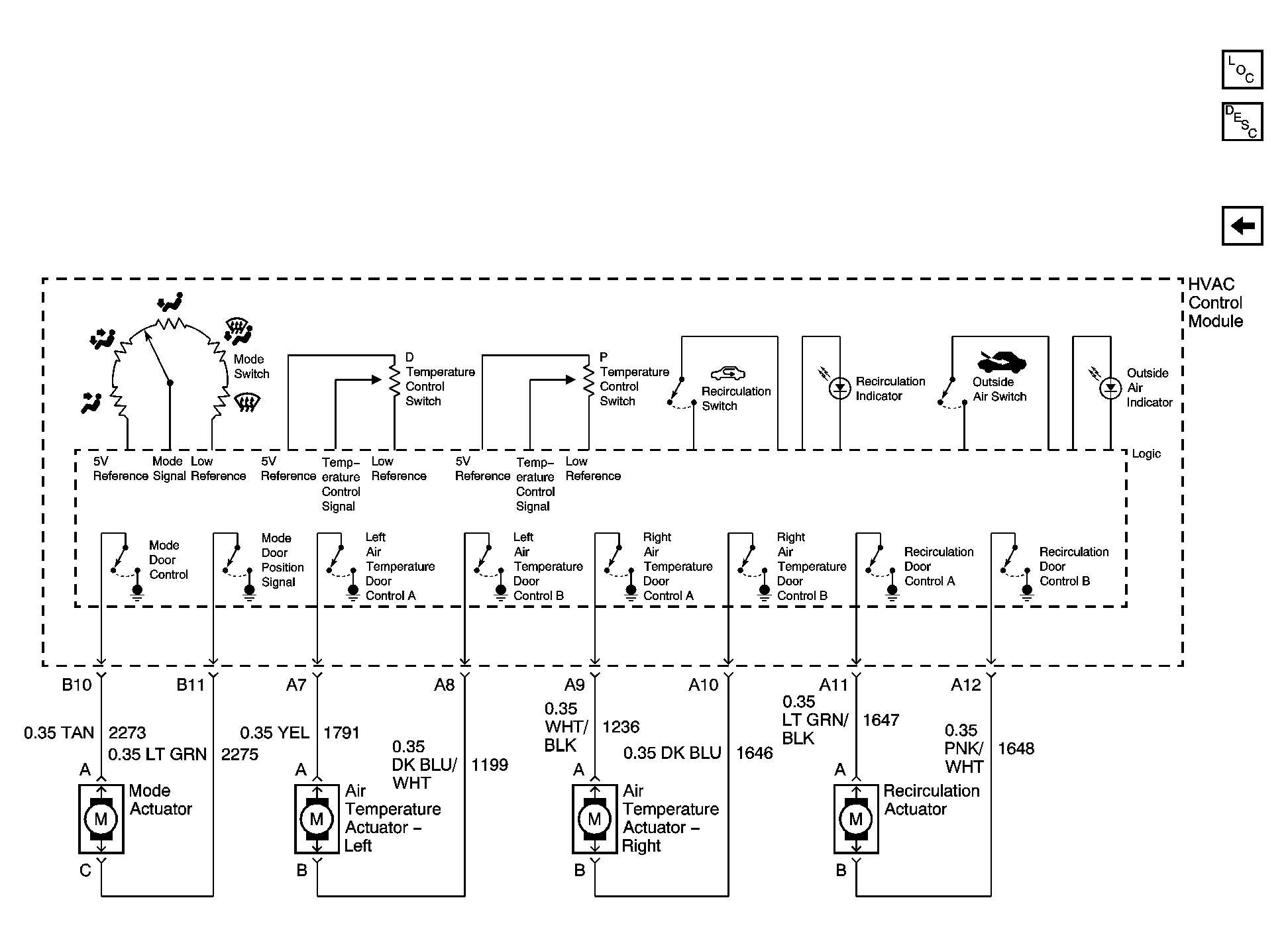

Fig 3: Mode & Air Temperature Controls Schematic
GM1243991Courtesy of GENERAL MOTORS CORP.
