Power Sunroof Schematics

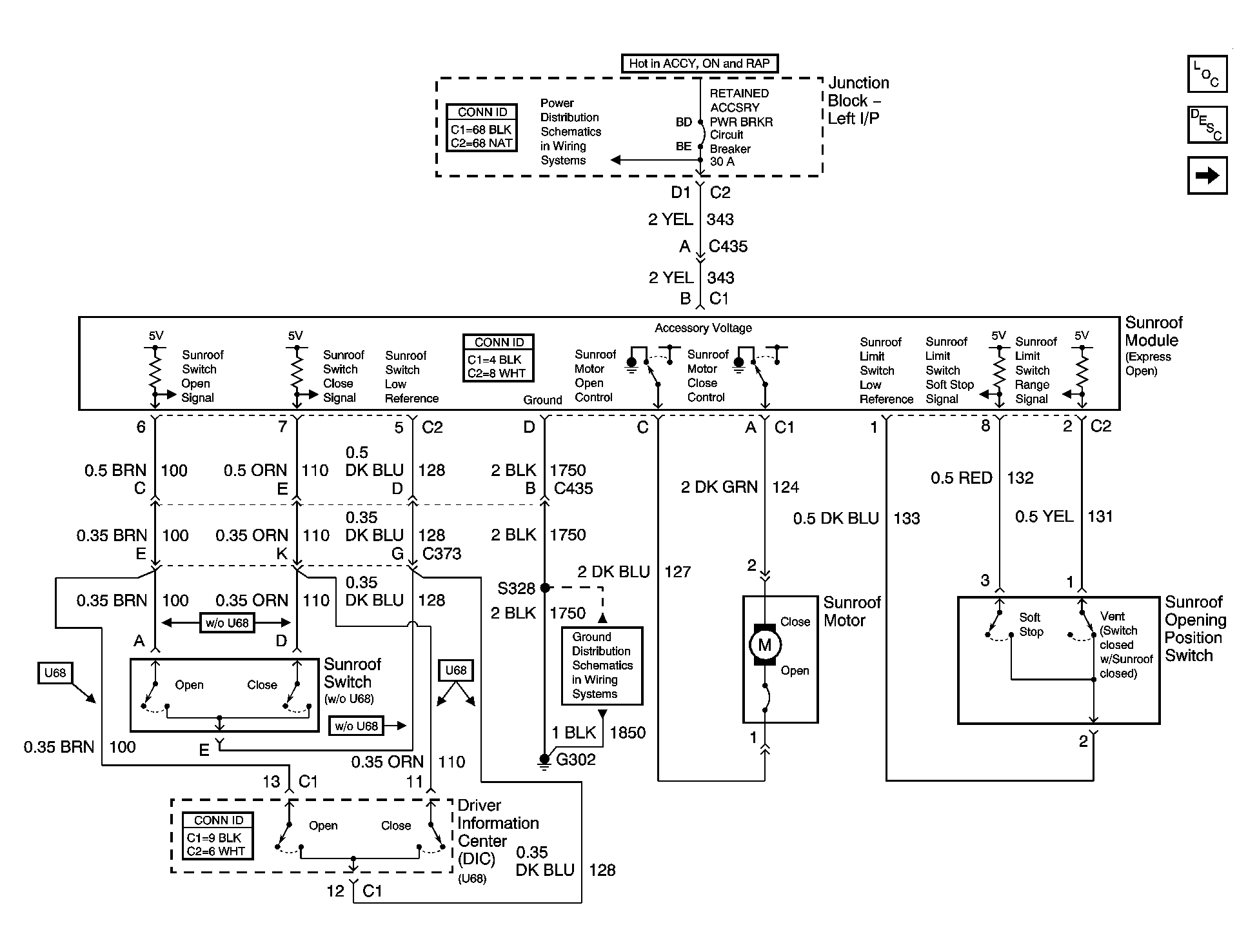

Fig 1: 2-Connector System - Early

GM1546517

Courtesy of GENERAL MOTORS CORP.

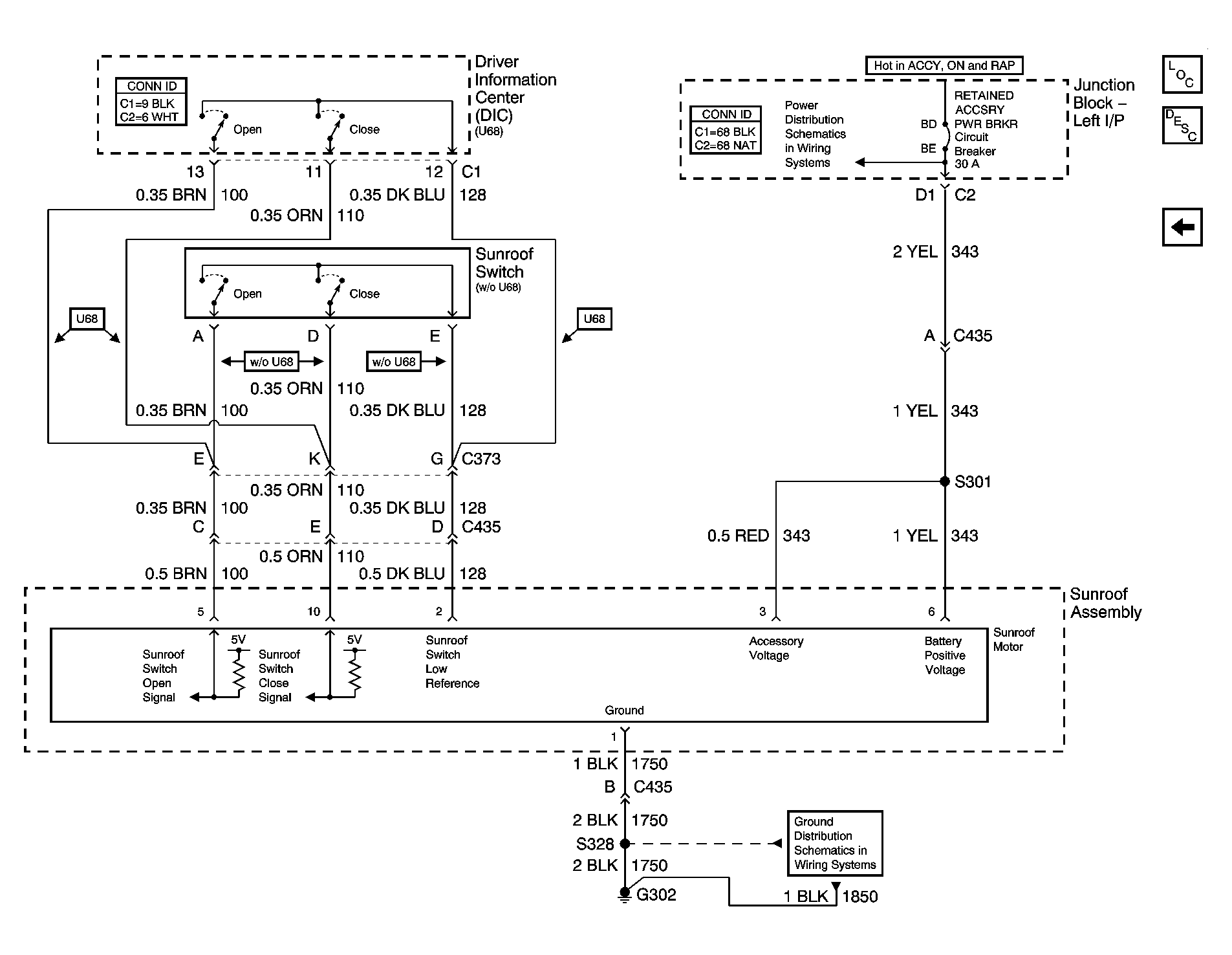

Fig 2: MDIV System - Late

GM1546521

Courtesy of GENERAL MOTORS CORP.
