Interior Lights Schematics

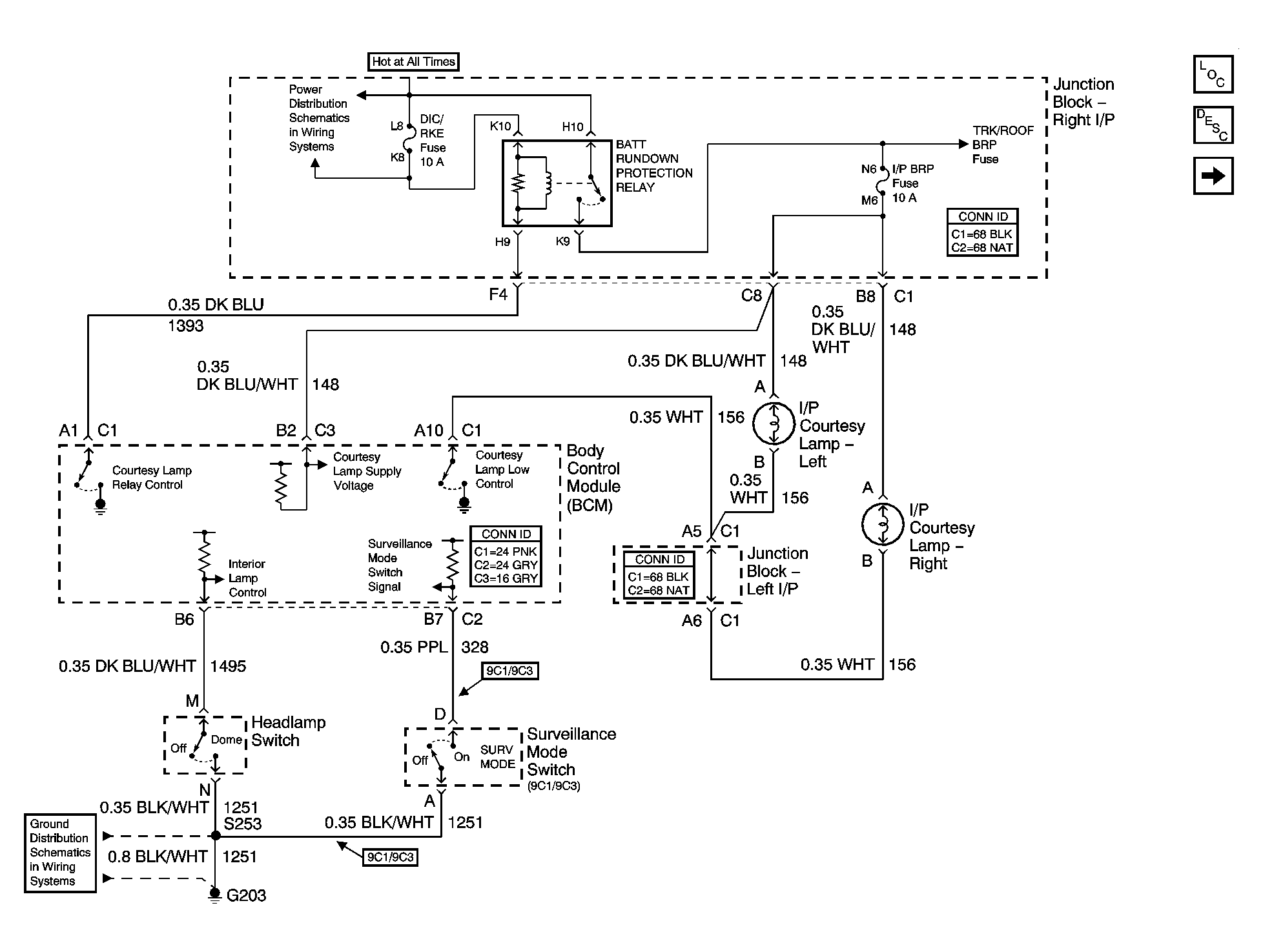

Fig 1: Courtesy Lamps Control And I/P
GM1324751Courtesy of GENERAL MOTORS CORP.

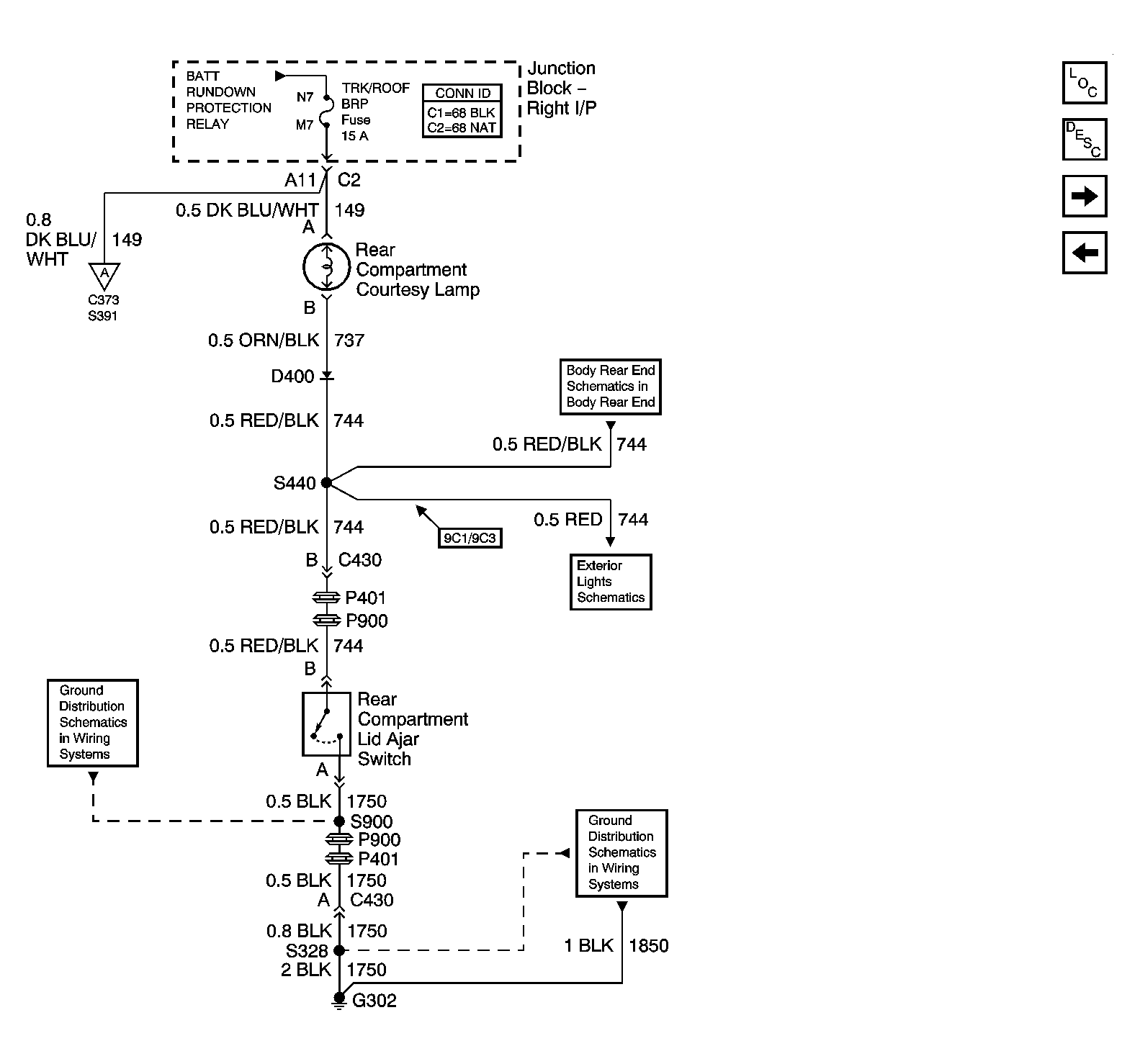

Fig 2: Rear Compartment
GM1551550Courtesy of GENERAL MOTORS CORP.
Fig 3: Roof Lighting
GM798560Courtesy of GENERAL MOTORS CORP.
Fig 4: Door Open Switches (Left)
GM789084Courtesy of GENERAL MOTORS CORP.
Fig 5: Door Open Switches (Right)
GM727526Courtesy of GENERAL MOTORS CORP.
