Interior Lights Dimming Schematics

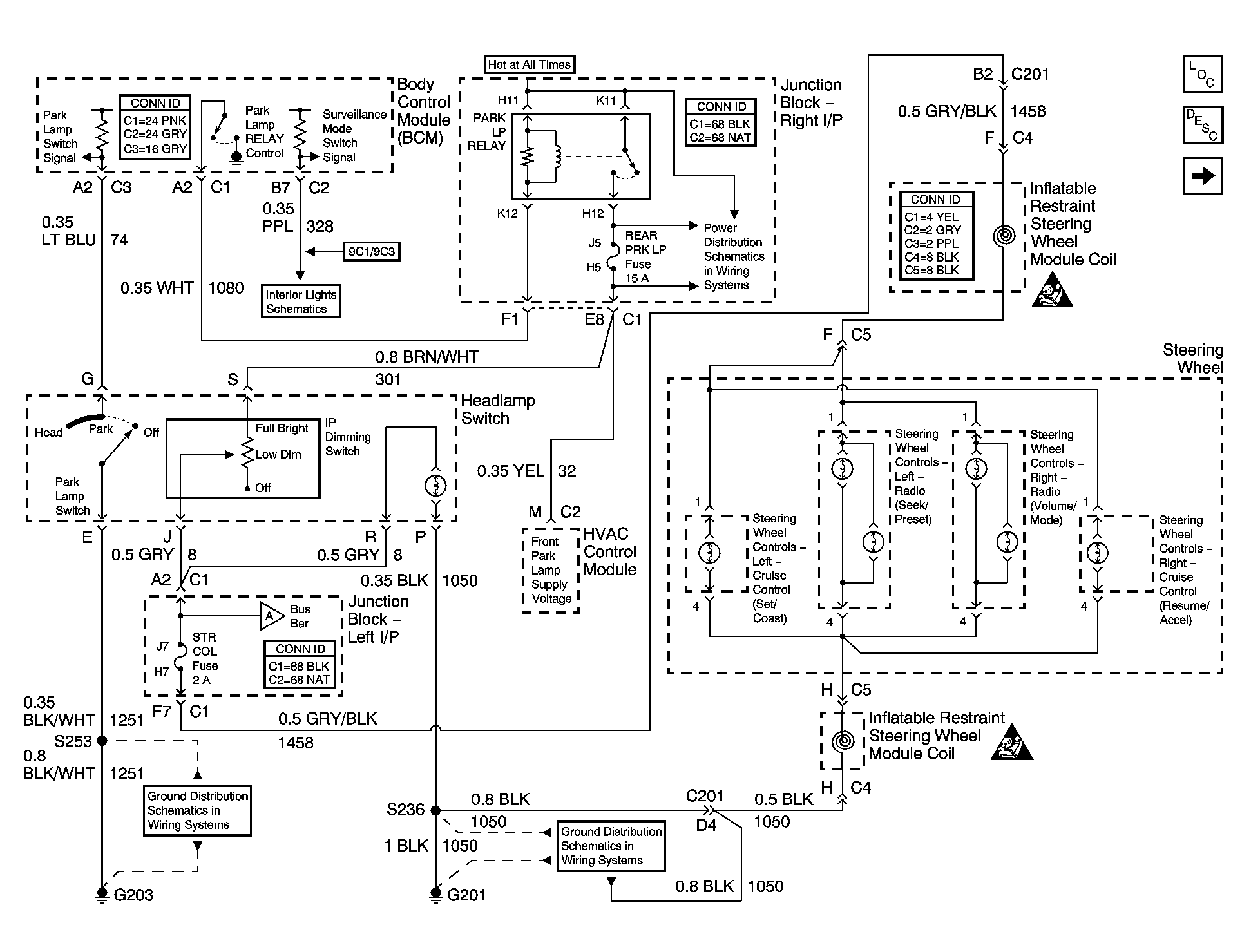

Fig 1: Dimming Control And Steering Wheel Controls
GM1551554Courtesy of GENERAL MOTORS CORP.

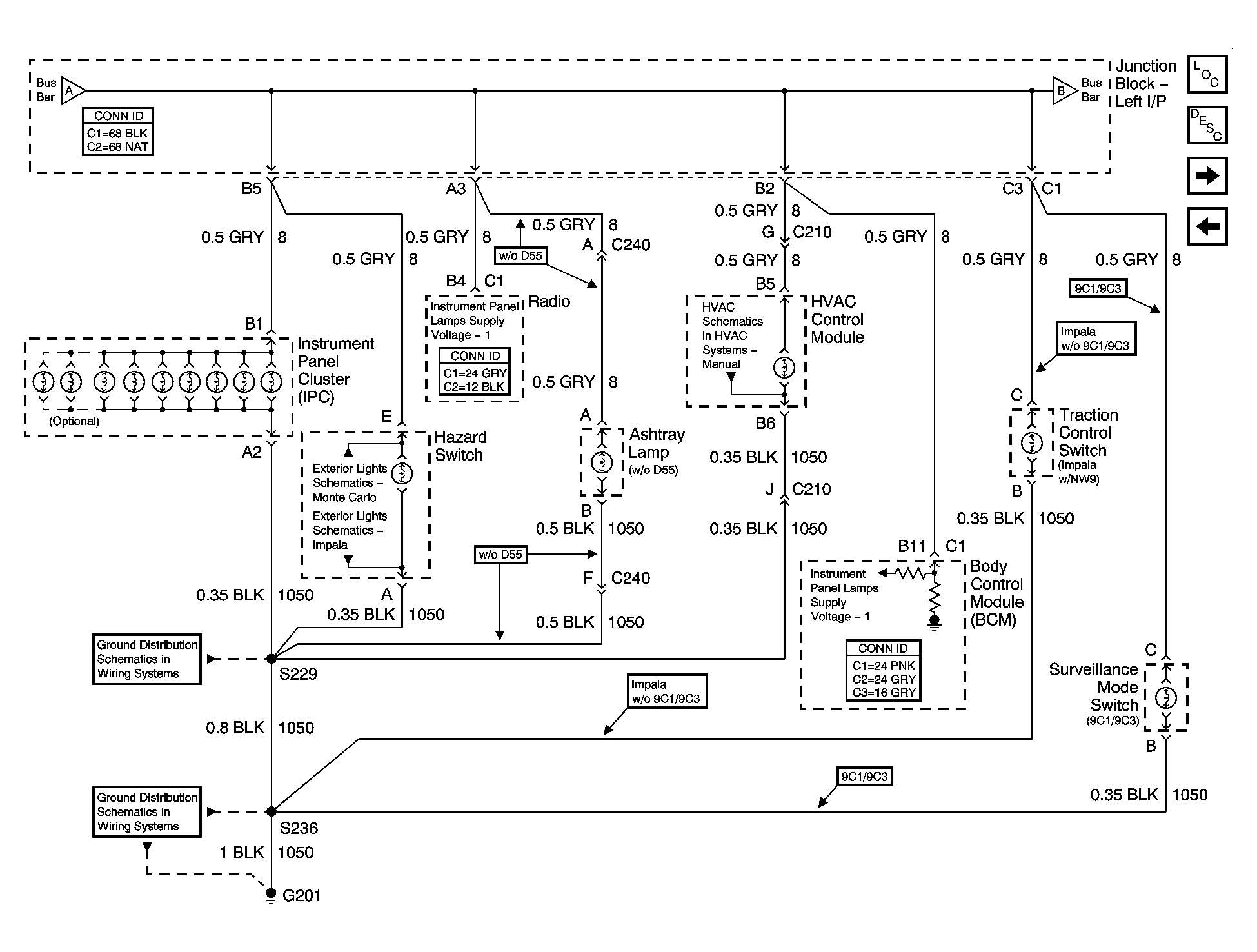

Fig 2: Instrument Panel (I/P)
GM1325775Courtesy of GENERAL MOTORS CORP.

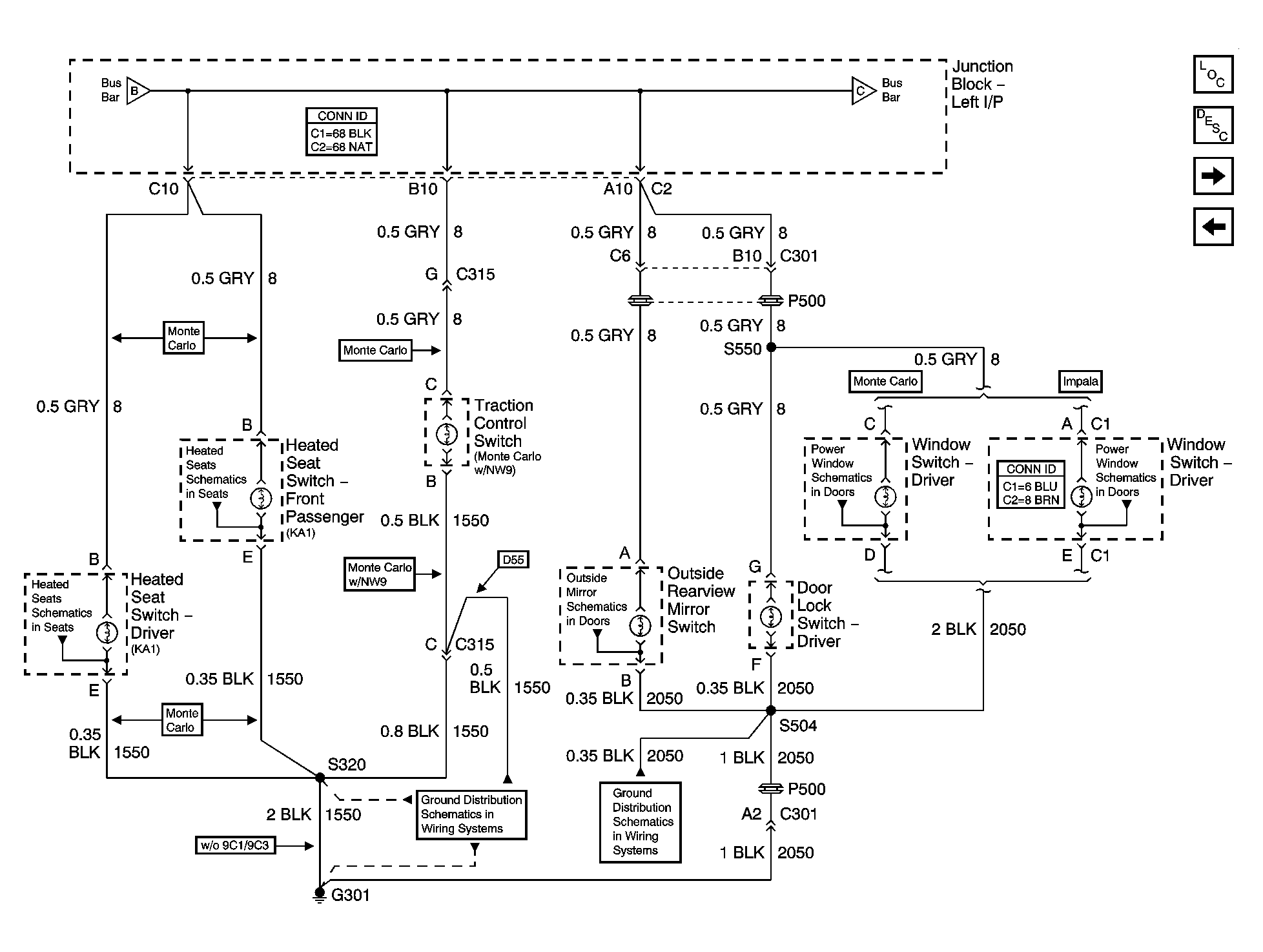

Fig 3: Console And Driver Door
GM1551556Courtesy of GENERAL MOTORS CORP.

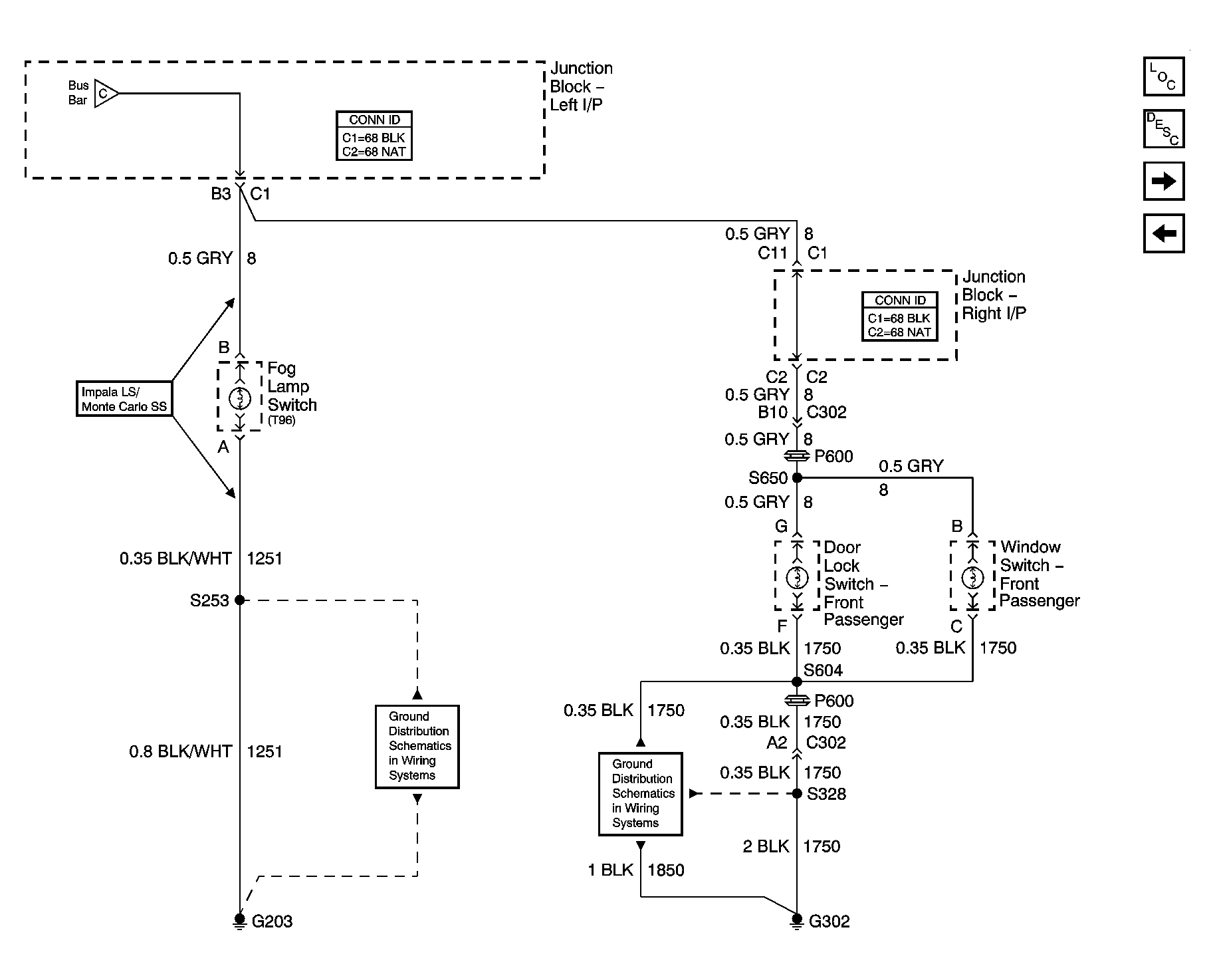

Fig 4: Fog Lamp Switch And Front Passenger Door
GM808834Courtesy of GENERAL MOTORS CORP.

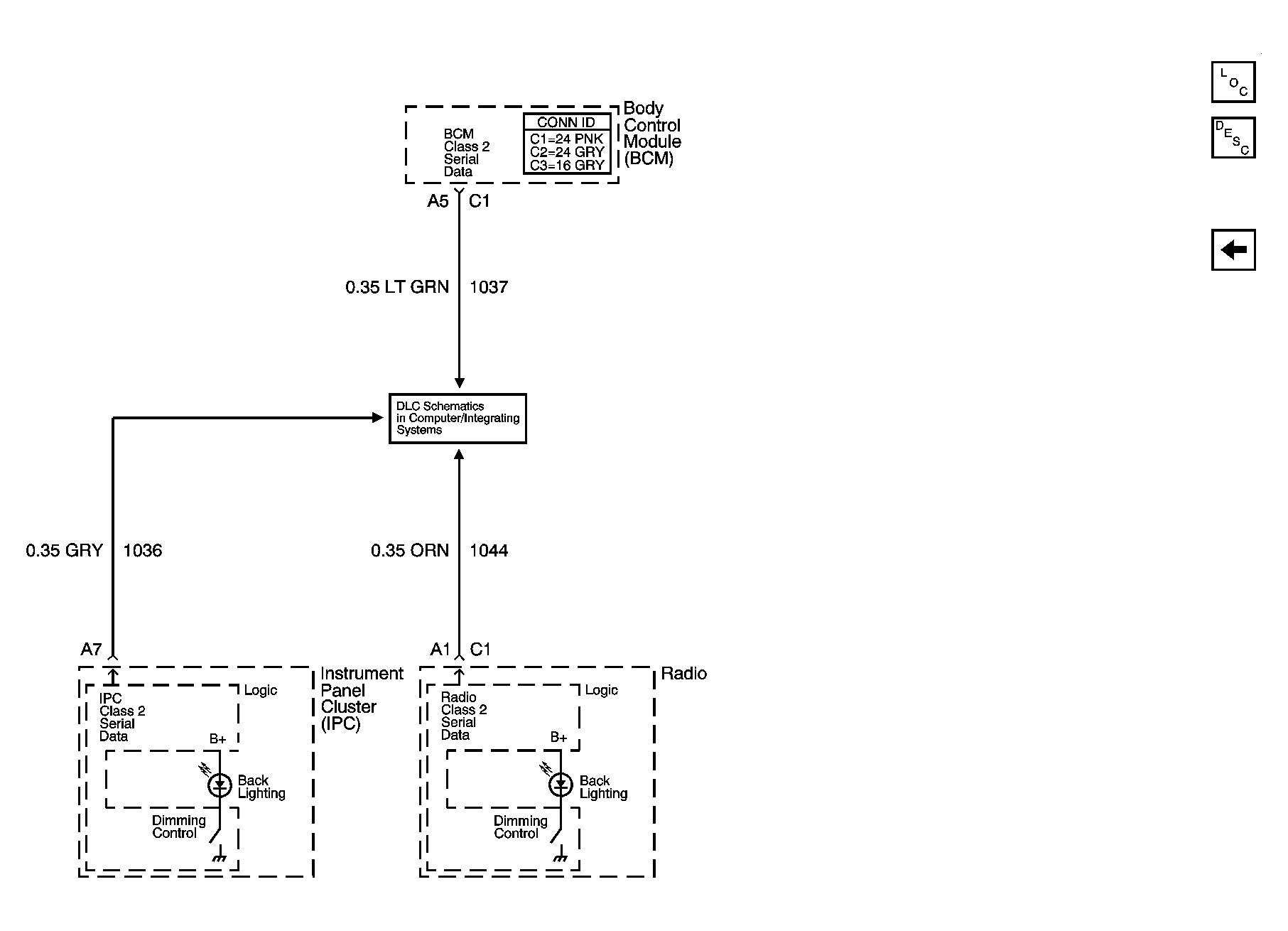

Fig 5: Class 2 Dimming
GM1551557Courtesy of GENERAL MOTORS CORP.
