Cruise Control Schematics

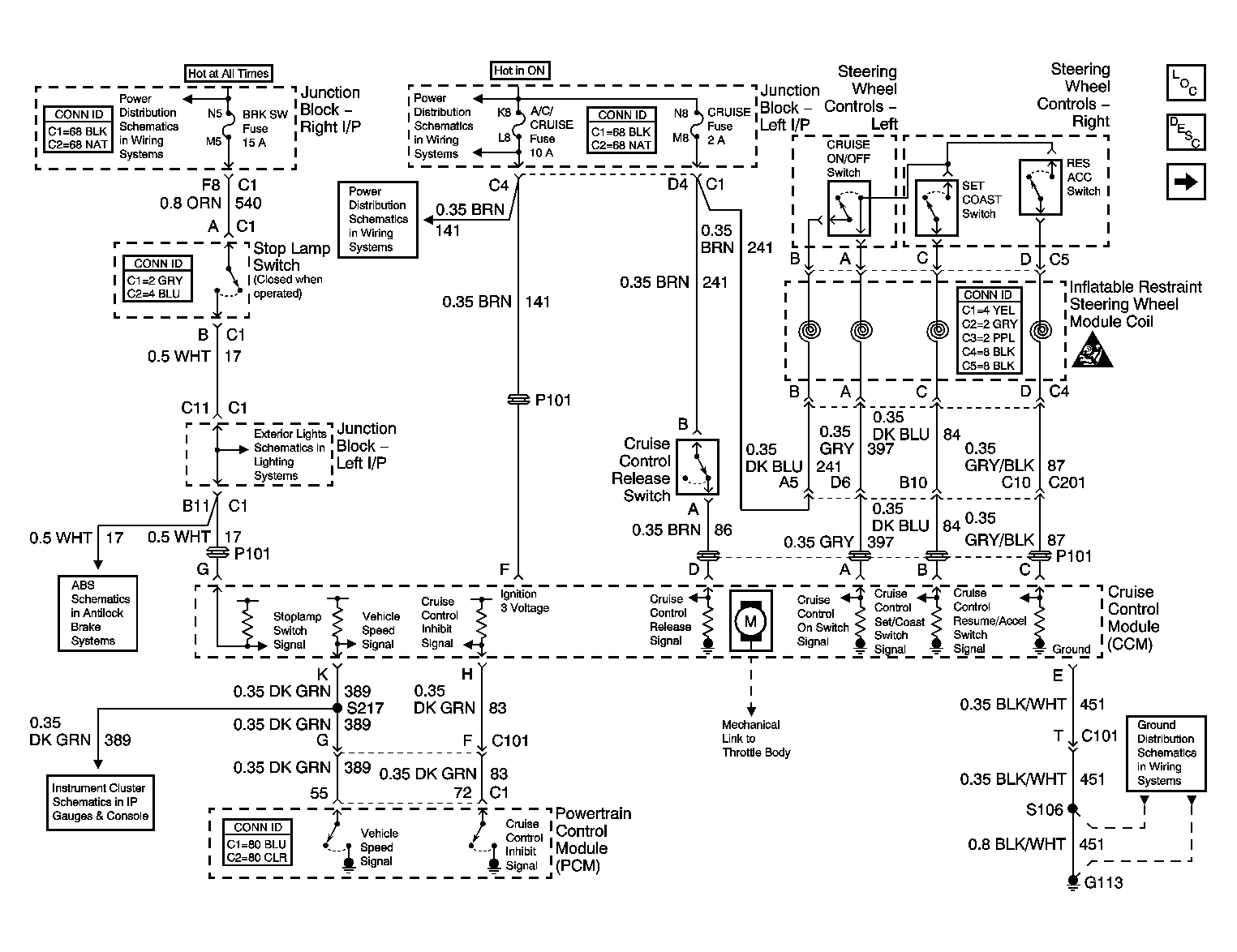

Fig 1: Monte Carlo Cruise Control Schematics
GM693003Courtesy of GENERAL MOTORS CORP.

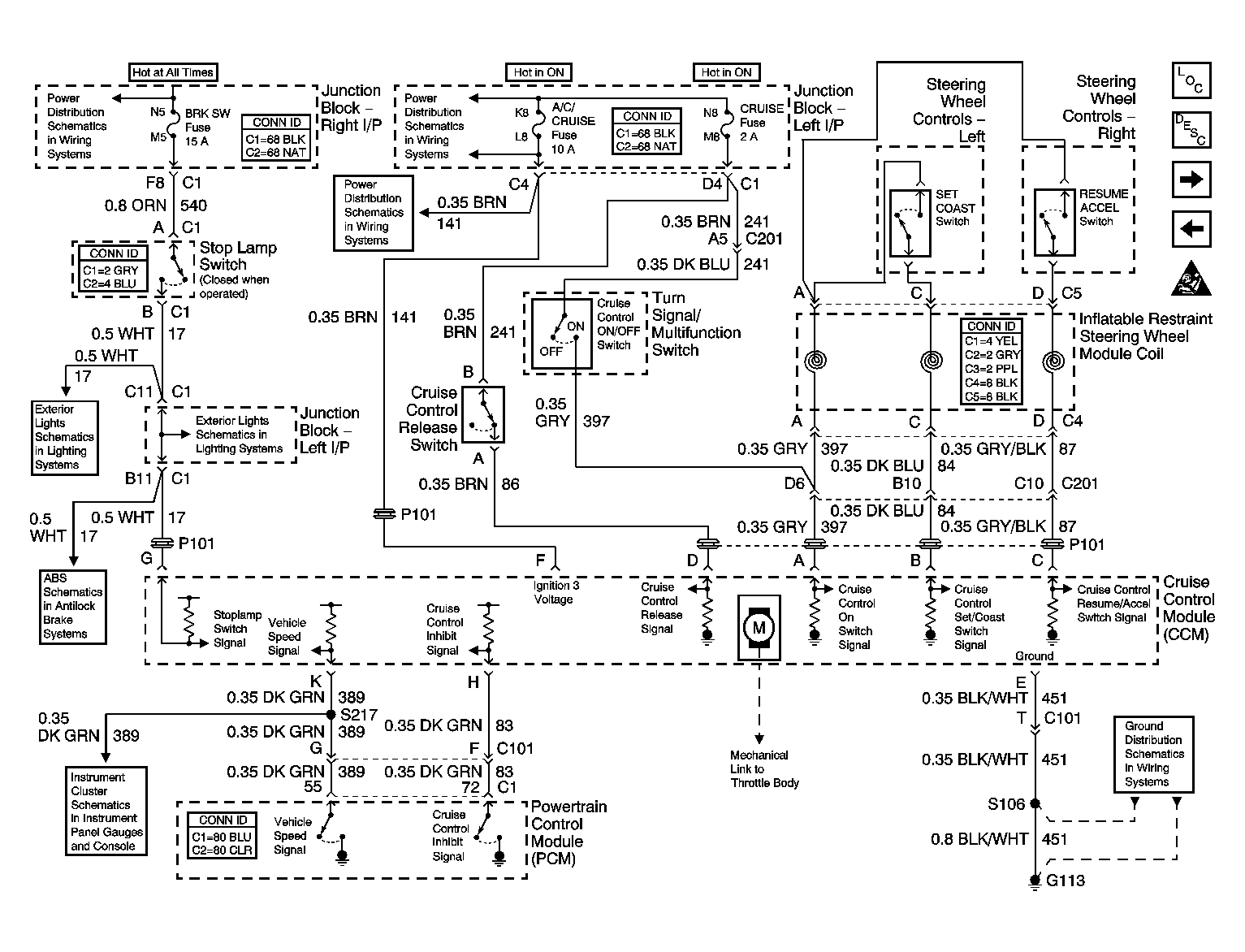

Fig 2: Impala Cruise Control Schematics
GM678937Courtesy of GENERAL MOTORS CORP.
Fig 3: Indicator Control Schematics
GM1551837Courtesy of GENERAL MOTORS CORP.
