Schematic and Routing Diagrams
>>
Power Steering System Schematics
Power Steering System Schematics

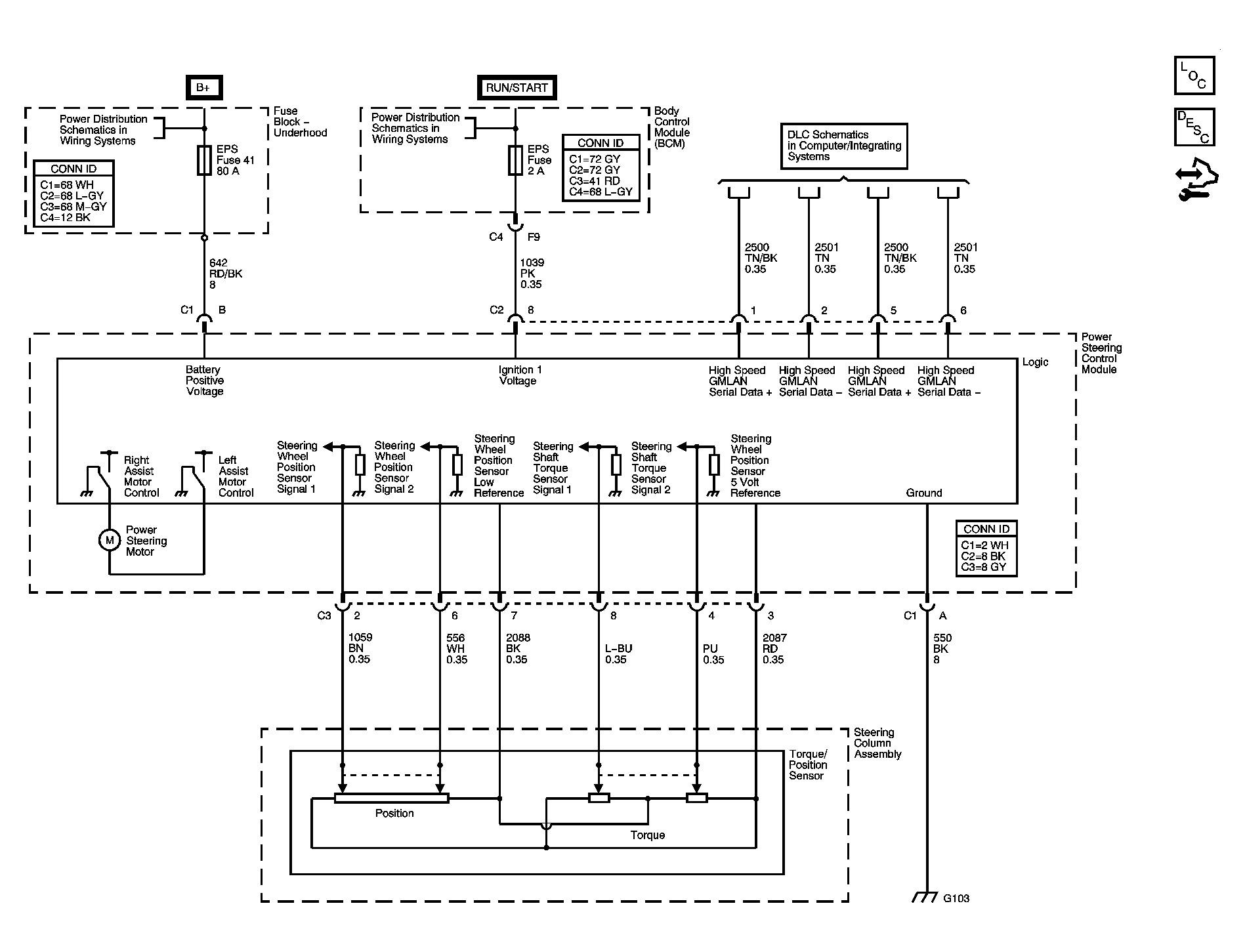

Fig 1: Power Steering System
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
