HVAC Schematics

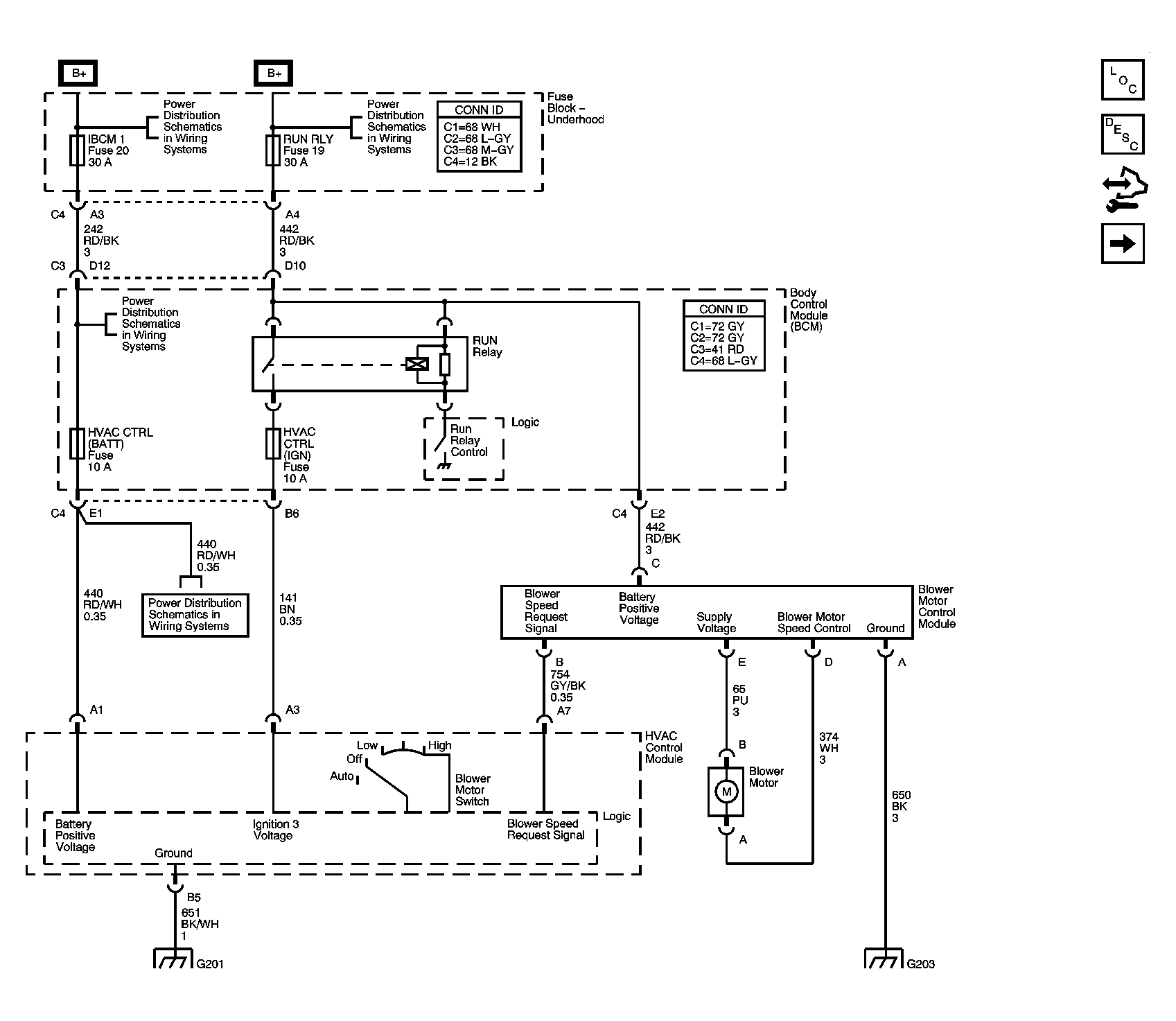

Fig 1: Power, Ground, A/C Compressor Clutch and Blower Motor Controls

GM1501033

Courtesy of GENERAL MOTORS CORP.

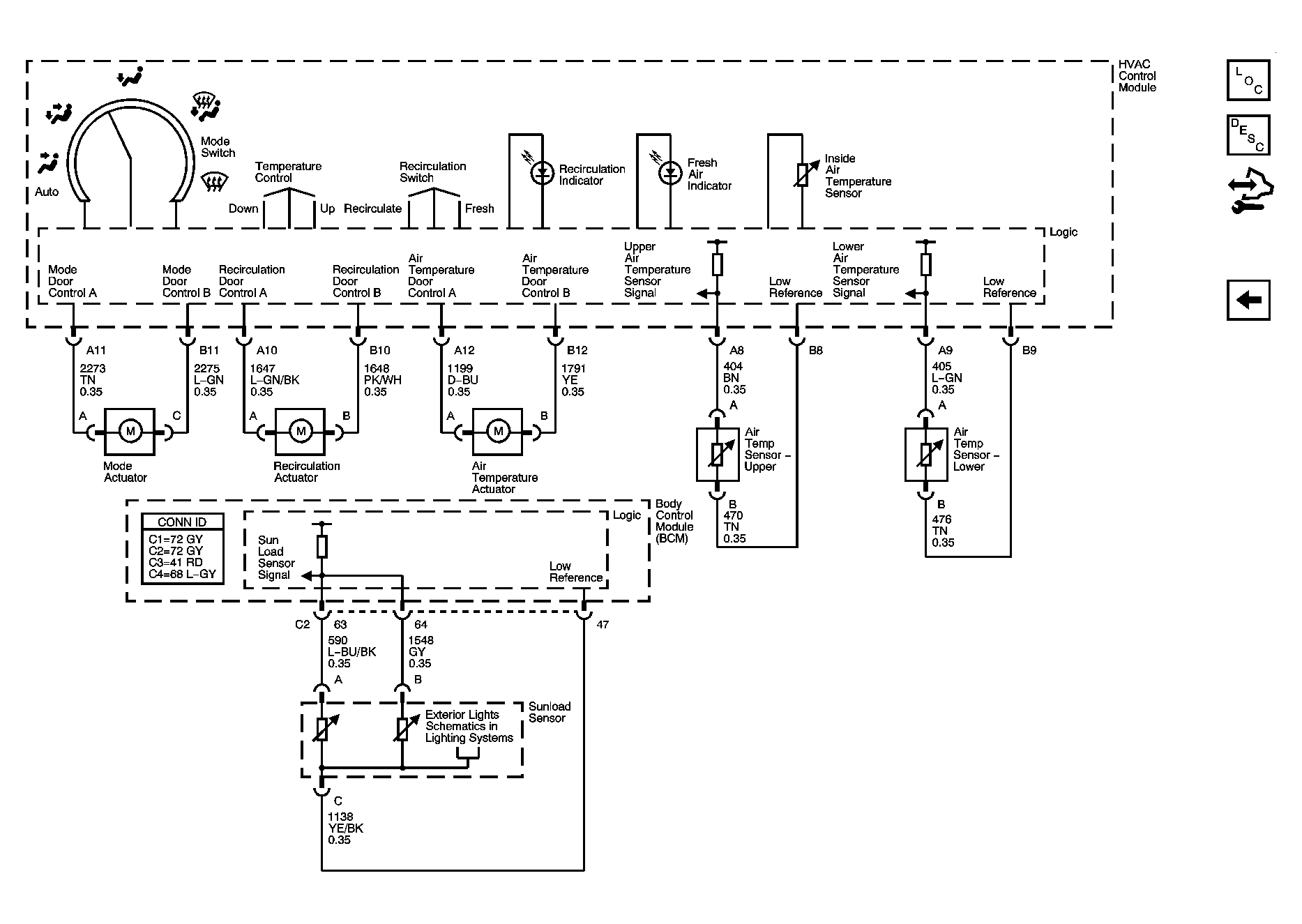

Fig 2: Mode and Air Temperature Controls

GM1501036

Courtesy of GENERAL MOTORS CORP.
