Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Use a floor jack and a block of wood to support the powertrain from the oil pan.
  2. Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement in Engine Controls 2.2L (L61).

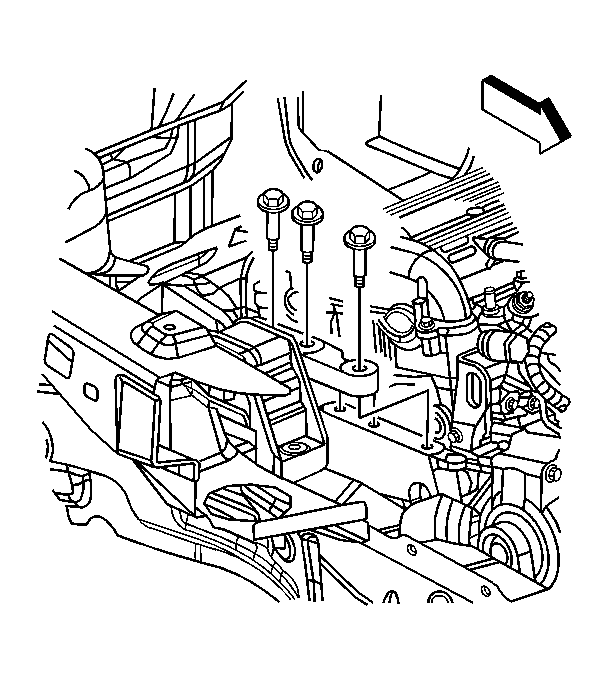

    3. Fig 1: Removing Engine Mount To Bracket Bolts
    GM1229782Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine mount to bracket bolts.
    4. Fig 2: Removing Engine Mount To Body Bolts
    GM1229774Courtesy of GENERAL MOTORS CORP.
  4. Remove the engine mount to body bolts.
  5. Remove the engine mount from the vehicle.
