Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the engine mount. Refer to Engine Mount Replacement .

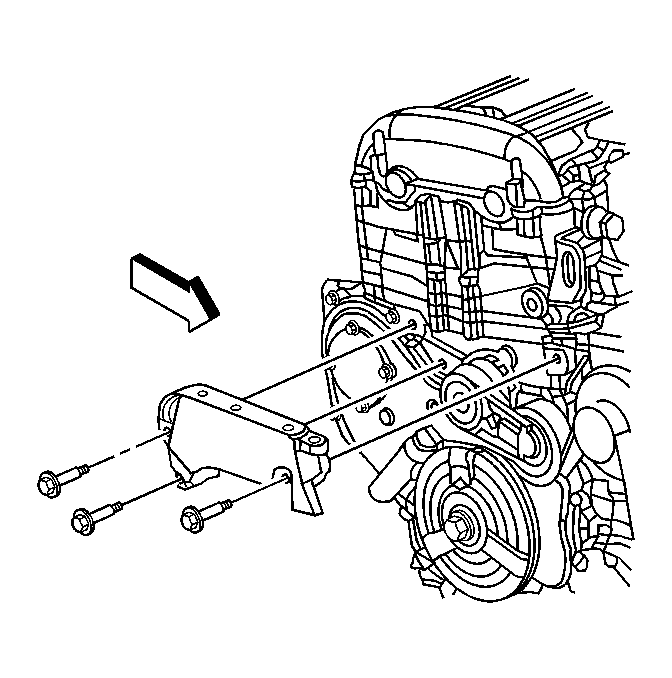

    2. Fig 1: Removing Intermediate Bracket To Engine Bolts
    GM1229780Courtesy of GENERAL MOTORS CORP.
  2. Remove the intermediate bracket to engine bolts.
  3. Remove the intermediate bracket from the engine.
