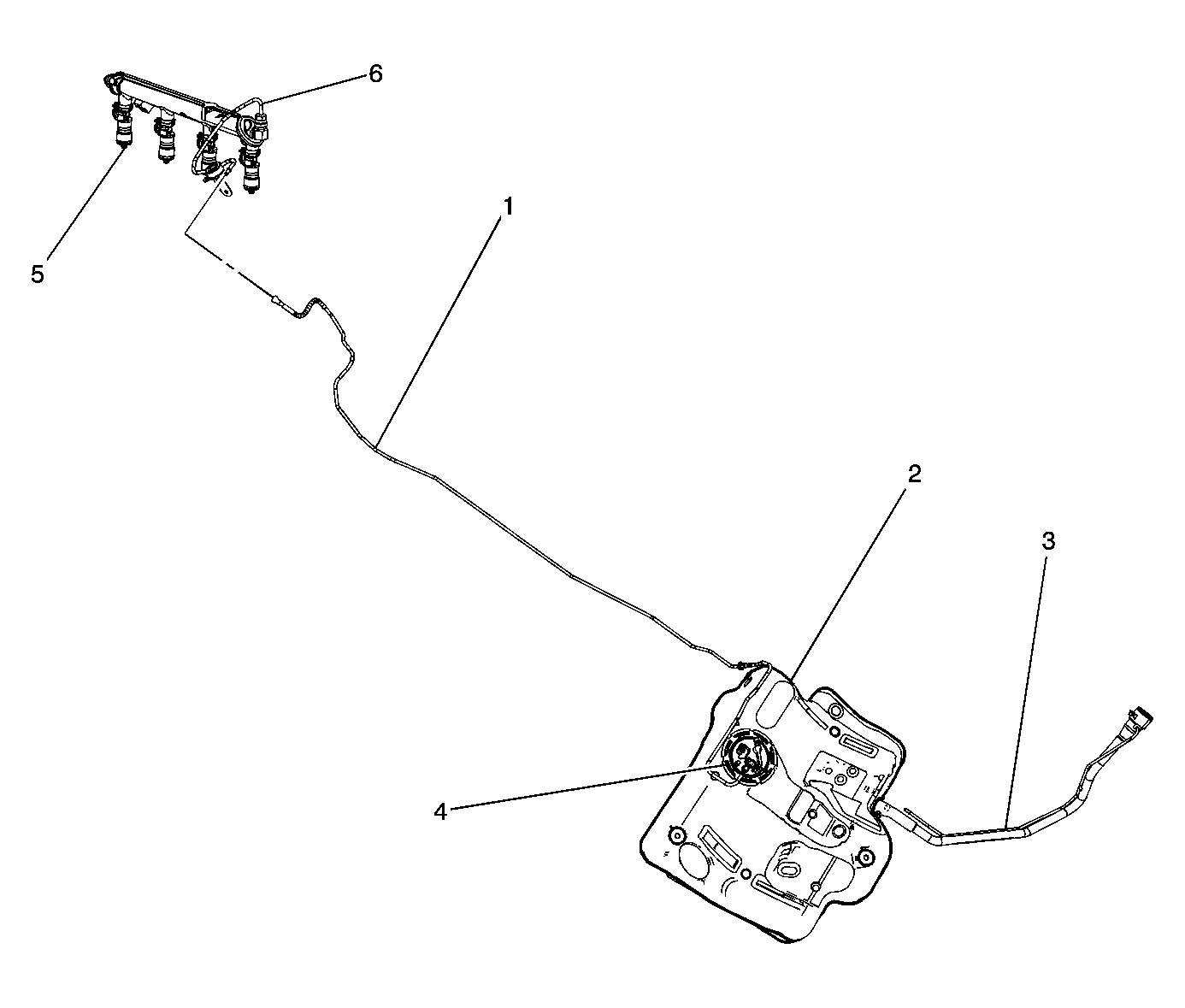

Fuel Hose/Pipes Routing Diagram
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Chassis Fuel Feed Pipe |
| 2 |
Fuel Tank |
| 3 |
Fuel Fill Pipe |
| 4 |
Fuel Sender Assembly |
| 5 |
Fuel Rail Assembly |
| 6 |
Engine Compartment Fuel Feed Pipe |
