Removal Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Disconnecting Evaporative Emission (EVAP) Canister Purge Valve Harness Connector
    GM1238964Courtesy of GENERAL MOTORS CORP.
  1. Disconnect the evaporative emission (EVAP) canister purge valve harness connector.
  2. Disconnect the vacuum pipe from the EVAP canister purge valve.
  3. Disconnect the purge pipe from the EVAP canister purge valve.

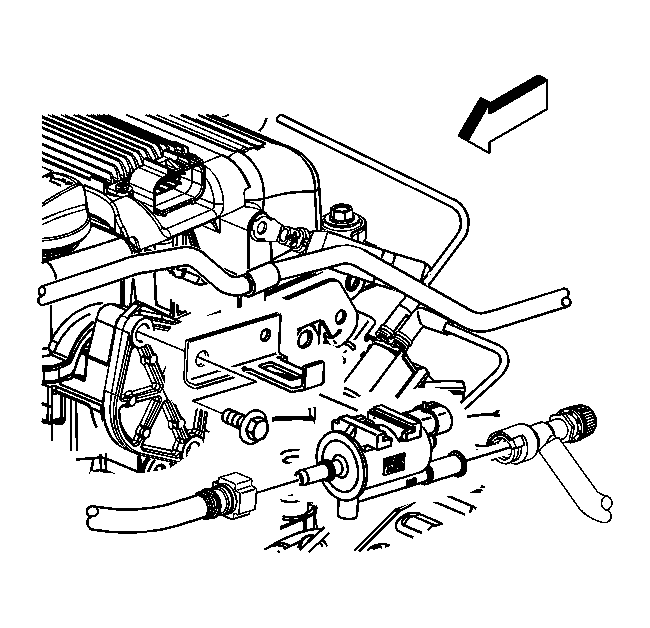

    4. Fig 2: View Of EVAP Canister Purge Valve
    GM857194Courtesy of GENERAL MOTORS CORP.
  4. Remove the EVAP canister purge valve and bracket.
  5. Remove the EVAP canister purge valve from the purge bracket.
  6. Inspect for carbon release in the EVAP canister purge valve ports. If there is any loose carbon, replace the EVAP canister and any components necessary to remove the carbon particles.
