Removal Procedure

WARNING: This page is about a different variant/trim than selected.

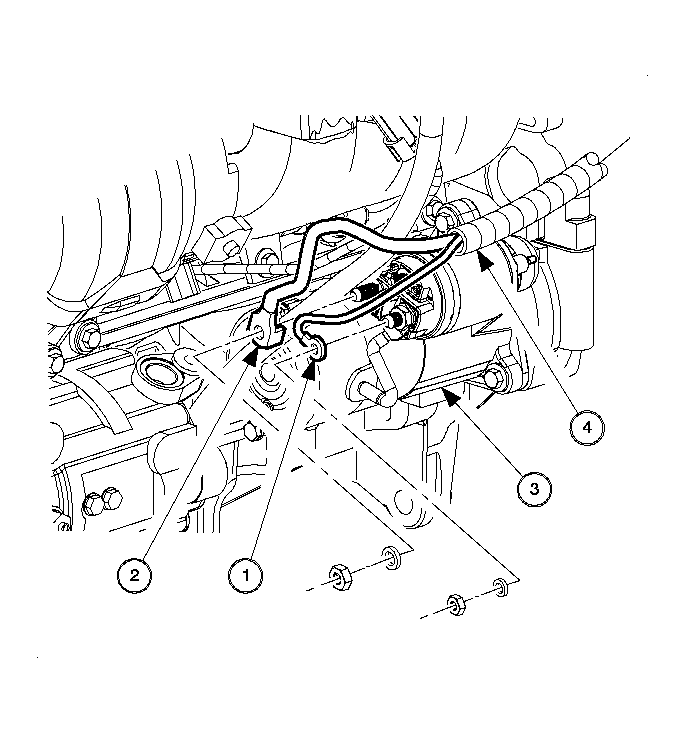

    Fig 1: Removing Starter Motor
    GM895892Courtesy of GENERAL MOTORS CORP.
  1. Record the preset radio stations.
  2. Turn the ignition OFF.
  3. Disconnect the negative battery cable.
    • Engine Harness Connection (1).
    • Battery Feed (2).
    • Starter Motor (3).
    • Starter Solenoid (4).
    4. CAUTION: Ensure that the vehicle is properly supported and squarely positioned. To help avoid personal injury when a vehicle is on a hoist, provide additional support for the vehicle on the opposite end from which the components are being removed.
  4. Raise the vehicle.
  5. Remove the 2 starter solenoid harness connector attachment nuts.
  6. Remove the lower starter assembly to the engine block bolt.
  7. Remove the upper starter assembly to the engine block bolt.
  8. Move the starter right to clear the engine block, then left to remove the starter from the flywheel housing.
  9. Disconnect the CKP sensor harness connector.
  10. Remove the CKP sensor attachment bolt and the CKP sensor.
