Power Distribution Schematics

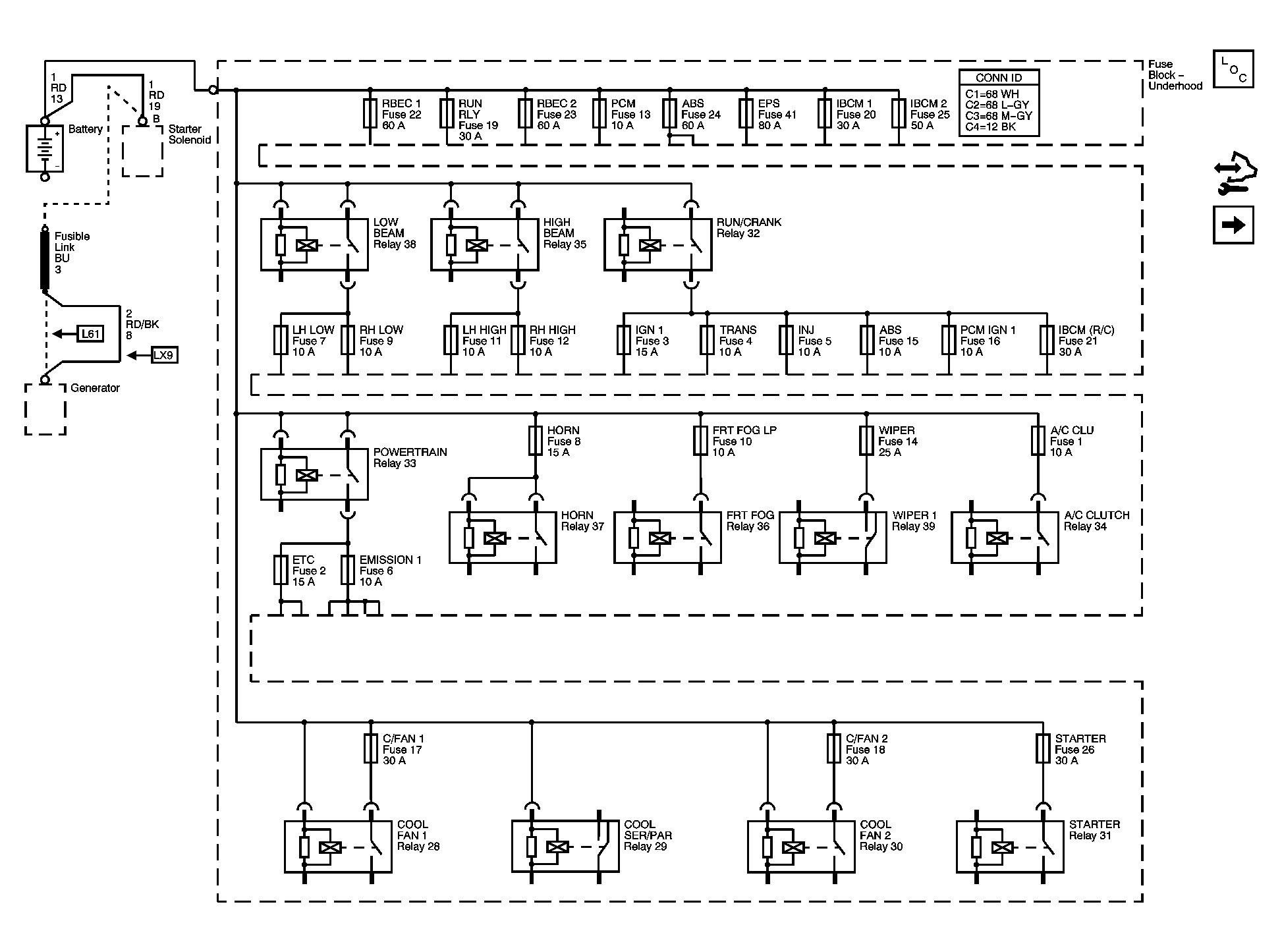

Fig 1: B+ Bussing

Courtesy of GENERAL MOTORS CORP.

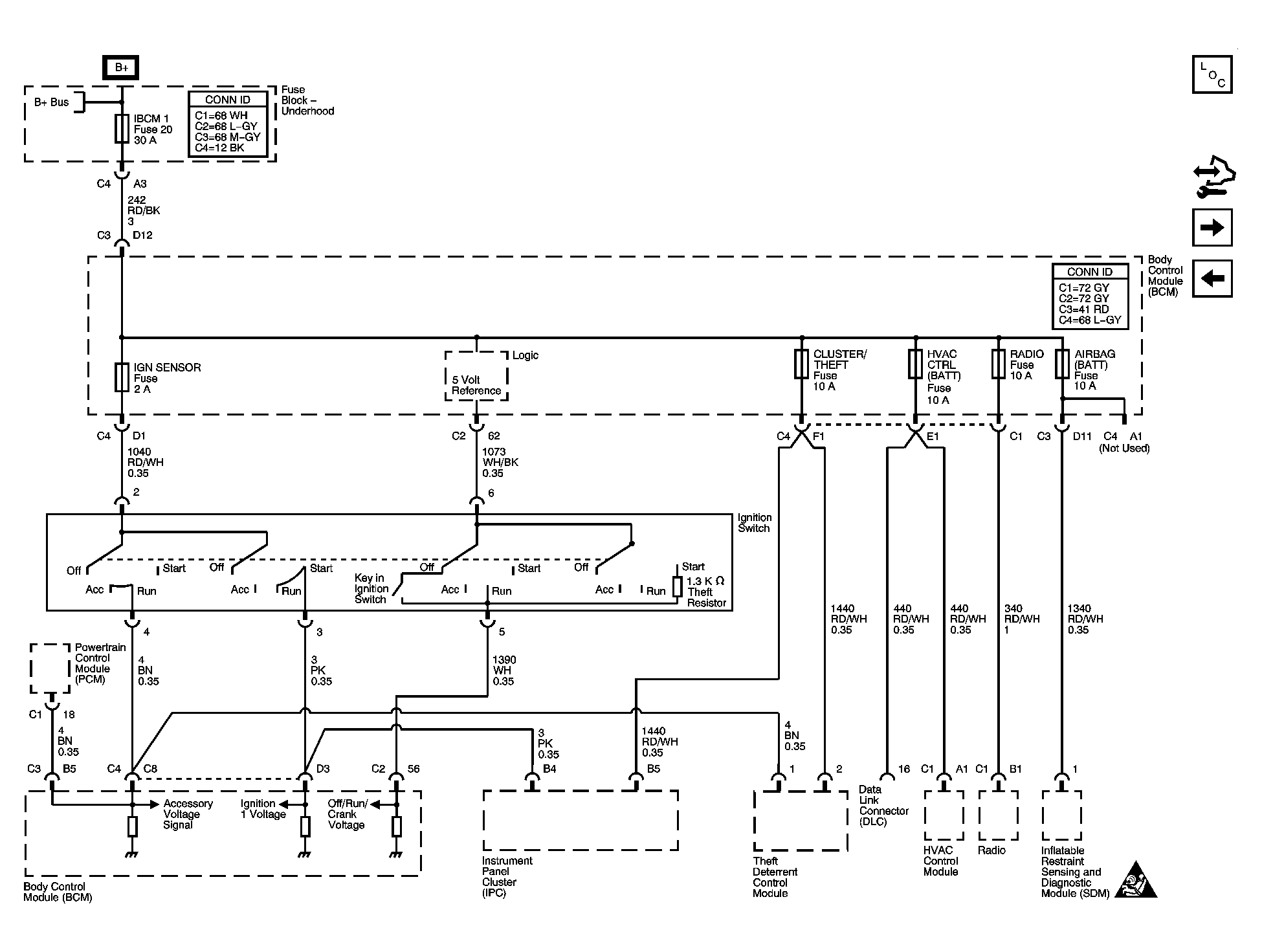

Fig 2: Underhood Junction Block - IBCM Batt 1, BCM - Radio/RFA, Ignition Sensor, HVAC BATT, Cluster/Theft, Air Bag Batt Fuses

Courtesy of GENERAL MOTORS CORP.

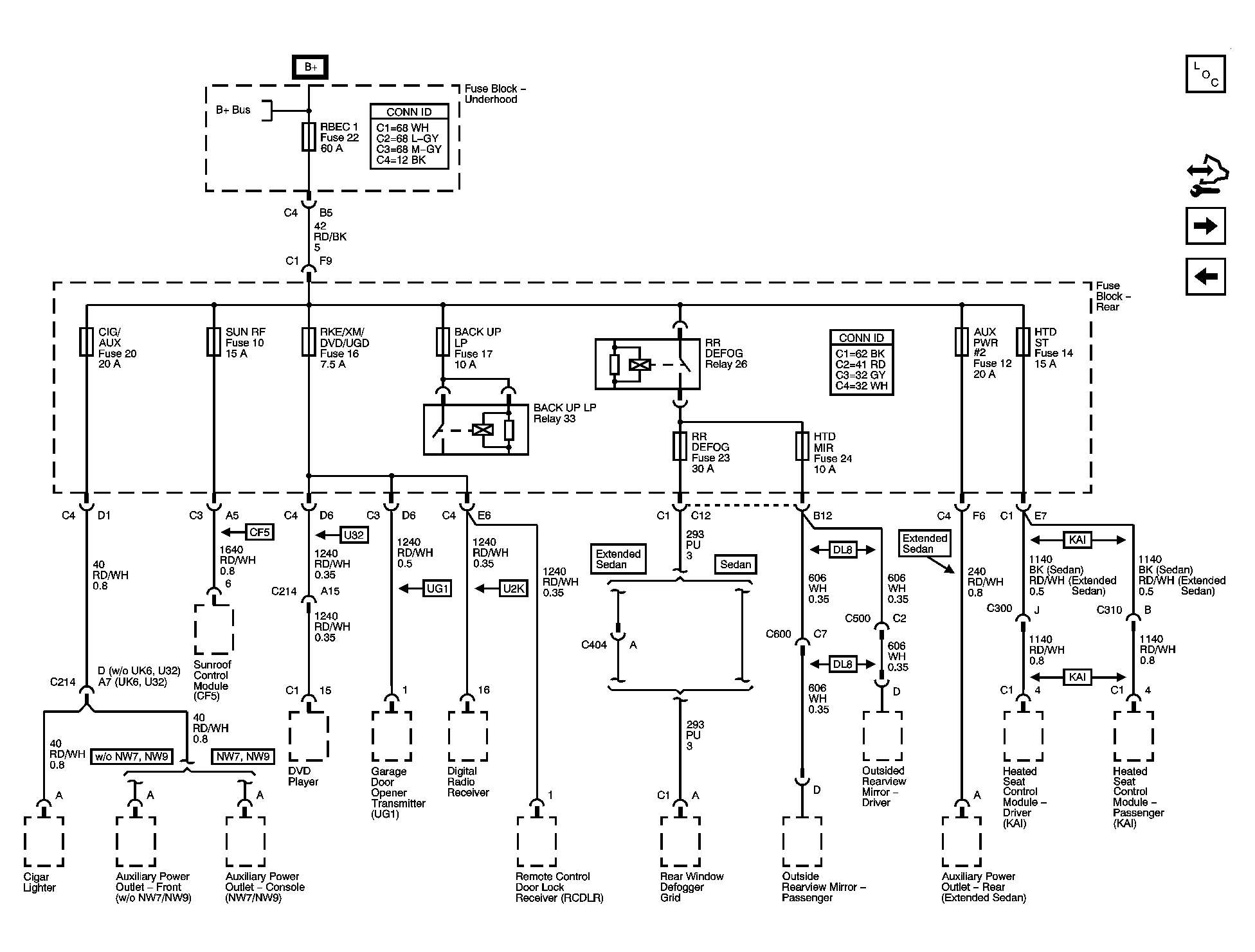

Fig 3: Underhood Fuse Block - RBEC Fuse, Rear Fuse Block - Cigar/Aux Power, Sunroof, RKE/XM/DVD/UGD, Stop Lp, Rear Defog, HTD Mirror, AUX PWR, HTD Seat Fuses

Courtesy of GENERAL MOTORS CORP.

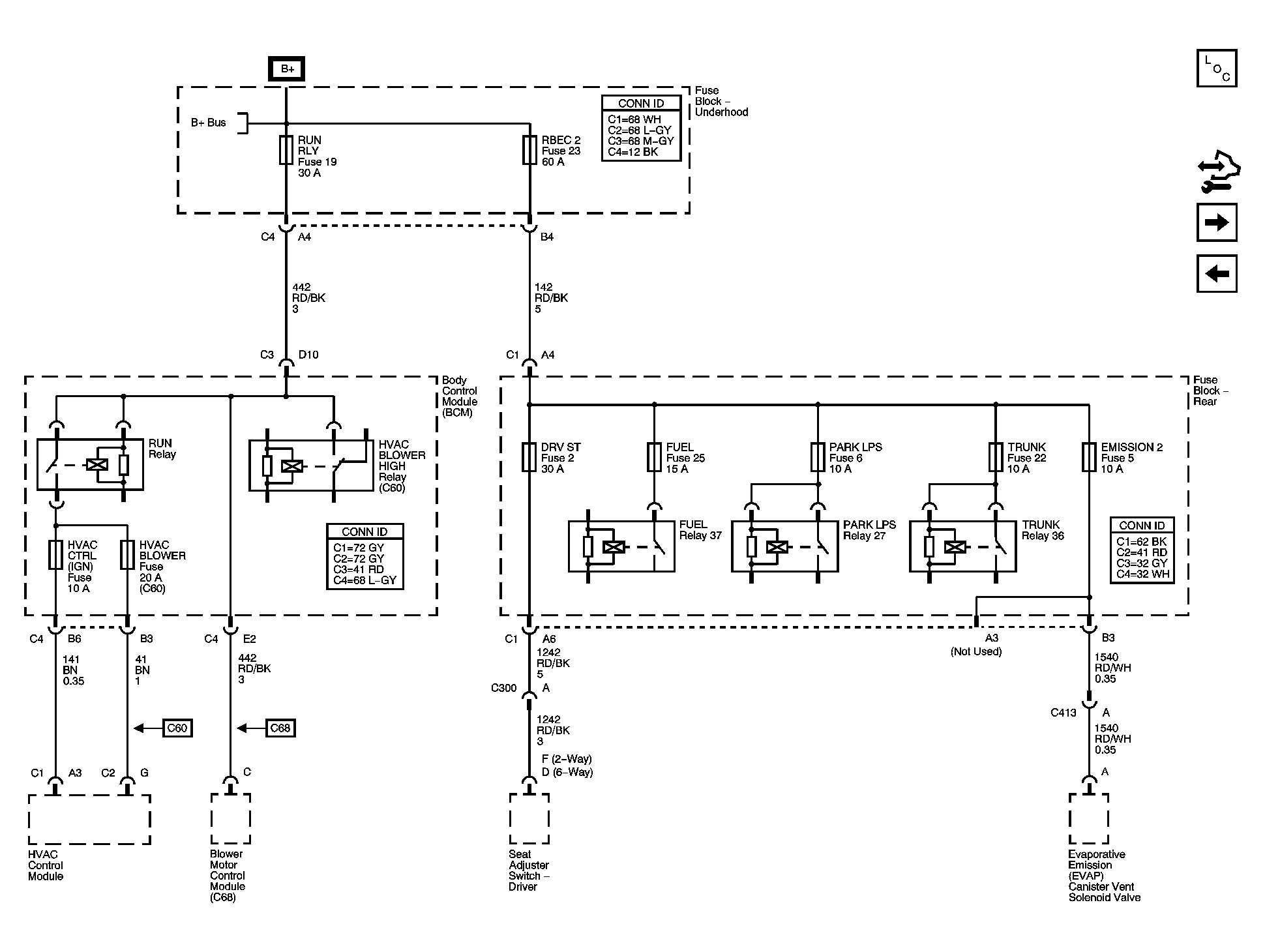

Fig 4: Underhood Fuse Block - Run Relay, RBEC Batt 2 Fuses, Rear Fuse Block - Driver Pwr Seat, Fuel Pump, Park Lamps, Trunk Release, ERLS Fuses

Courtesy of GENERAL MOTORS CORP.

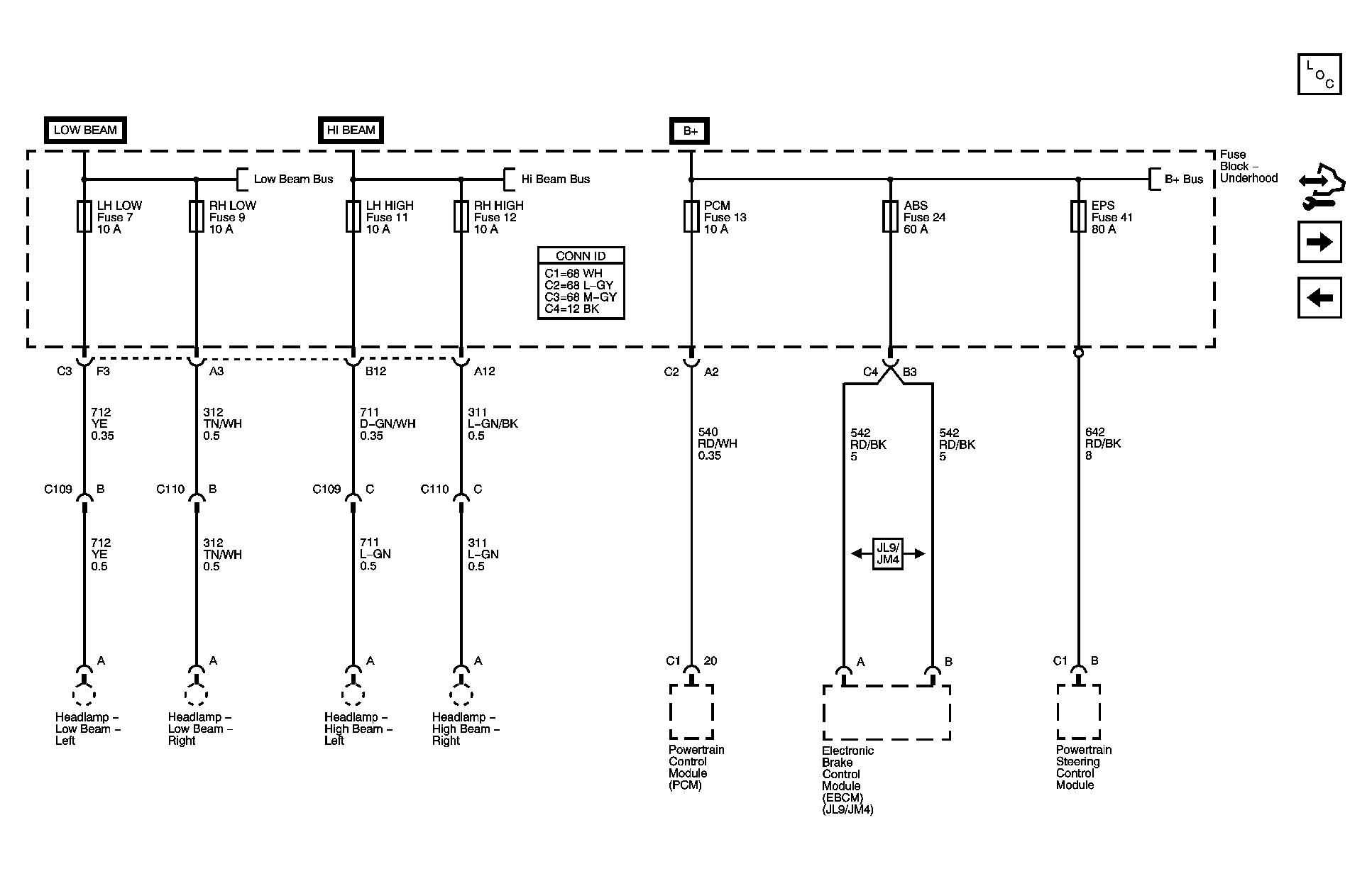

Fig 5: PCM Batt, ABS, EPS, ICBM Batt 1, ICBM Batt 2 Fuses

Courtesy of GENERAL MOTORS CORP.

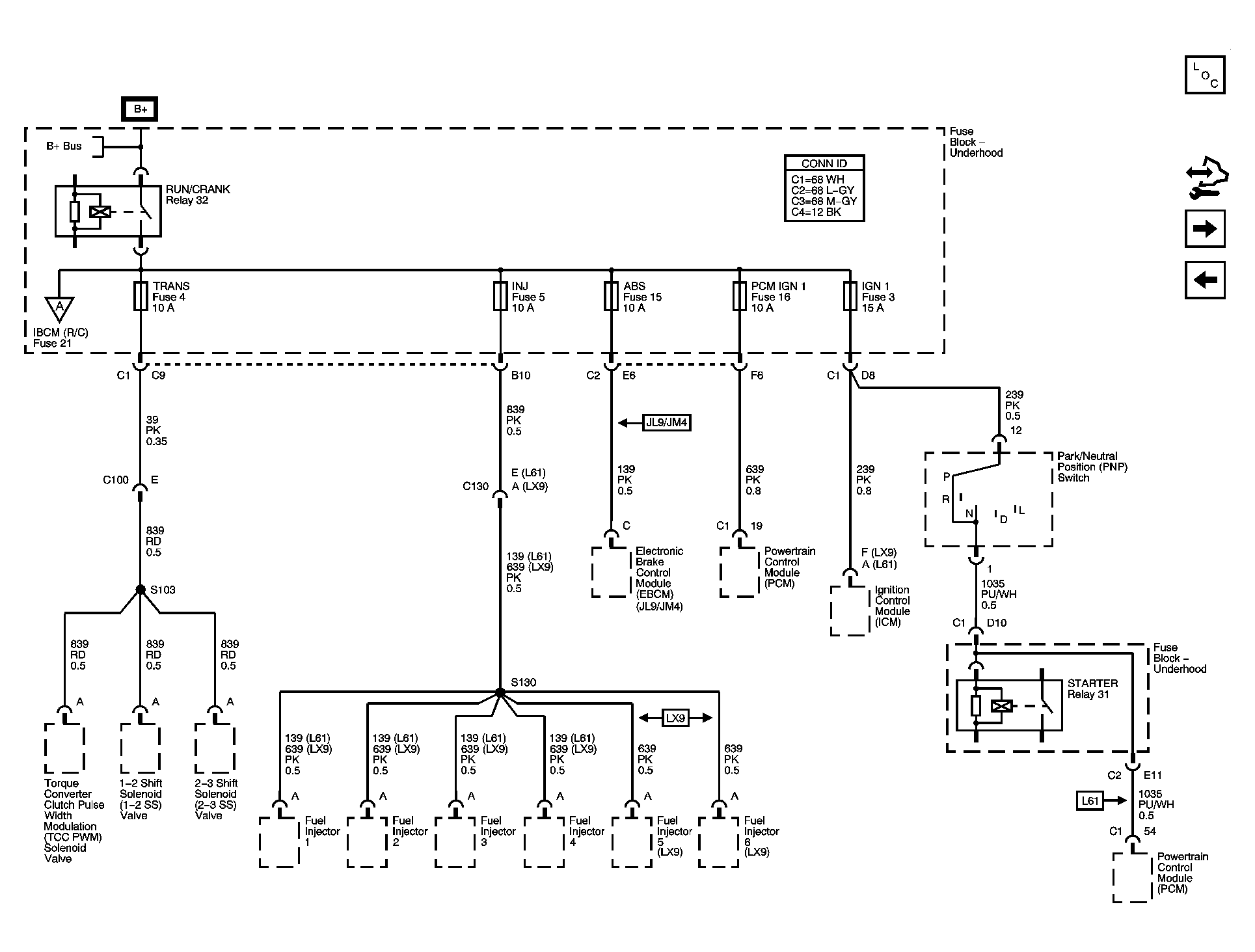

Fig 6: Run/Crank ICBM, Transmission, Injectors, ABS, PCM IGN, IGN Fuses

Courtesy of GENERAL MOTORS CORP.

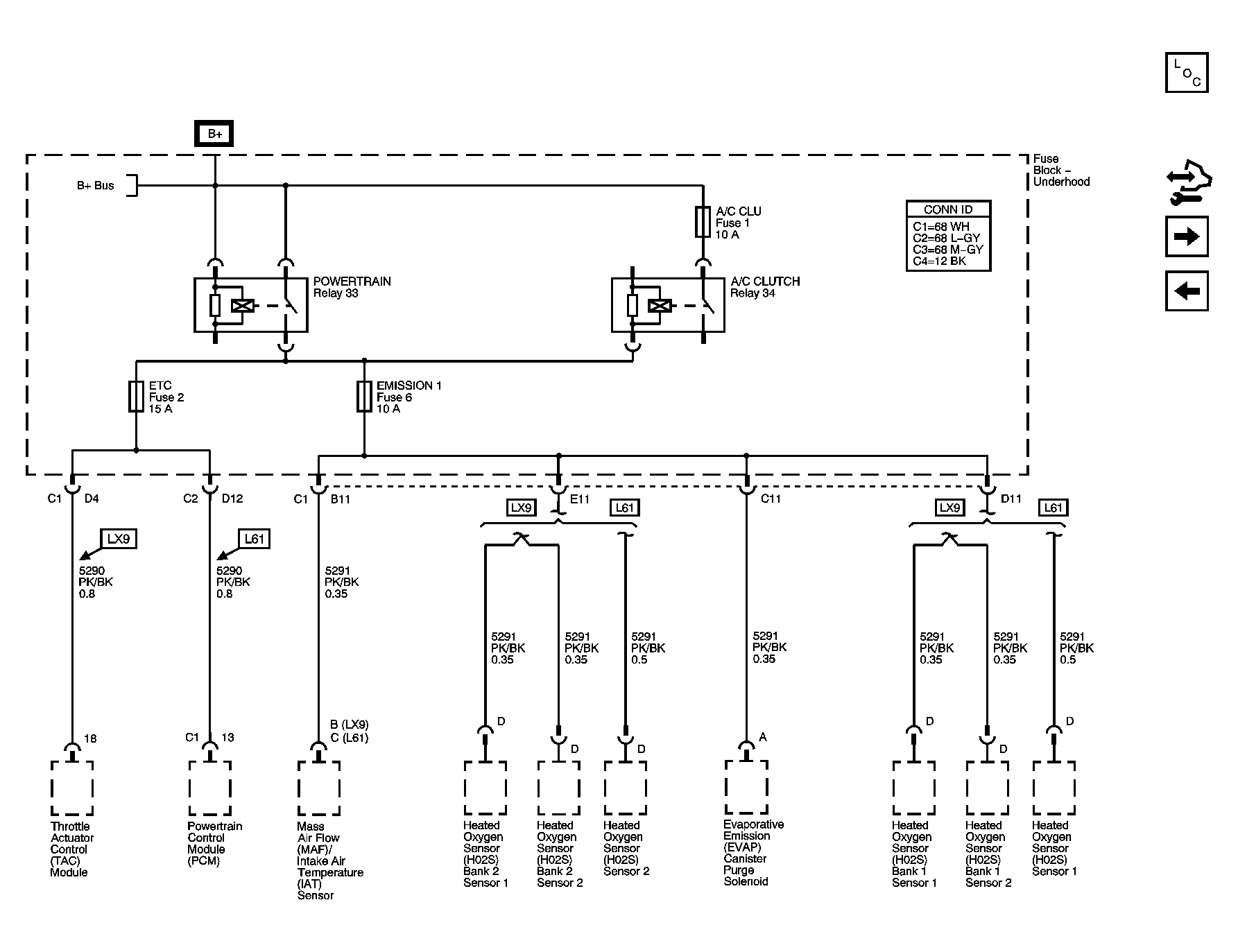

Fig 7: AIR, A/C Clutch, ECT IGN, ERLS#1 Fuses

Courtesy of GENERAL MOTORS CORP.

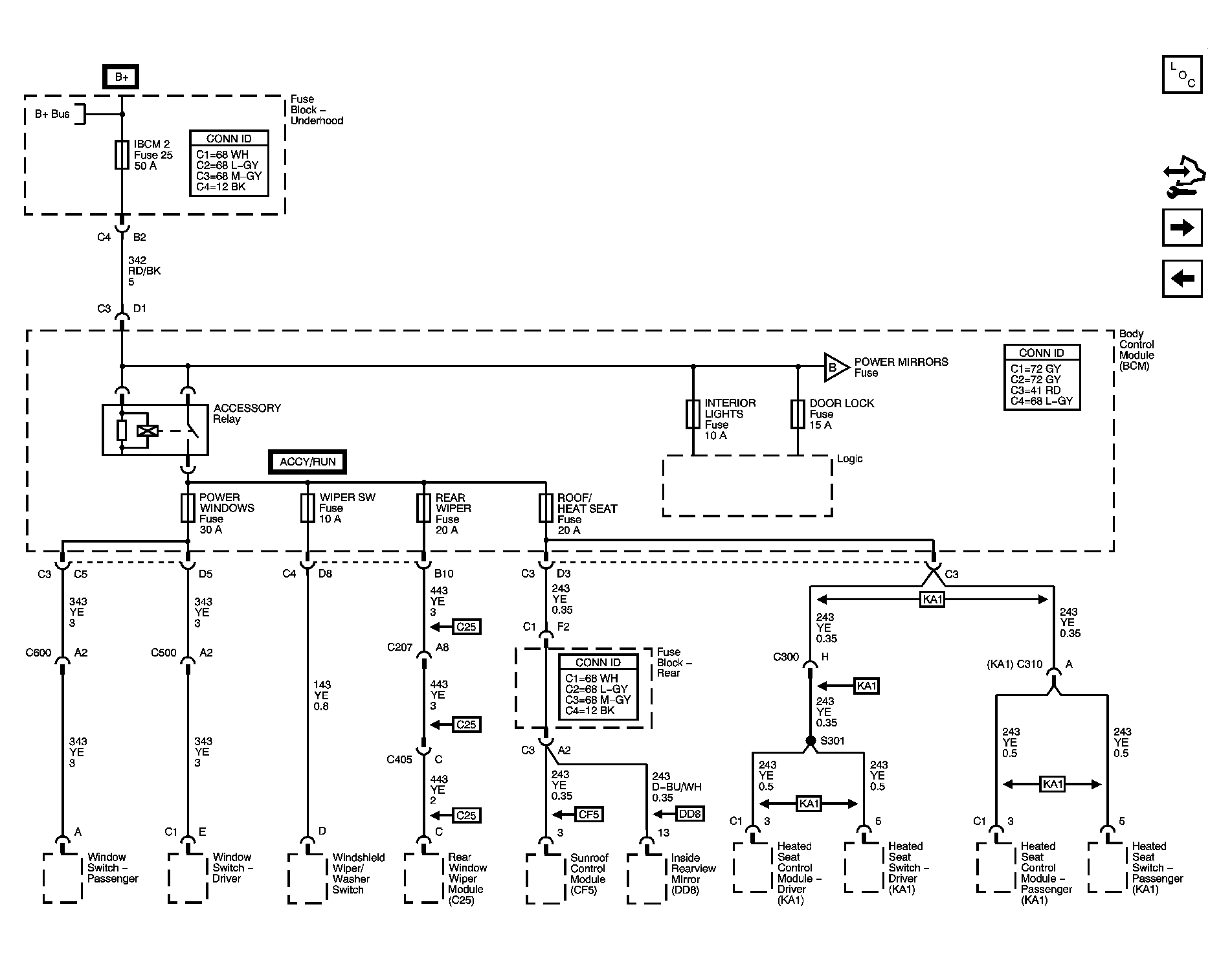

Fig 8: Underhood Junction Block - ICBM Batt 2, BCM - PWR Windows, Wiper Sw, Sunroof/HTD Seat Fuses

Courtesy of GENERAL MOTORS CORP.

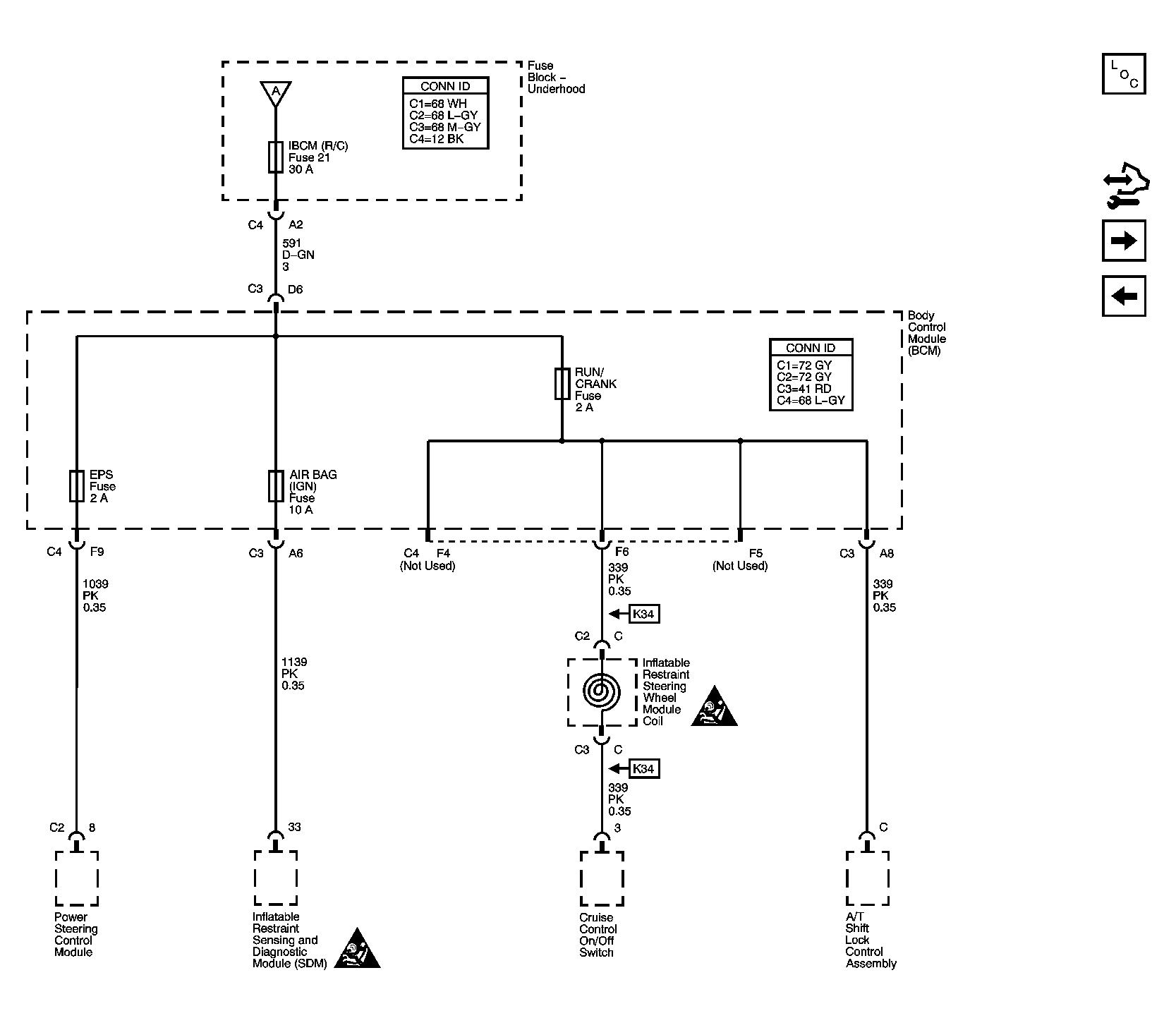

Fig 9: Underhood Junction Block - Run Relay, Run/Crank IBCM, HVAC Blower, HVAC Head/ECC, EPS, AIR BAG IGN, Run/Crank ELEC Fuses

Courtesy of GENERAL MOTORS CORP.

Fig 10: Interior Lights, Pwr Mirror, Pedal, and OnStar Fuses

Courtesy of GENERAL MOTORS CORP.
