Ground Distribution Schematics

Fig 1: G101 and G102

GM1500848

Courtesy of GENERAL MOTORS CORP.

Fig 2: G103, G104 and G105

GM1500911

Courtesy of GENERAL MOTORS CORP.

Fig 3: G106

GM1500913

Courtesy of GENERAL MOTORS CORP.

Fig 4: G109

GM1500914

Courtesy of GENERAL MOTORS CORP.

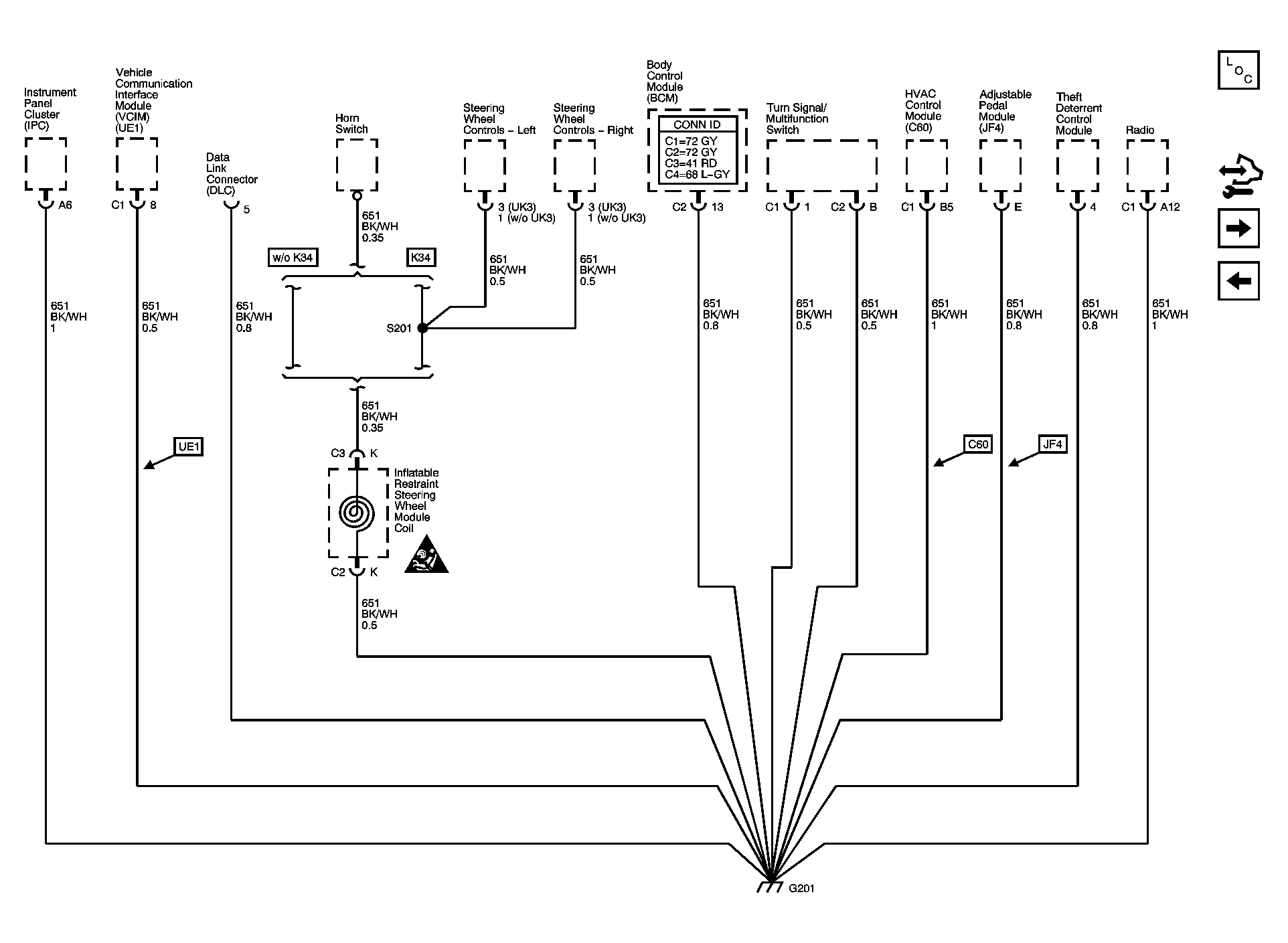

Fig 5: G201

GM1500916

Courtesy of GENERAL MOTORS CORP.

Fig 6: G203

GM1500917

Courtesy of GENERAL MOTORS CORP.

Fig 7: G301

GM1500919

Courtesy of GENERAL MOTORS CORP.

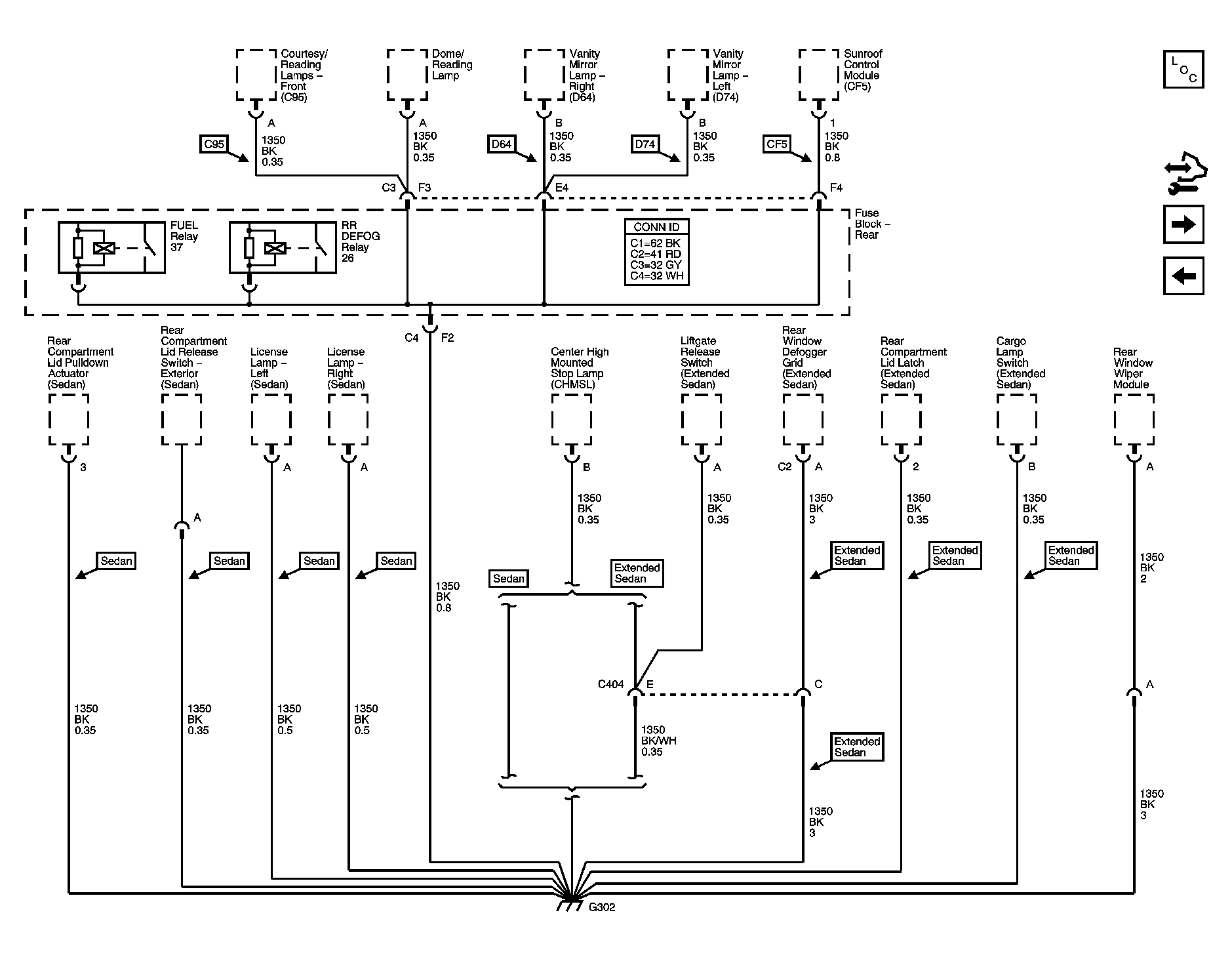

Fig 8: G302

GM1500920

Courtesy of GENERAL MOTORS CORP.

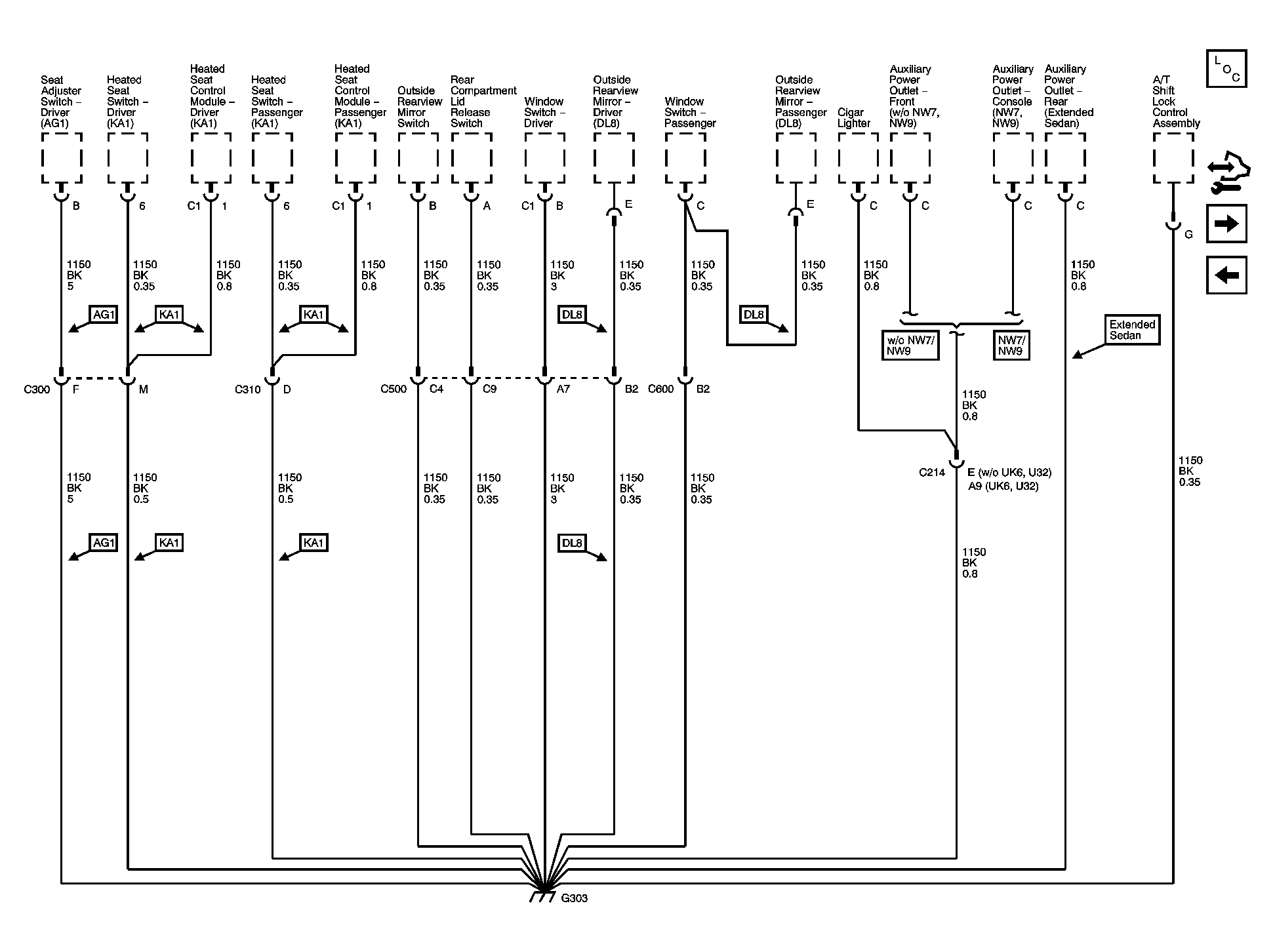

Fig 9: G303

GM1500921

Courtesy of GENERAL MOTORS CORP.

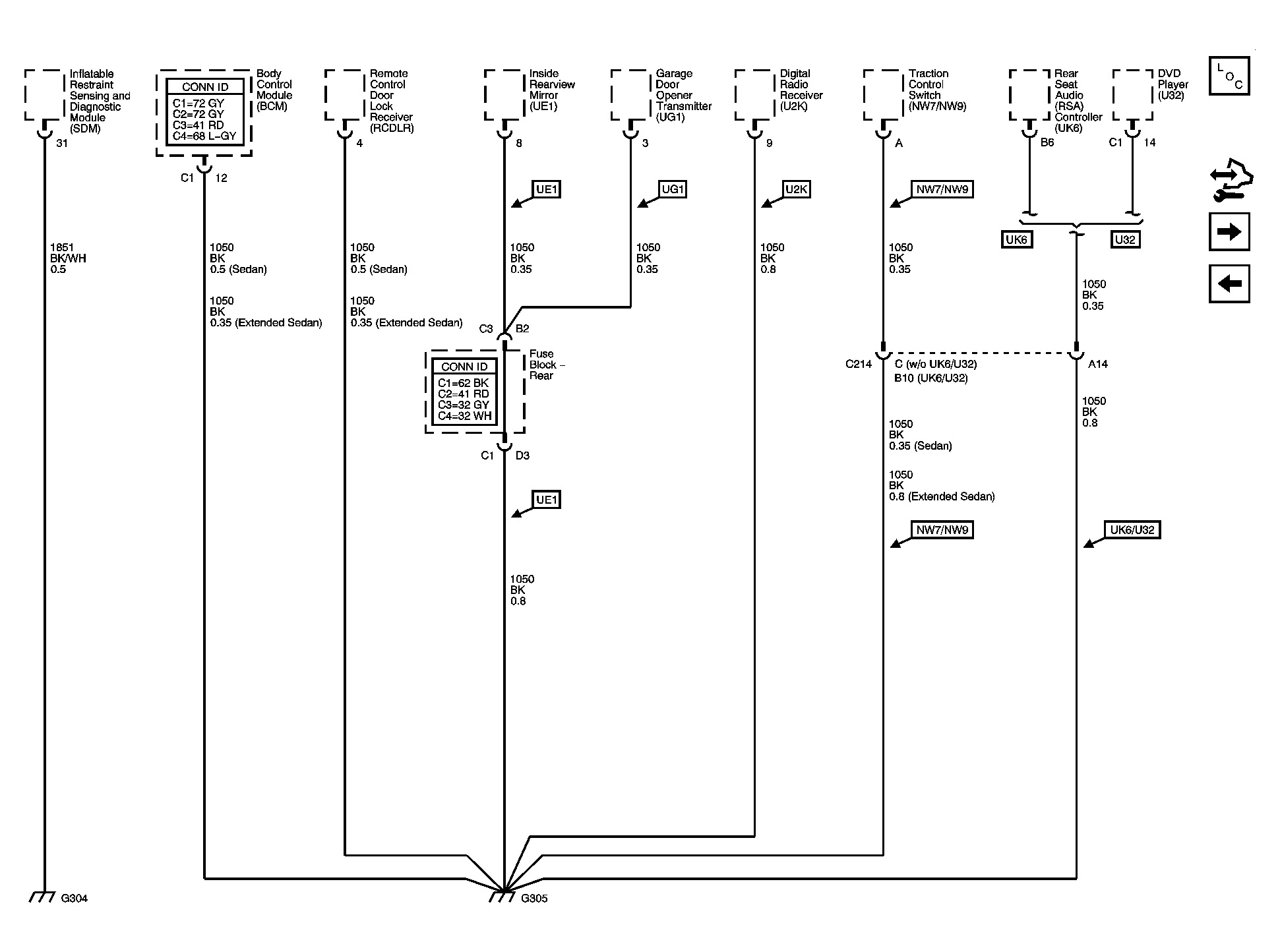

Fig 10: G304 and G305

GM1500922

Courtesy of GENERAL MOTORS CORP.

Fig 11: G401 and G403

GM1500923

Courtesy of GENERAL MOTORS CORP.
