Instrument Cluster Wiring Schematics

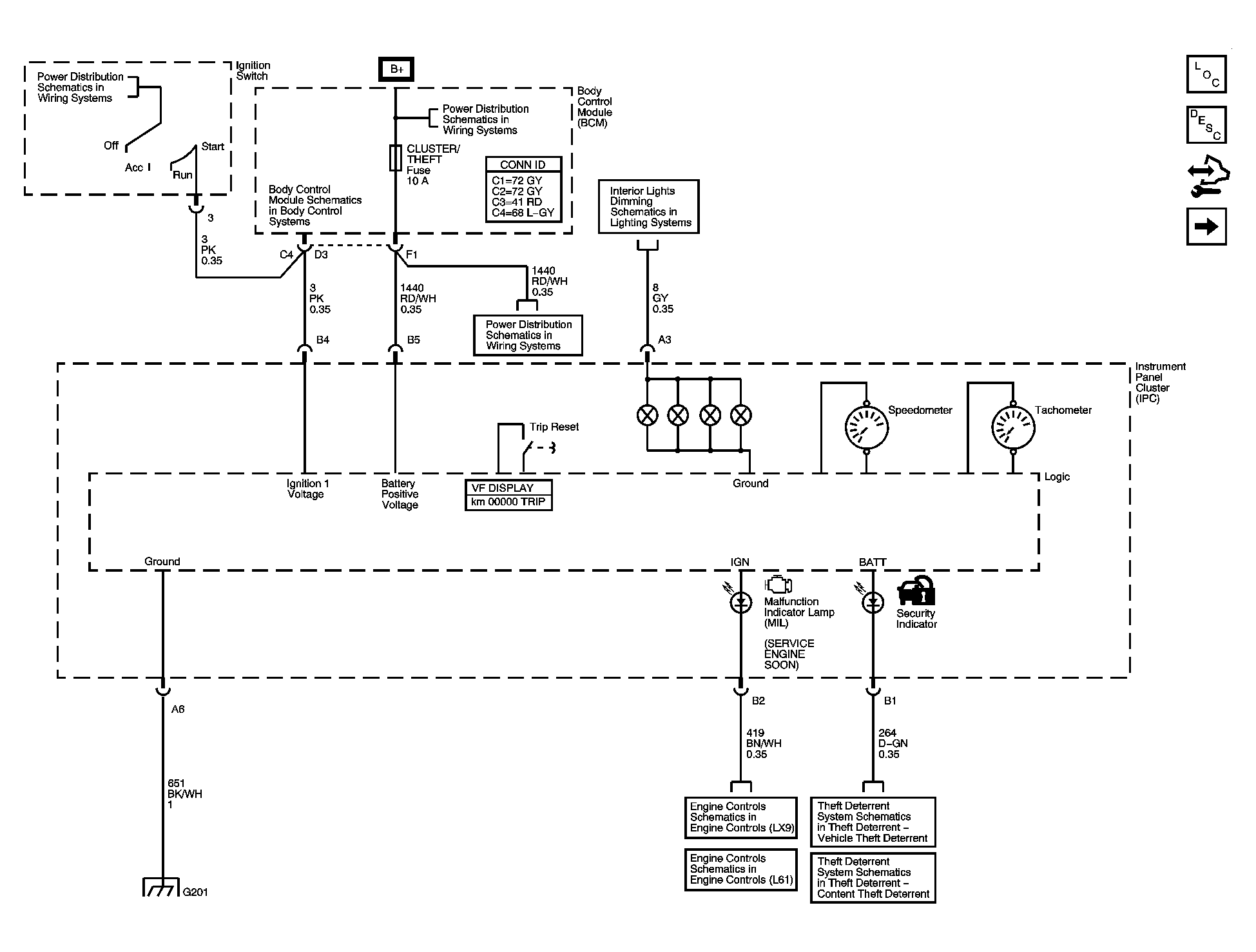

Fig 1: Power, Ground, and Illumination

GM1501038

Courtesy of GENERAL MOTORS CORP.

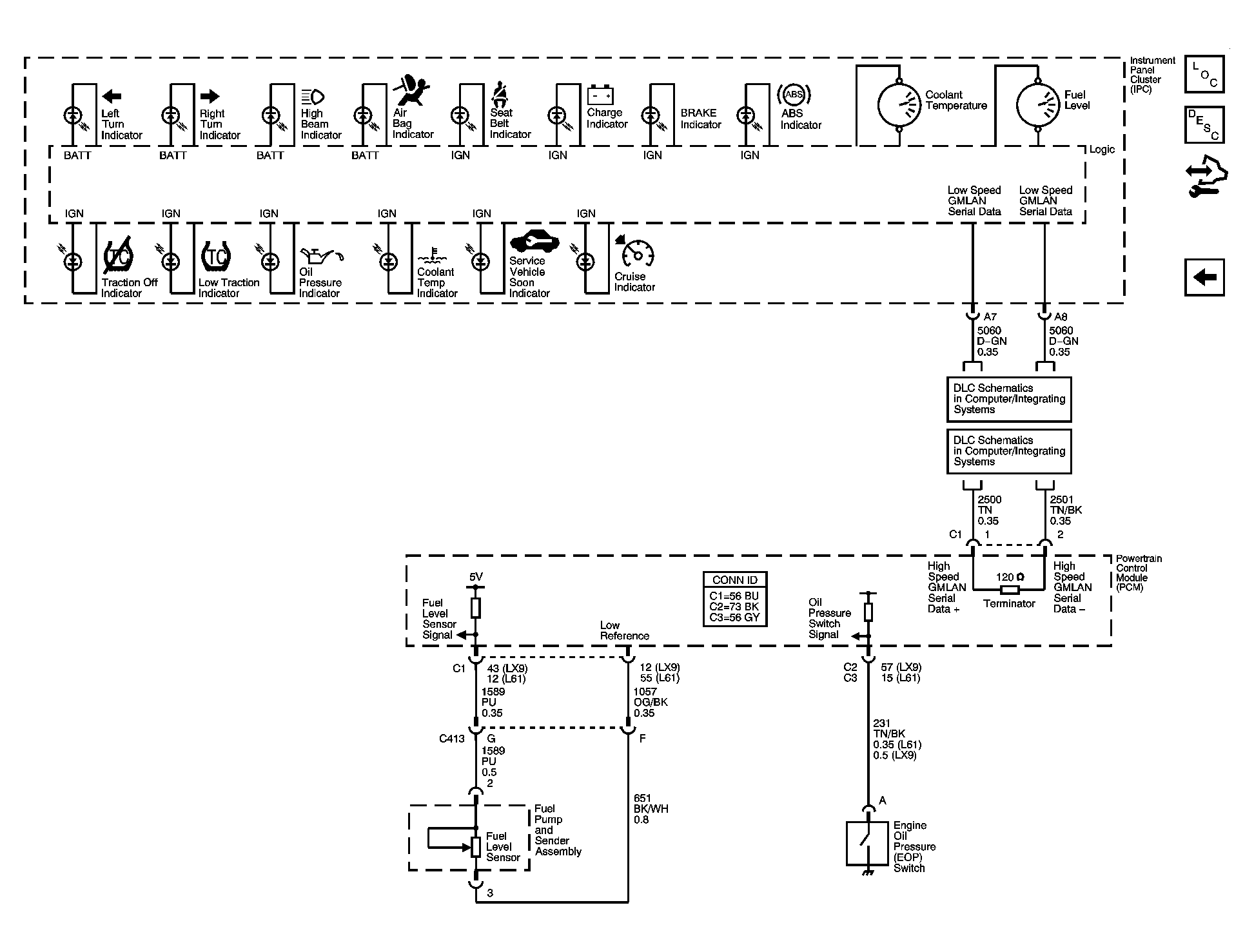

Fig 2: Indicators

GM1501040

Courtesy of GENERAL MOTORS CORP.
