ABS Schematics

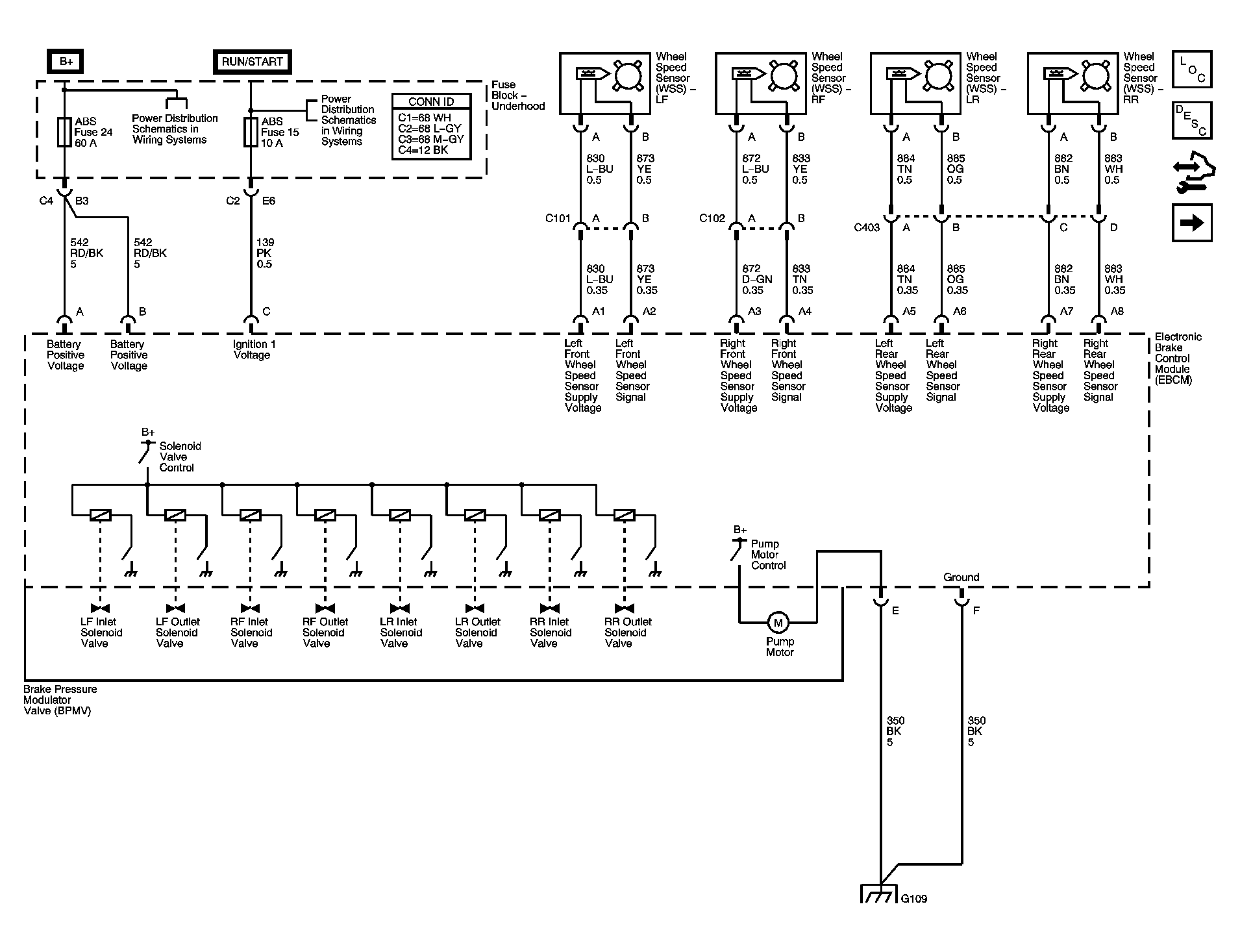

Fig 1: Power, Ground, Brake Pressure Modulator Valve and Wheel Speed Sensors
GM1501043Courtesy of GENERAL MOTORS CORP.

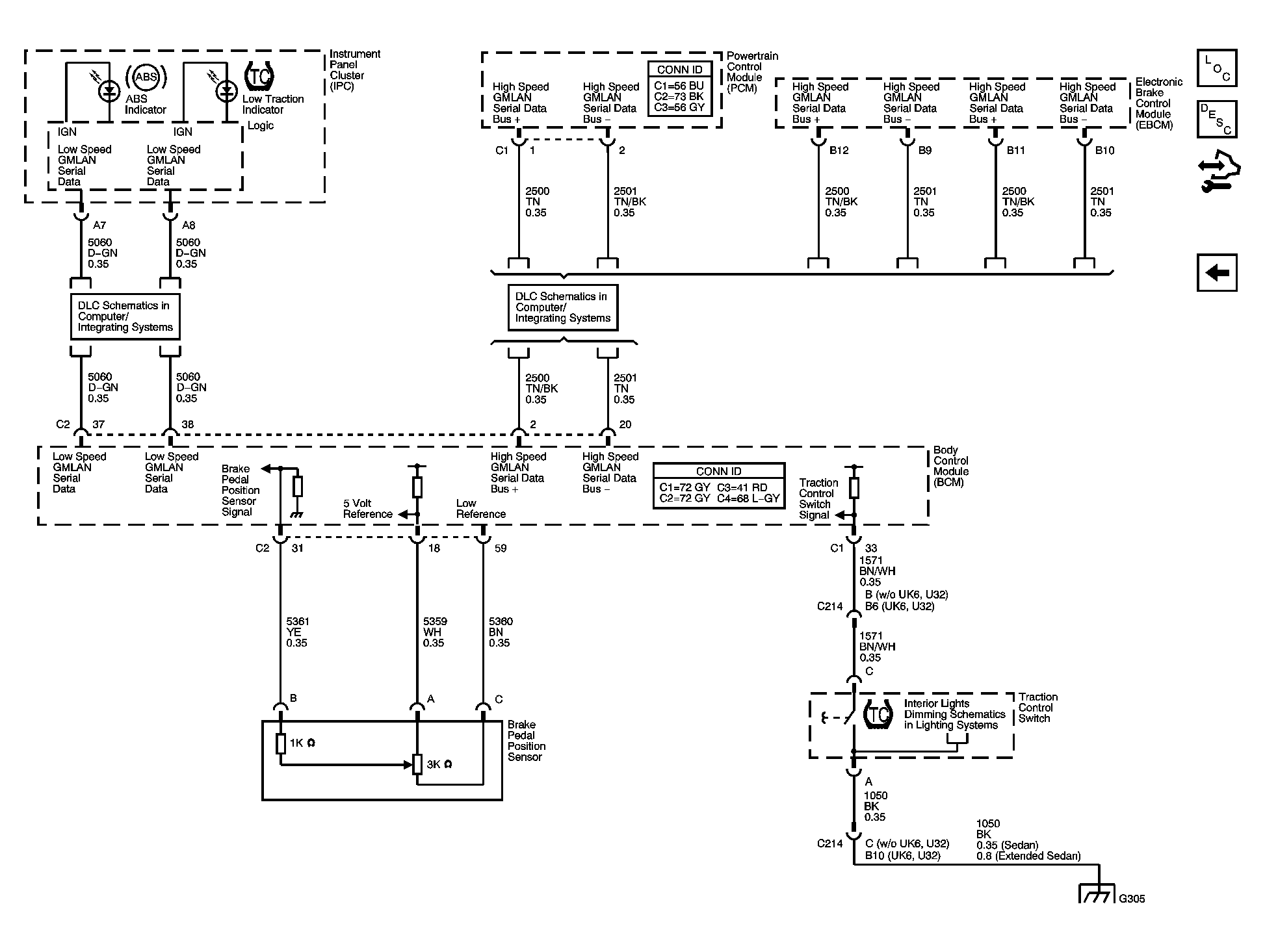

Fig 2: Brake Pedal Position Sensor, Traction Control Switch and Data Link Communications
GM1501045Courtesy of GENERAL MOTORS CORP.
