Home >> Chevrolet >> 2005 >> Malibu Maxx >> Repair and Diagnosis >> Body & Frame >> Seats >> Seat System >> Schematic and Routing Diagrams >> Driver Seat Schematics

Driver Seat Schematics

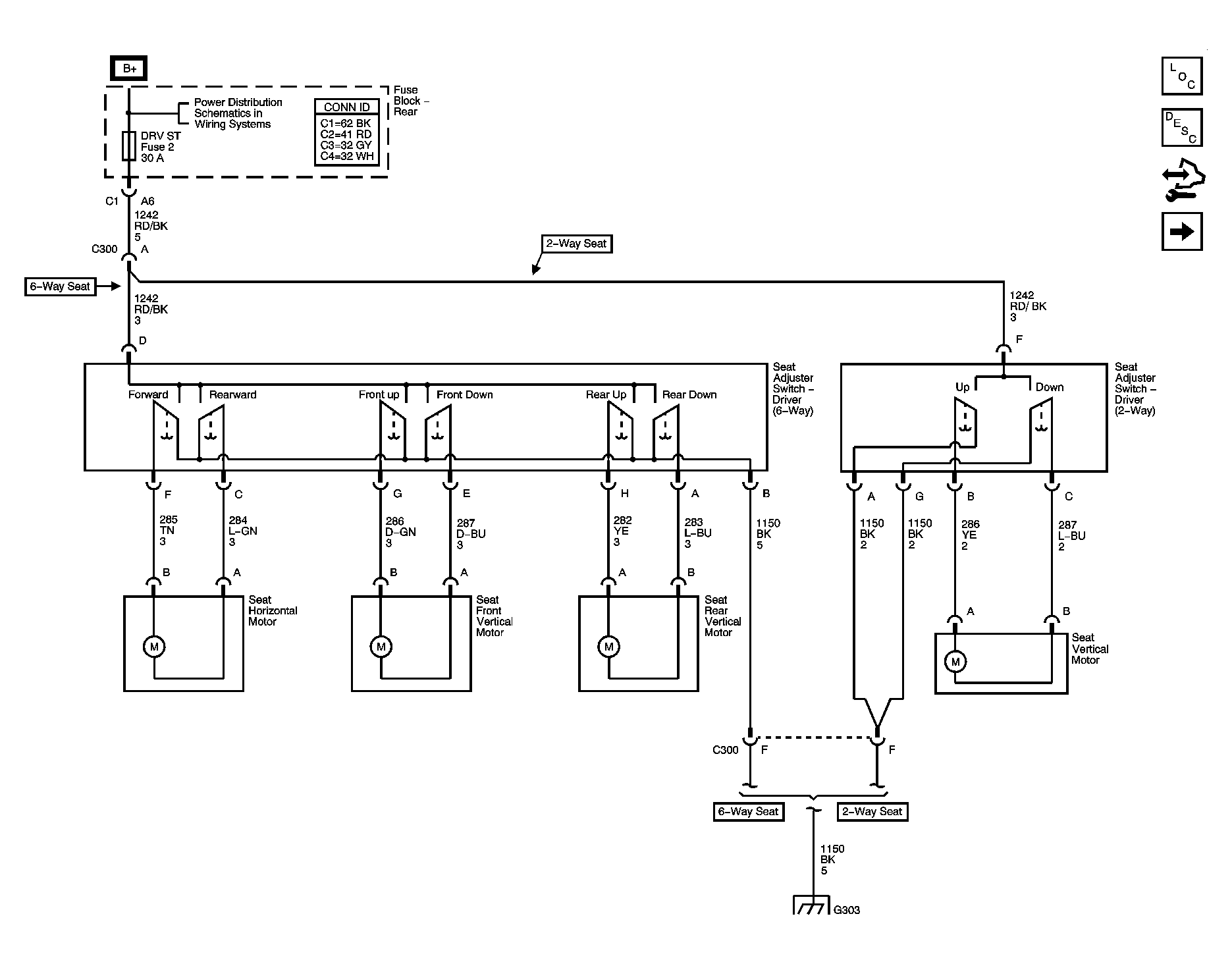

Fig 1: Power Driver Seat

GM1501100

Courtesy of GENERAL MOTORS CORP.

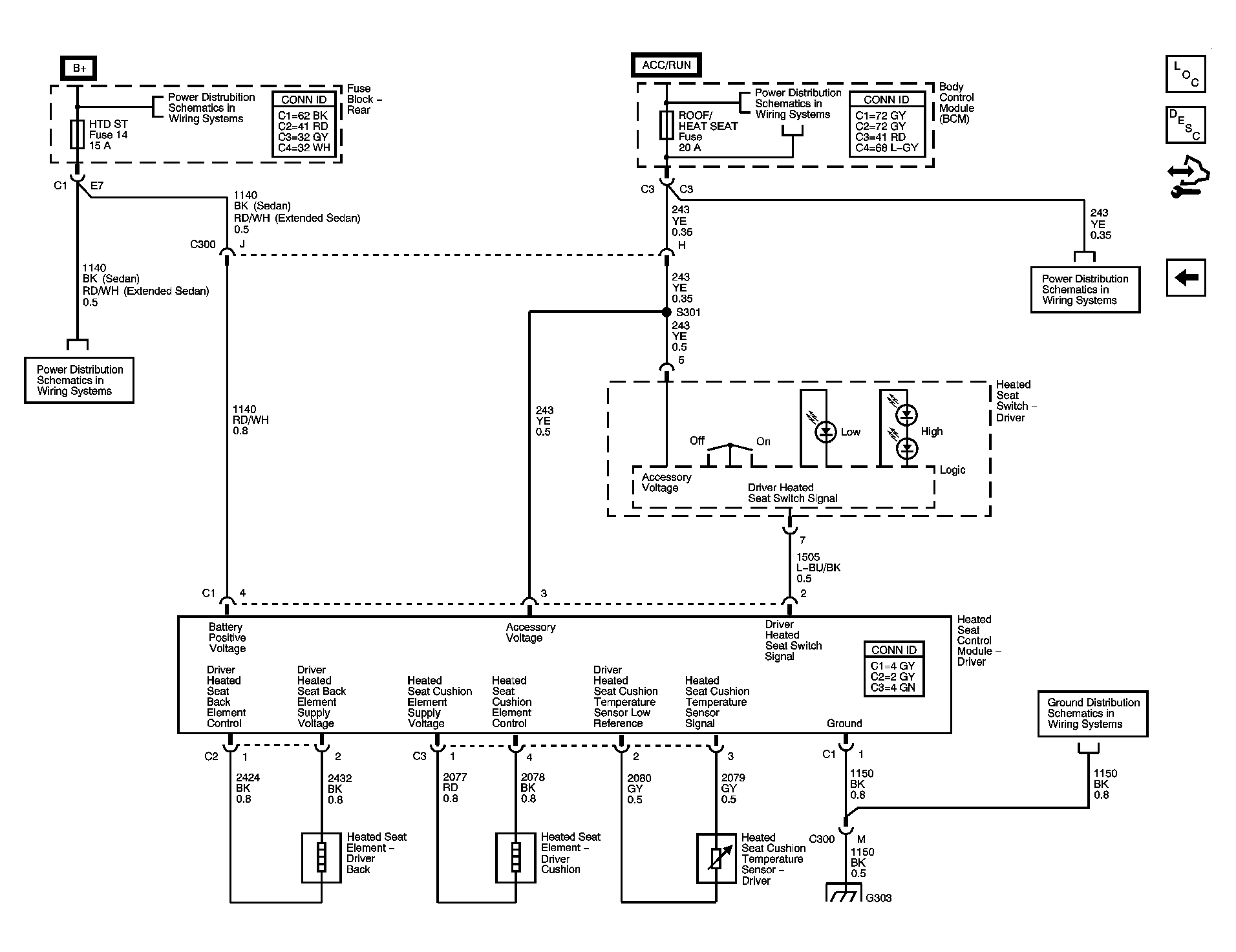

Fig 2: Heated Driver Seat

GM1501101

Courtesy of GENERAL MOTORS CORP.
