Theft Deterrent System Schematics

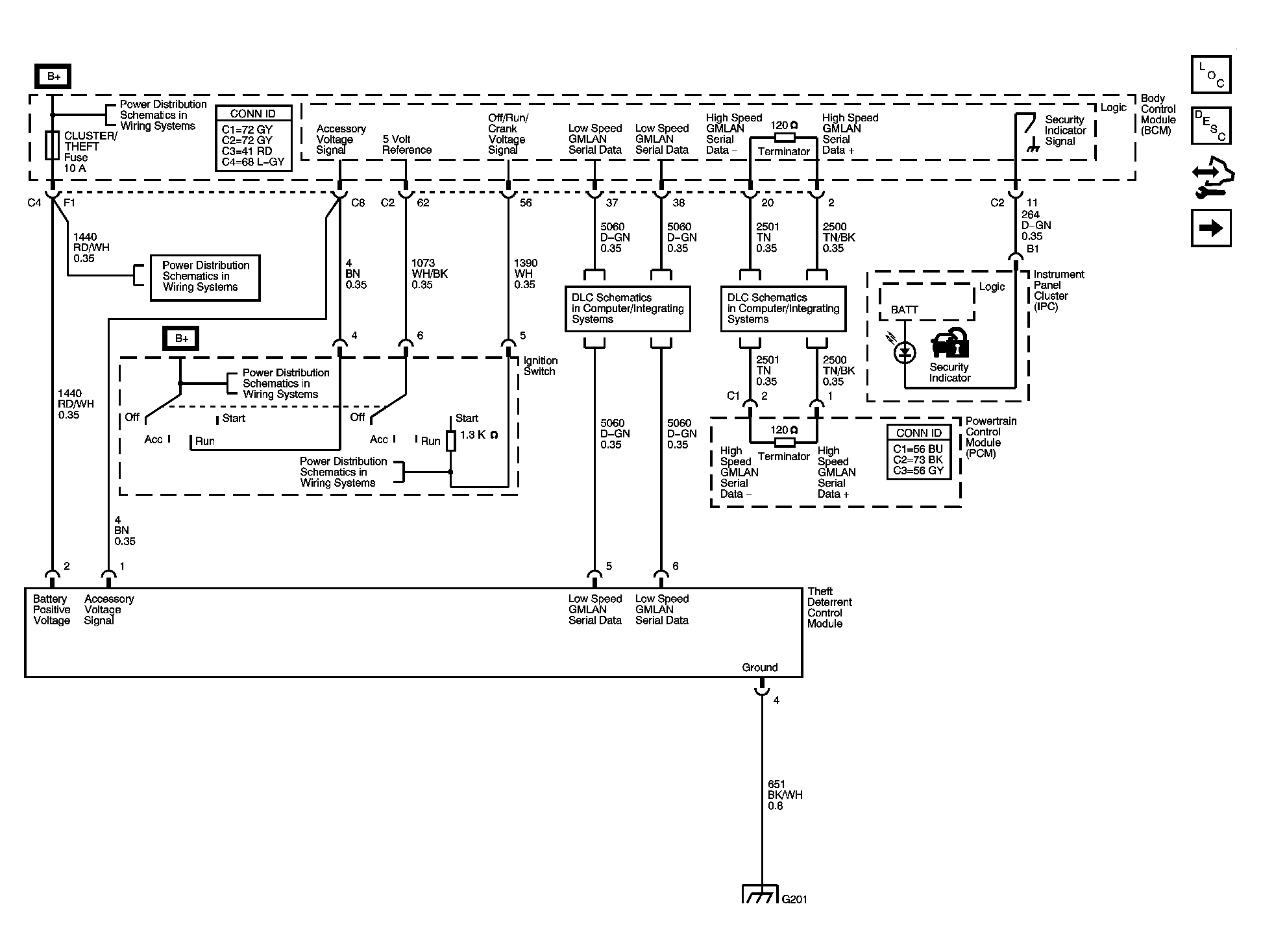

Fig 1: Vehicle Theft Deterrent (VTD) System Schematic
GM1501116Courtesy of GENERAL MOTORS CORP.

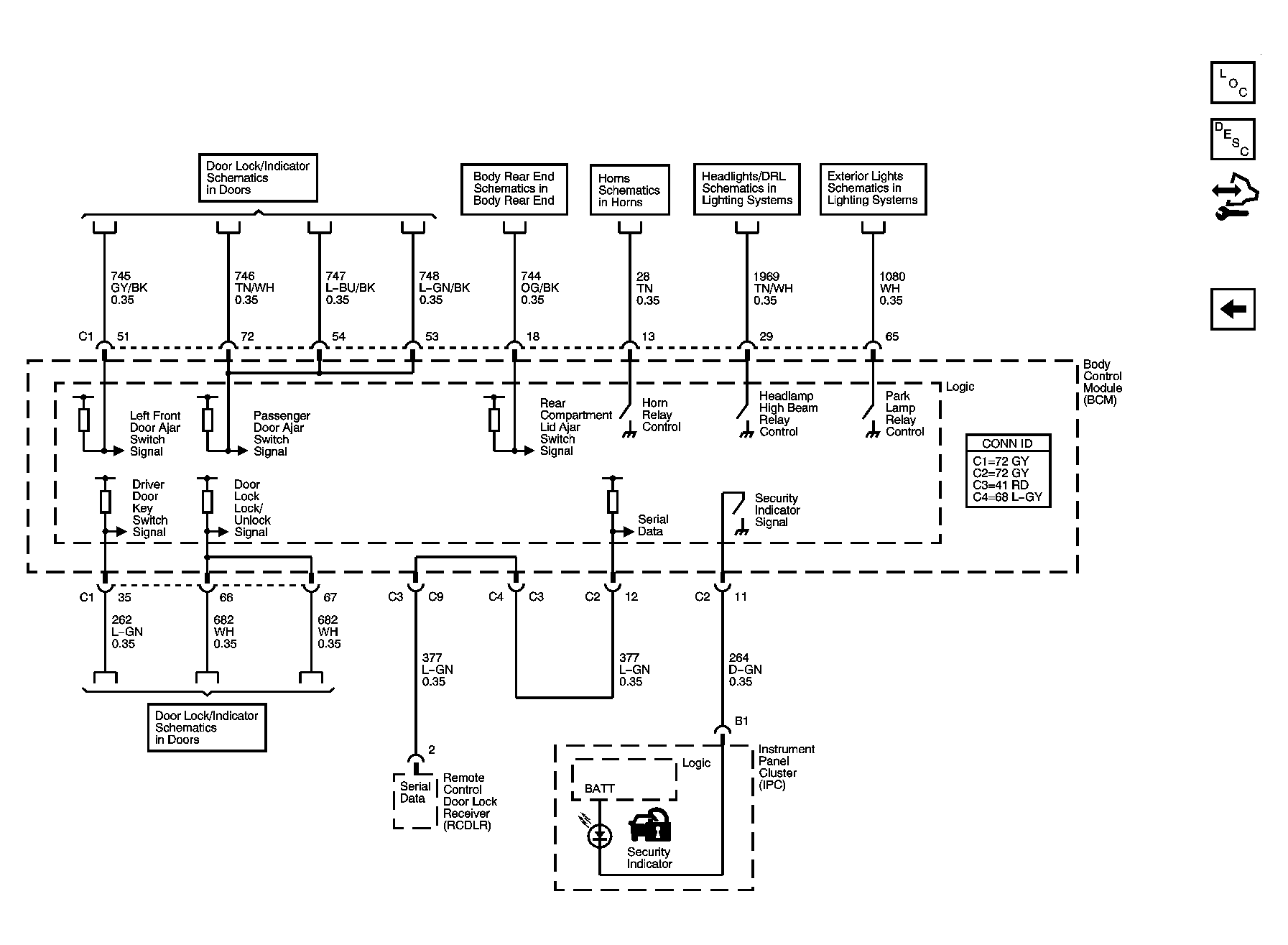

Fig 2: Content Theft Deterrent (CTD) System Schematic
GM1501117Courtesy of GENERAL MOTORS CORP.
