Interior Lights Schematics

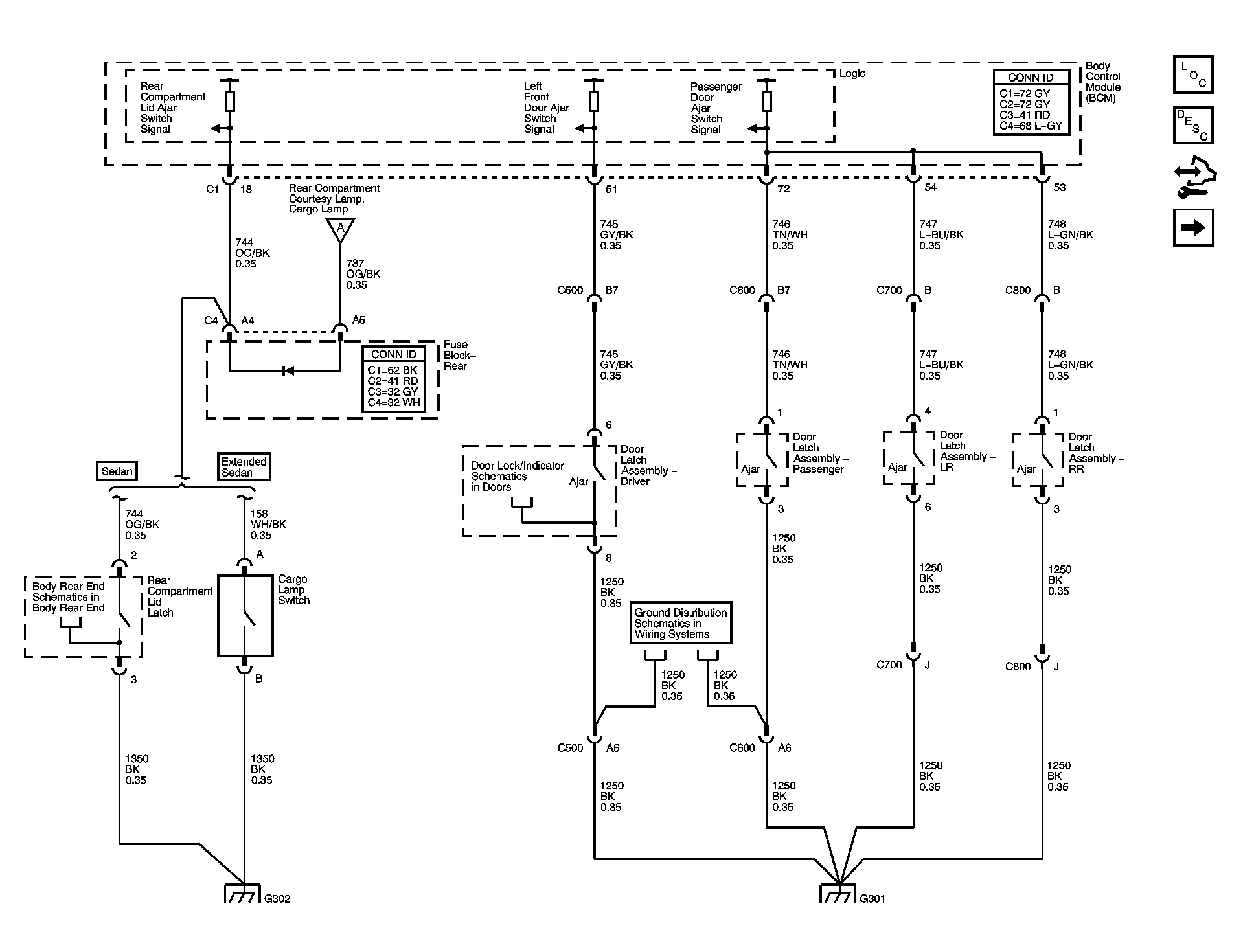

Fig 1: Inputs

GM1501074

Courtesy of GENERAL MOTORS CORP.

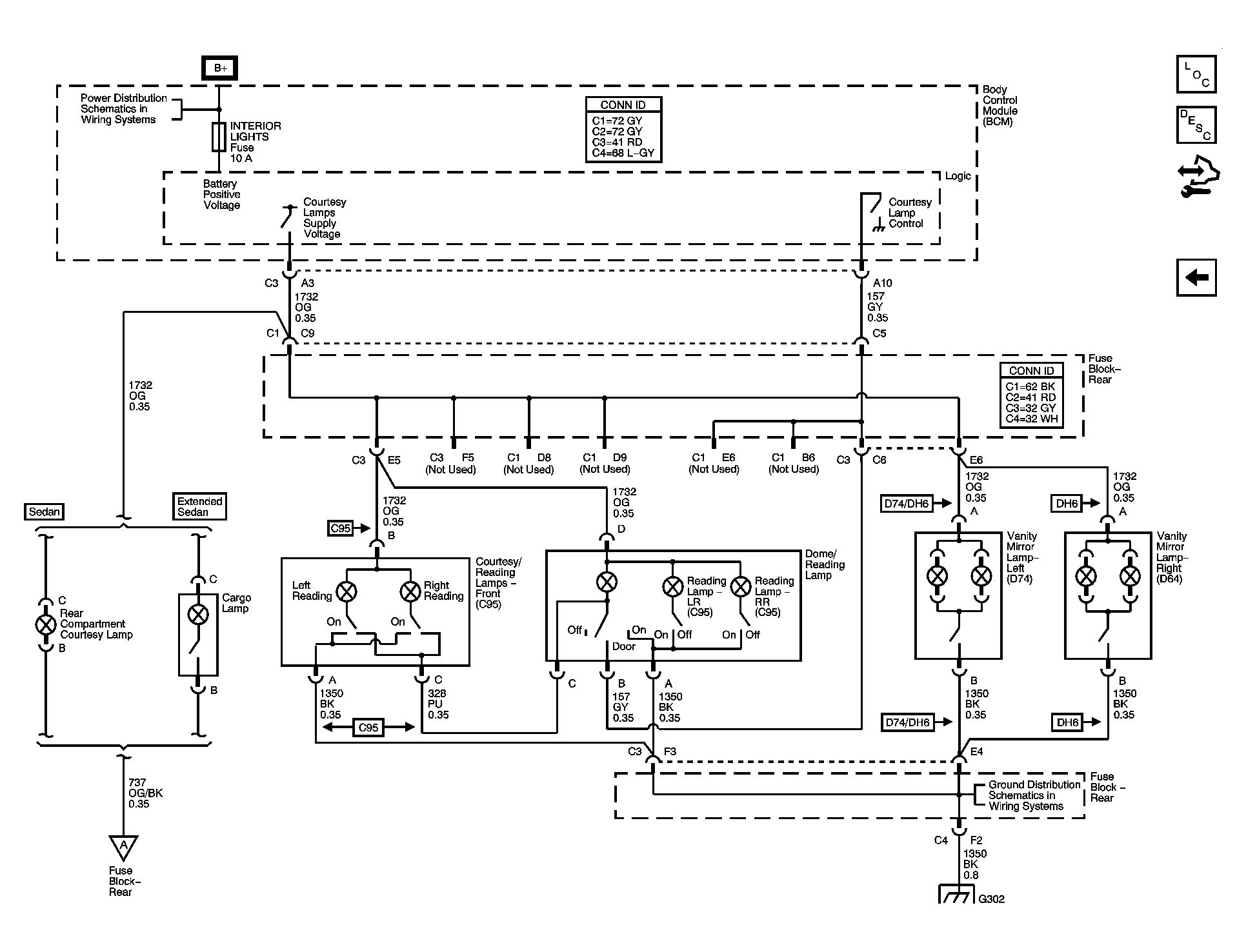

Fig 2: Outputs

GM1501075

Courtesy of GENERAL MOTORS CORP.
