Interior Lights Dimming Schematics

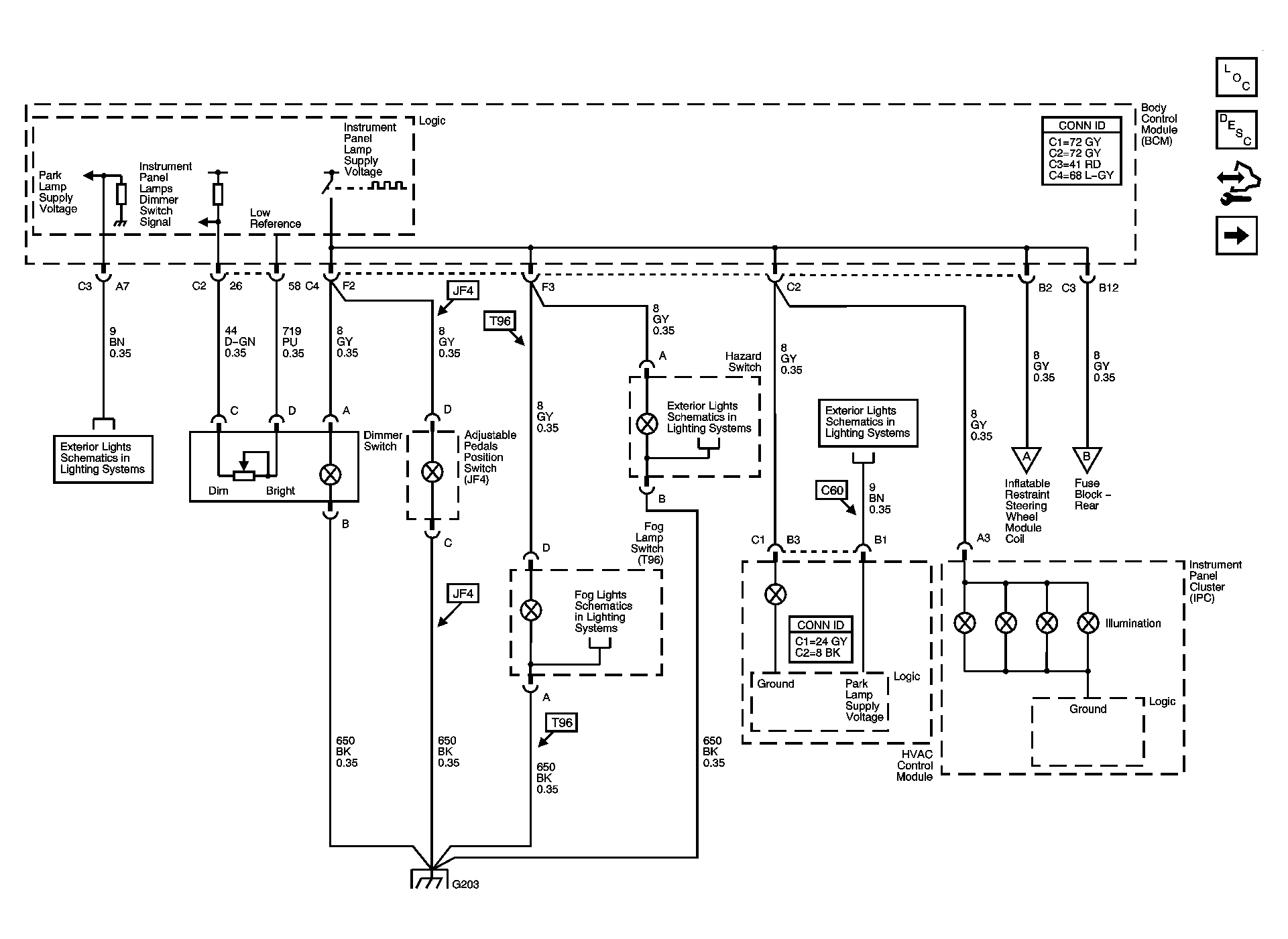

Fig 1: Displays

GM1501078

Courtesy of GENERAL MOTORS CORP.

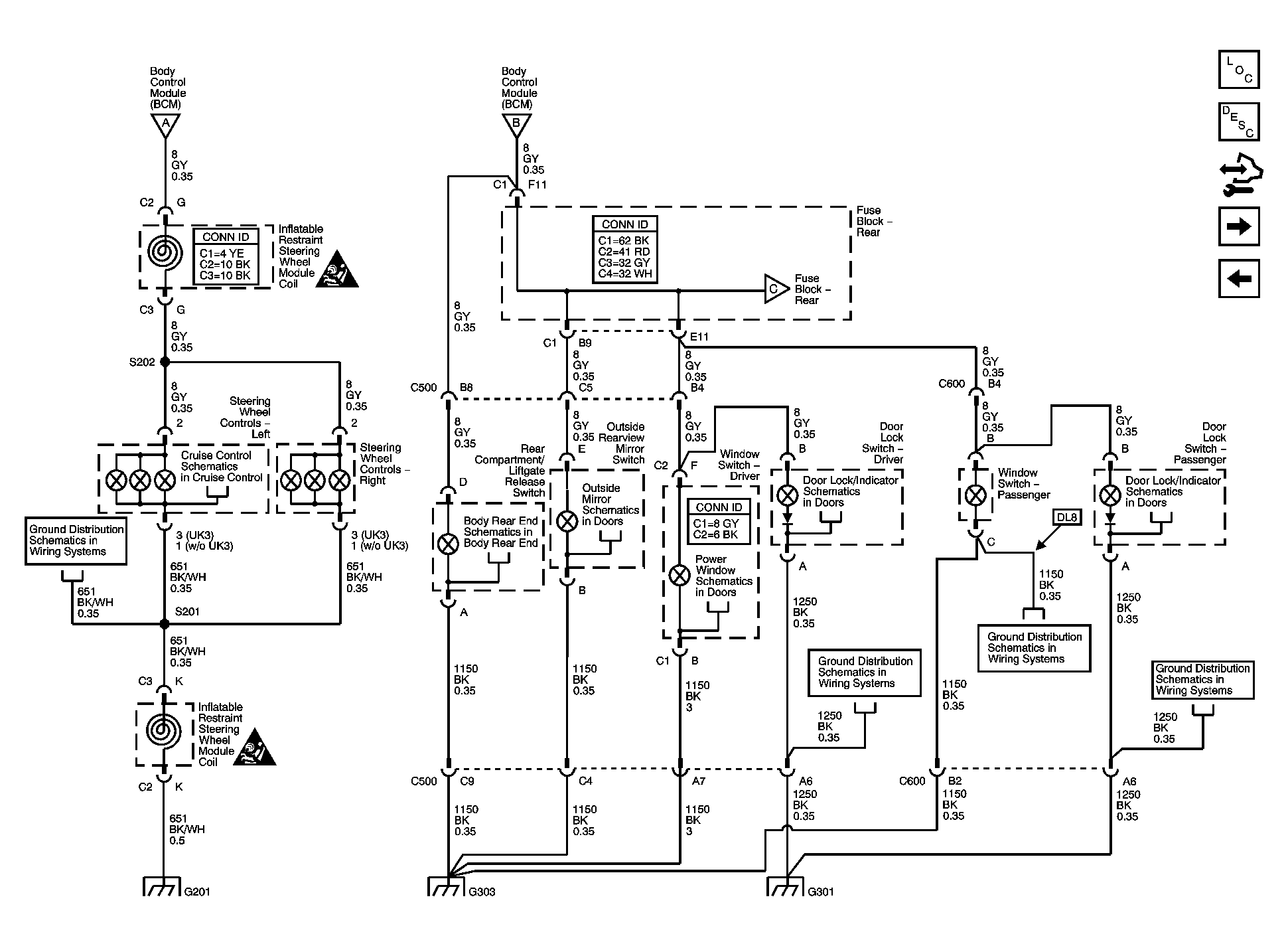

Fig 2: Switches

GM1501080

Courtesy of GENERAL MOTORS CORP.

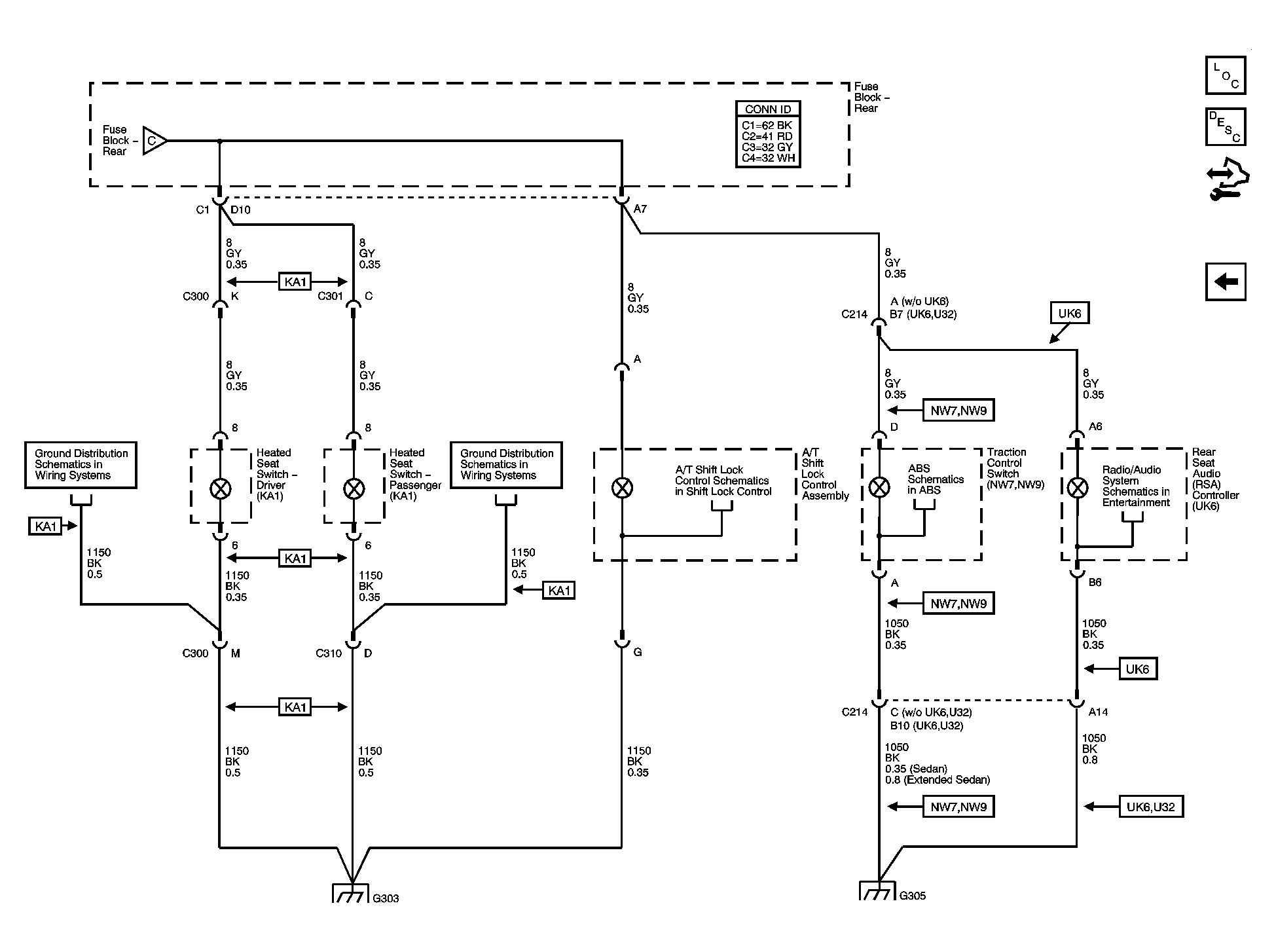

Fig 3: Seats and Center Console

GM1501081

Courtesy of GENERAL MOTORS CORP.
