Radio/Audio System Schematics

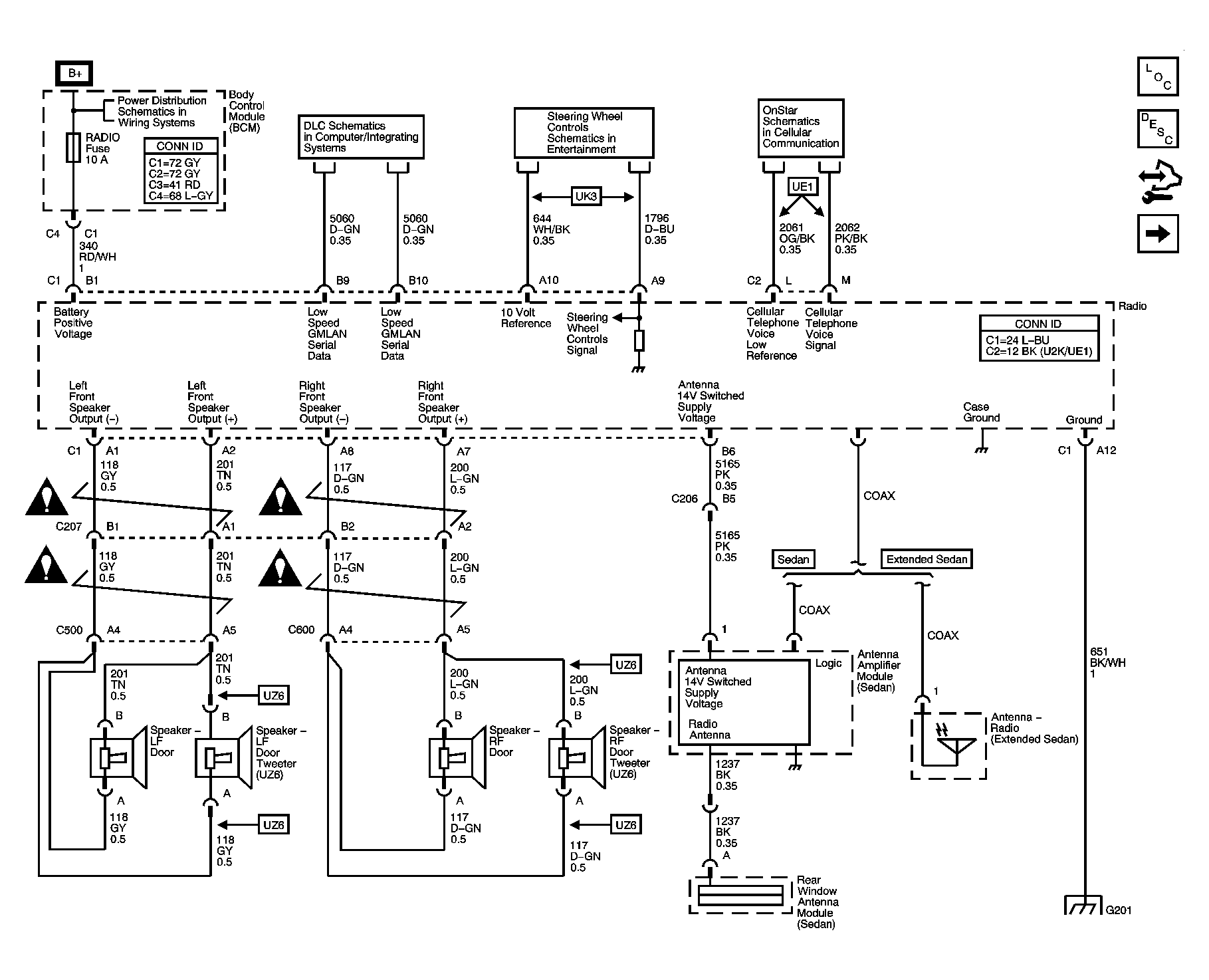

Fig 1: Schematic - Radio Power, Ground, Front Speakers, Antenna and References

Courtesy of GENERAL MOTORS CORP.

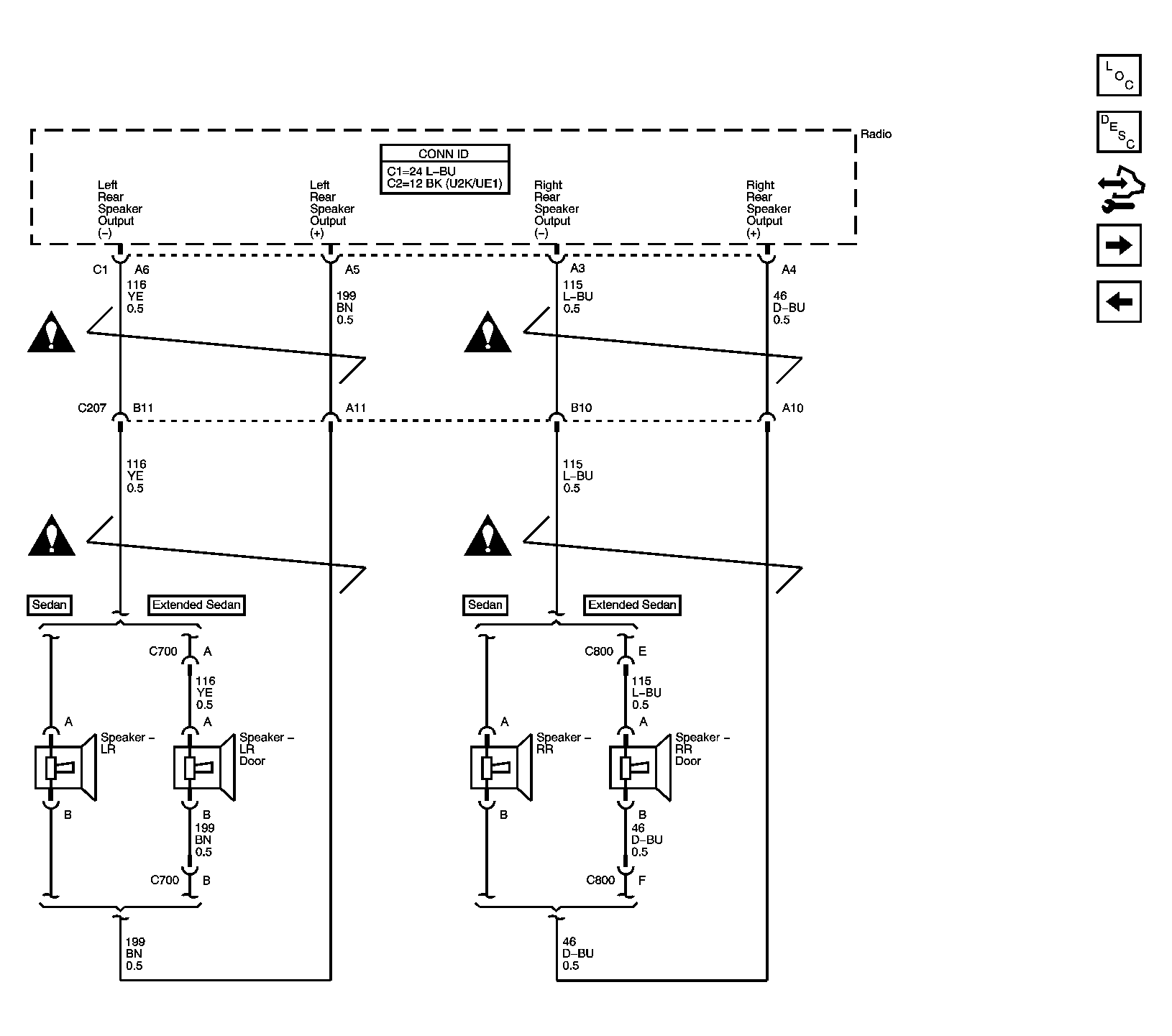

Fig 2: Schematic - Rear Speakers w/o UK6, U32 or U2K

Courtesy of GENERAL MOTORS CORP.

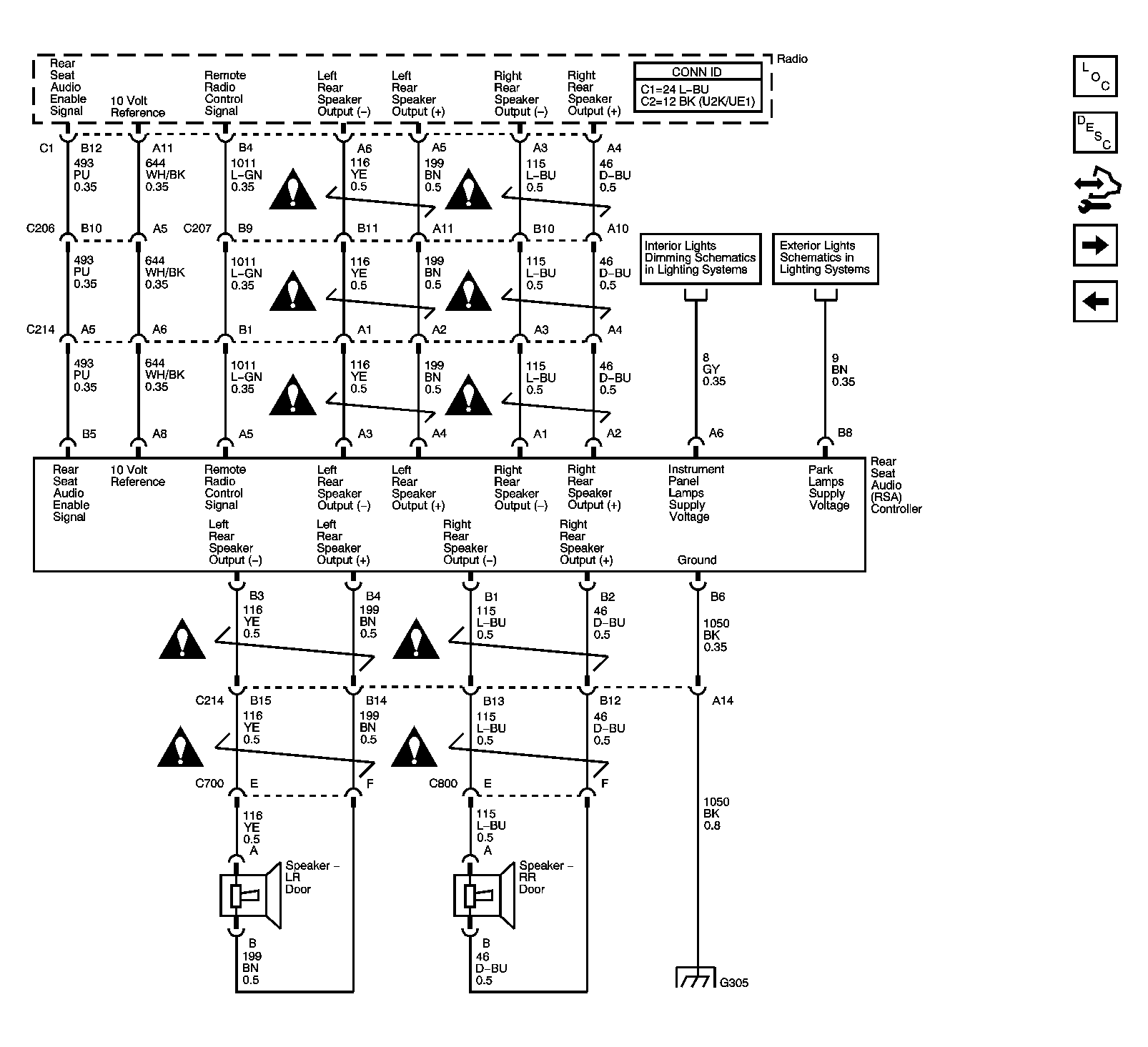

Fig 3: Schematic - Rear Seat Audio (RSA) Controller

Courtesy of GENERAL MOTORS CORP.

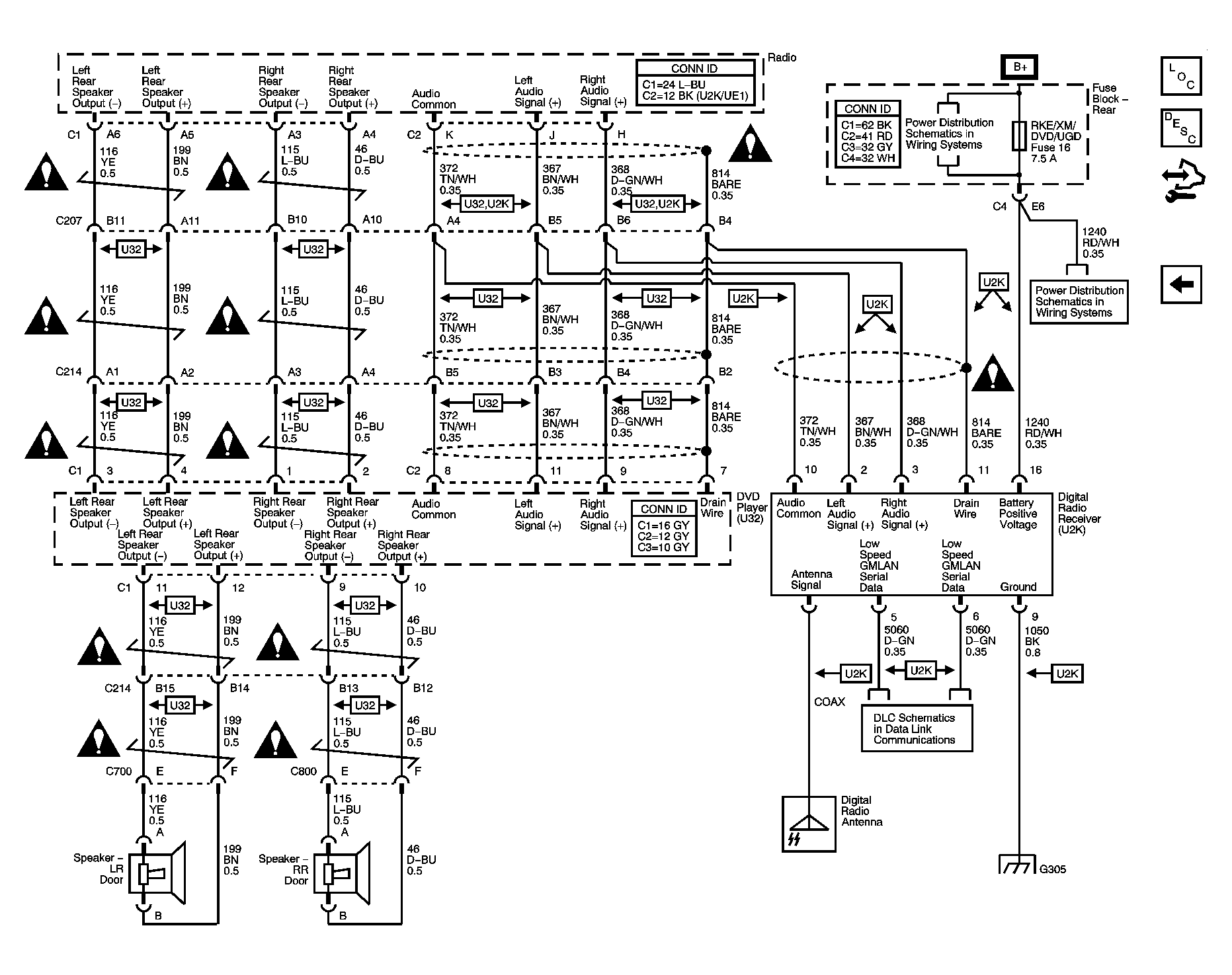

Fig 4: Schematic - DVD Player and Digital Radio Receiver

Courtesy of GENERAL MOTORS CORP.
