Automatic Transmission Controls Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

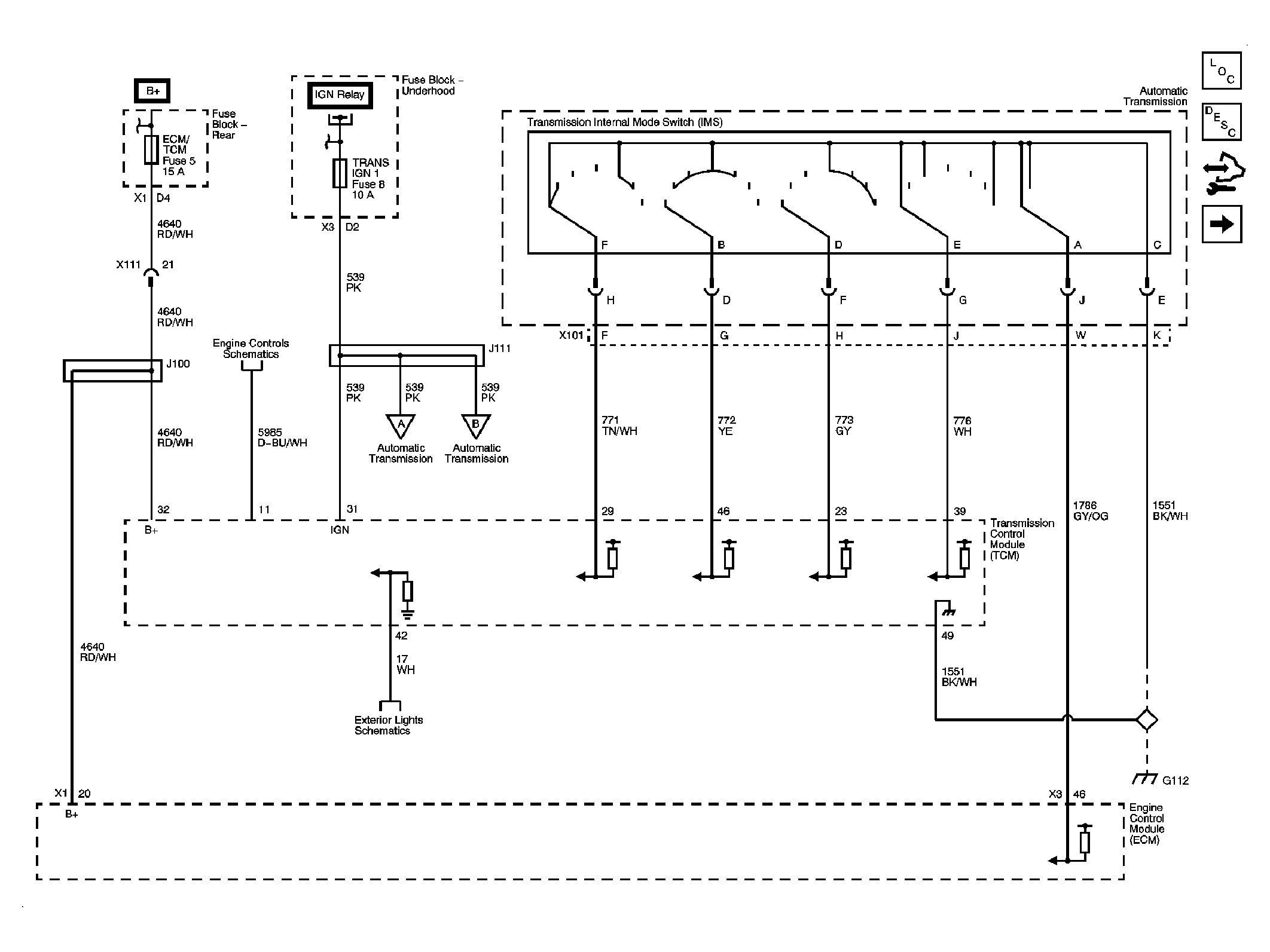

Fig 1: TCM Power and Ground
GM1886506Courtesy of GENERAL MOTORS CORP.

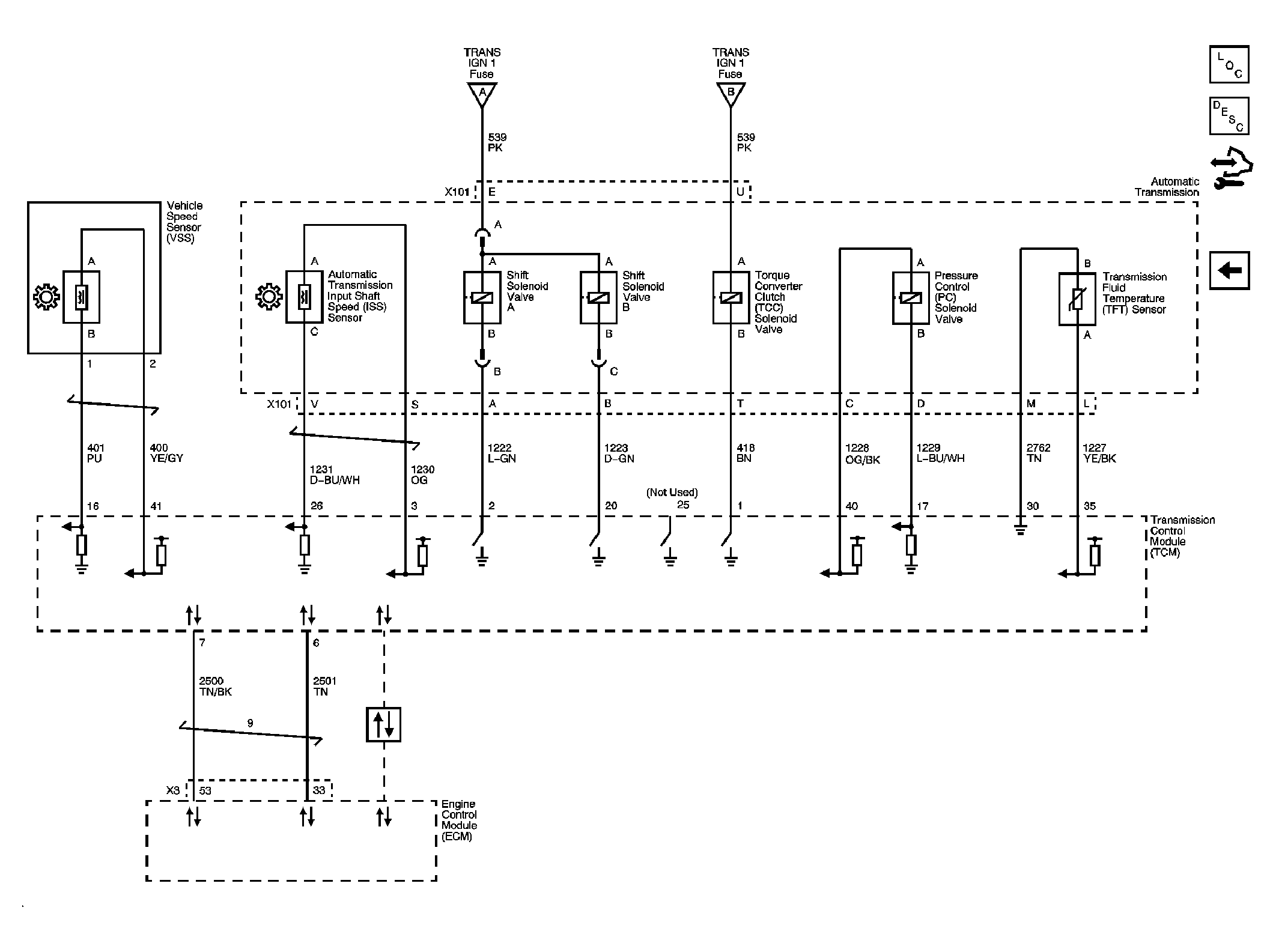

Fig 2: Solenoids and VSS
GM1886509Courtesy of GENERAL MOTORS CORP.
