Electronic Suspension Control Module Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

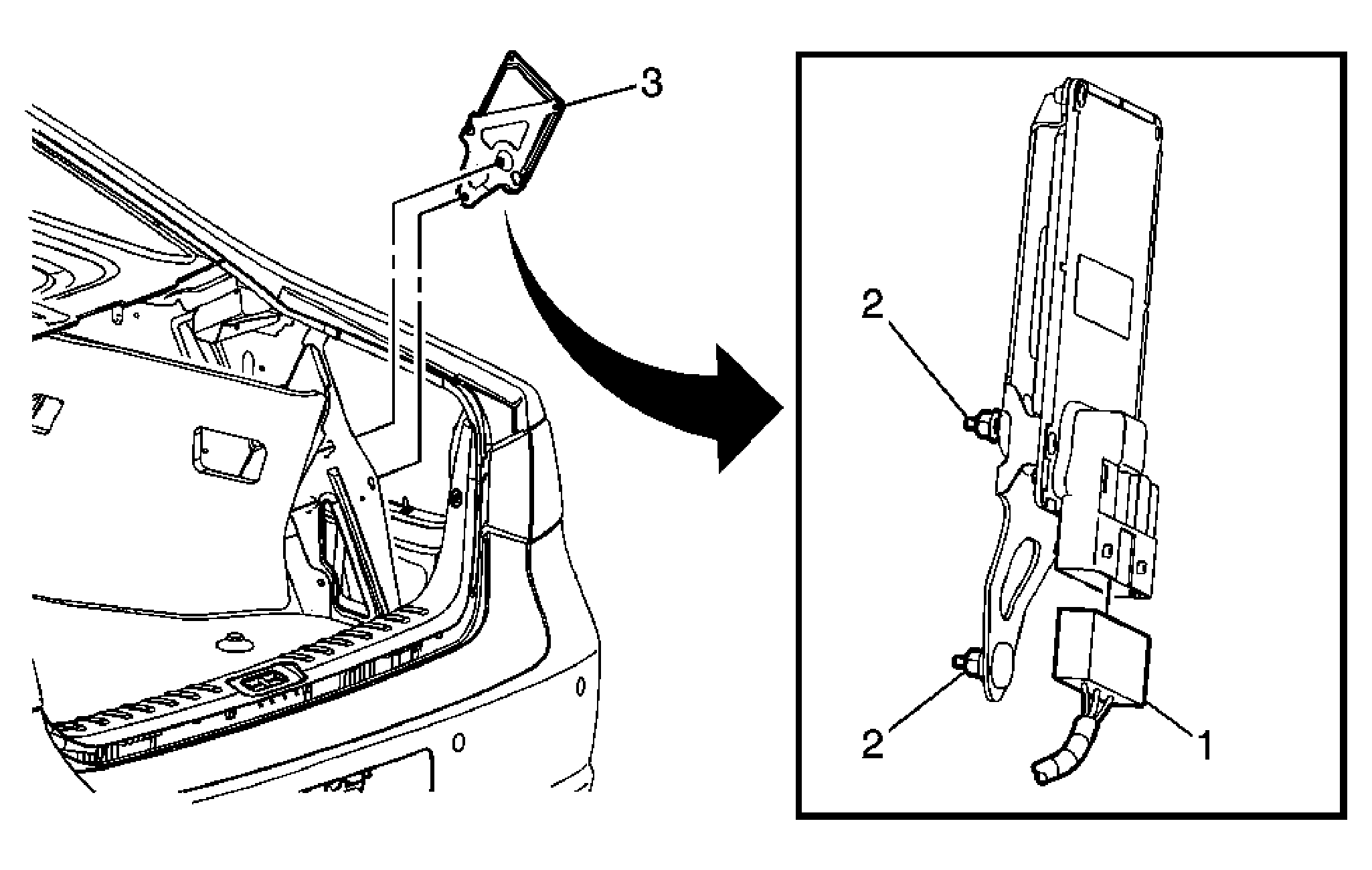

Fig 1: View Of ESC Module & Electrical Connectors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the tire and wheel. Refer to Tire and Wheel Removal and Installation . Remove the compartment trim panel. Refer to Rear Compartment Trim Panel Replacement .
1	Electrical Connector
2	Nut (Qty: 2)
3	Control Module NOTE: Refer to Fastener Notice . Procedure: If a replacement control module is installed, program the module. Refer to Control Module References . Tighten: 9 N.m (80 lb in)
