Driver Seat Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

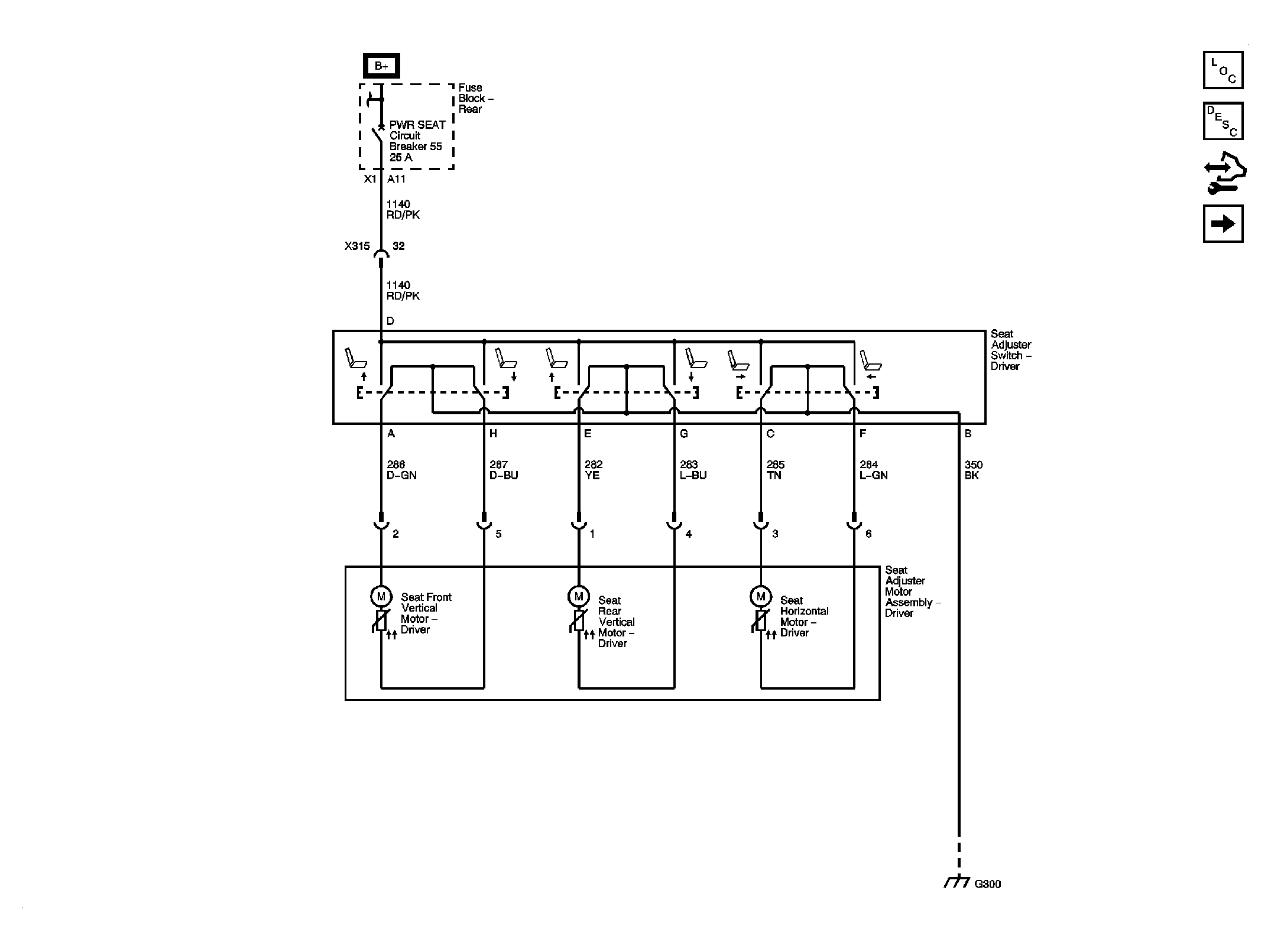

Fig 1: Without A45
GM1886910Courtesy of GENERAL MOTORS CORP.

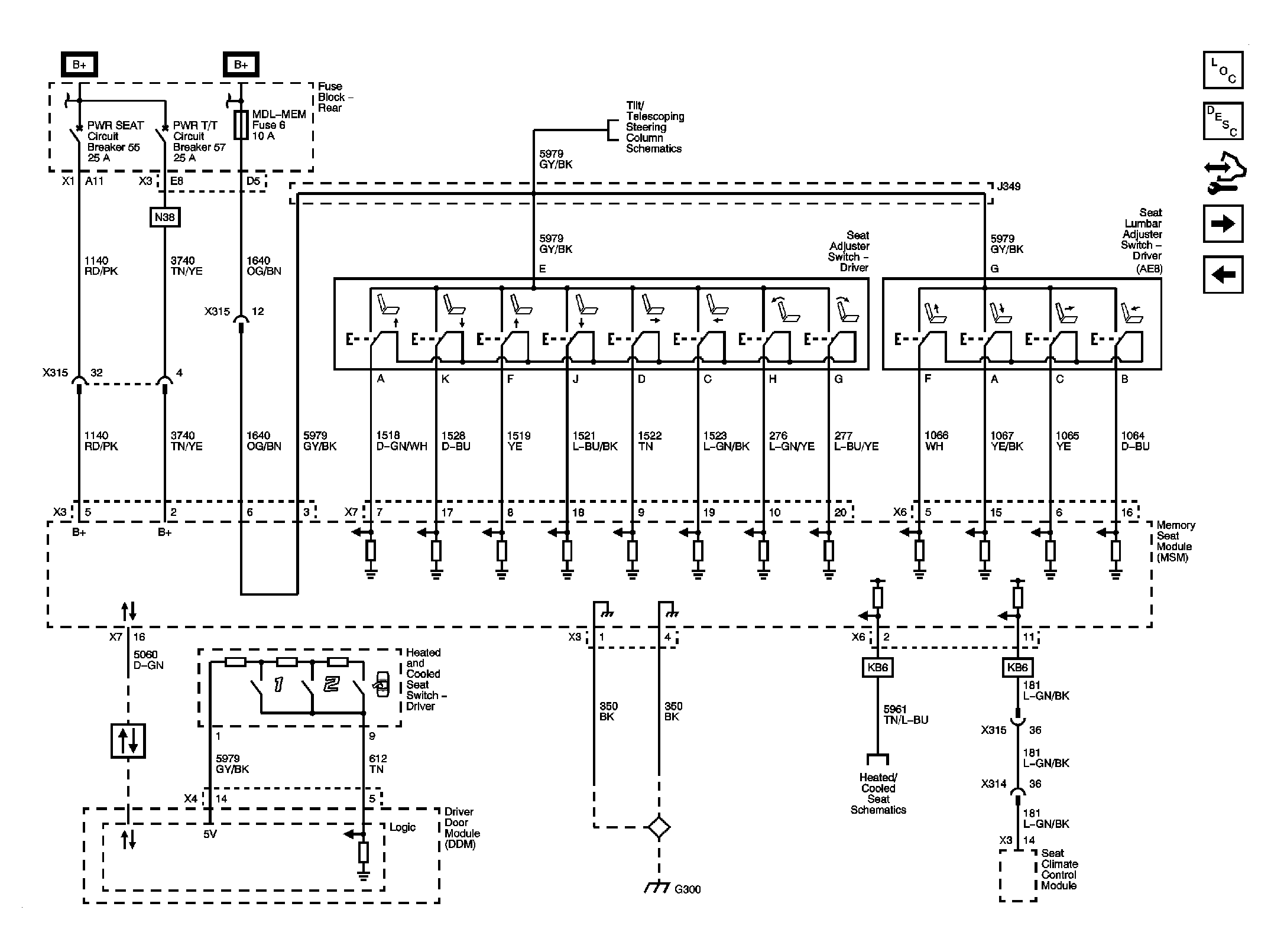

Fig 2: With A45
GM1886914Courtesy of GENERAL MOTORS CORP.

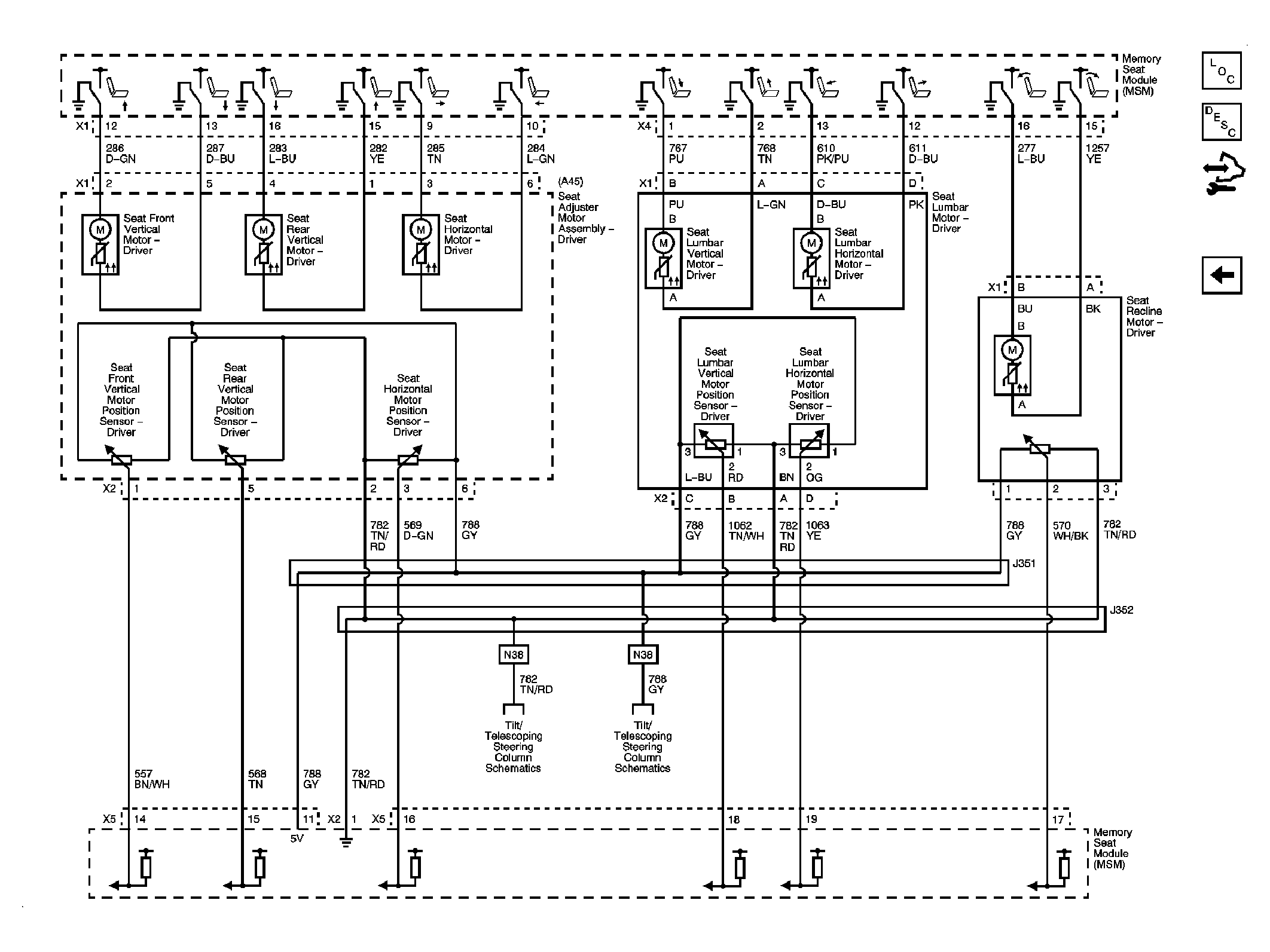

Fig 3: Position Sensors
GM1886916Courtesy of GENERAL MOTORS CORP.
