Transmission Rear Mount Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

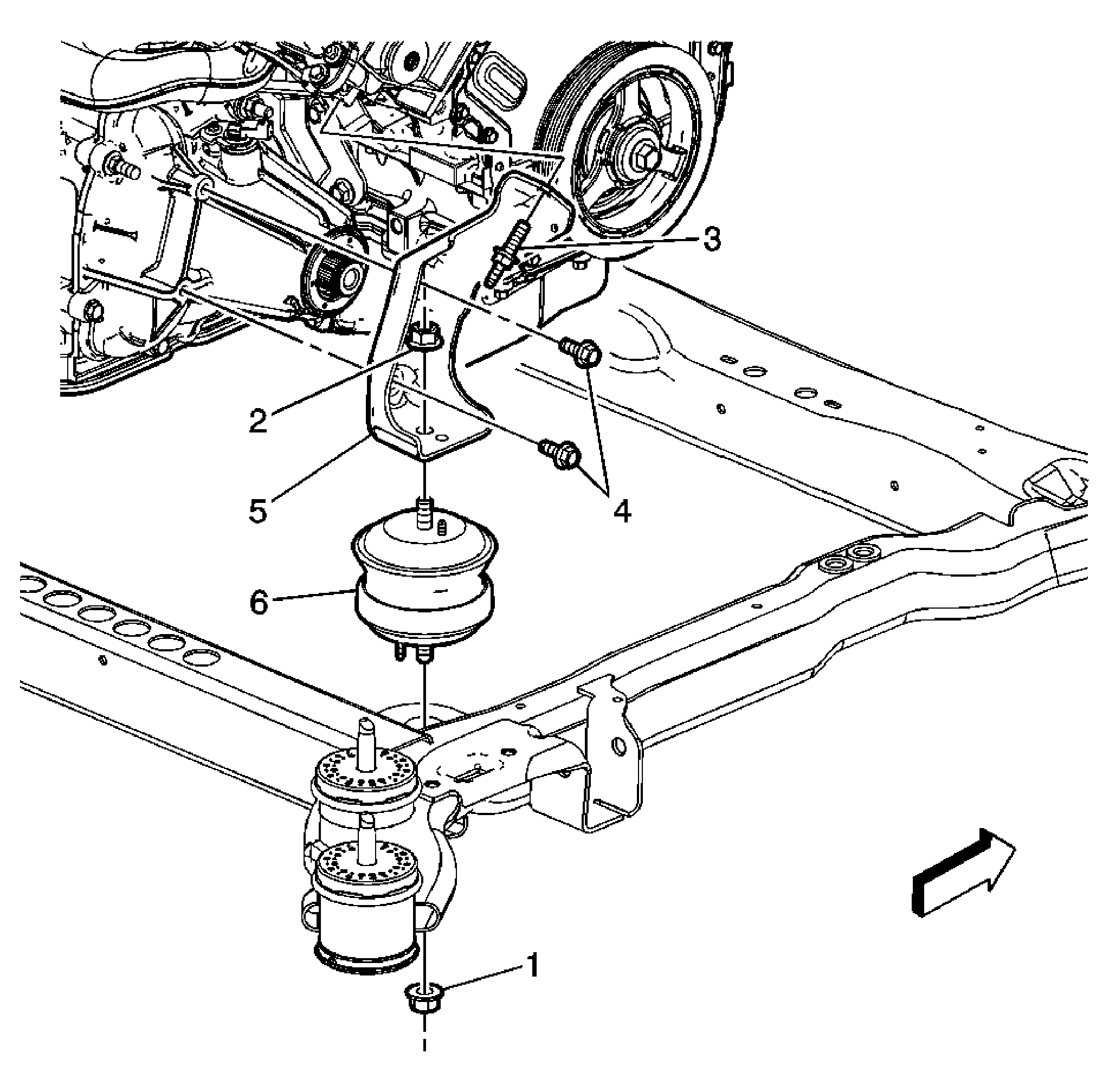

Fig 1: View Of Rear Transmission Mount

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the right front tire and wheel. Refer to Tire and Wheel Removal and Installation . Support the transaxle with a suitable stand.
1	Lower Transaxle Mount Nut Tighten: 80 N.m (59 lb ft)
2	Upper Transaxle Mount Nut Tighten: 80 N.m (59 lb ft)
3	Transaxle Mount Bracket to Engine Stud Tighten: 73 N.m (54 lb ft)
4	Transaxle Mount Bracket to Transaxle Bolt (Qty: 2) Tighten: 73 N.m (54 lb ft)
5	Transaxle Mount Bracket
6	Transaxle Mount
