Installation Procedure
WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

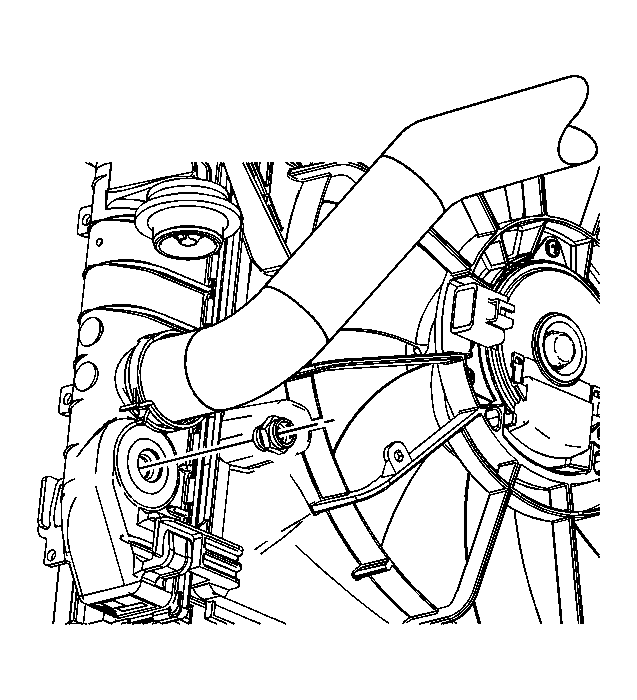

- Install the TOC fitting to the radiator.
Tighten: Tighten the fitting to 18 N.m (13 lb ft).
- Connect the TOC line to the TOC fitting. Refer to Transmission Fluid Cooler Hose/Pipe Quick-Connect Fitting Disconnection and Connection .
- Snap the plastic cap onto the TOC fitting.
- Ensure that the plastic cap is fully seated against the fitting.
- Ensure that no gap is present between the cap and the fitting.
- Remove the drain pan from under the vehicle.
- Lower the vehicle.
- Inspect the fluid level and add fluid if necessary. Refer to Transmission Fluid Check .
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
Ensure the cooler line being installed has a plastic cap on the end that connects to the quick connect fitting. If no plastic cap exists, or the plastic cap is damaged, obtain a new cap. Install the cap on to the cooler line prior to cooler line installation.
Do not manually depress the retaining clip when installing the plastic cap.
Do not manually depress the retaining clip when installing the plastic cap.
