Installation Procedure
WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
- For assembly of the lower control valve body assembly. Refer to Control Valve Lower Body Assemble .

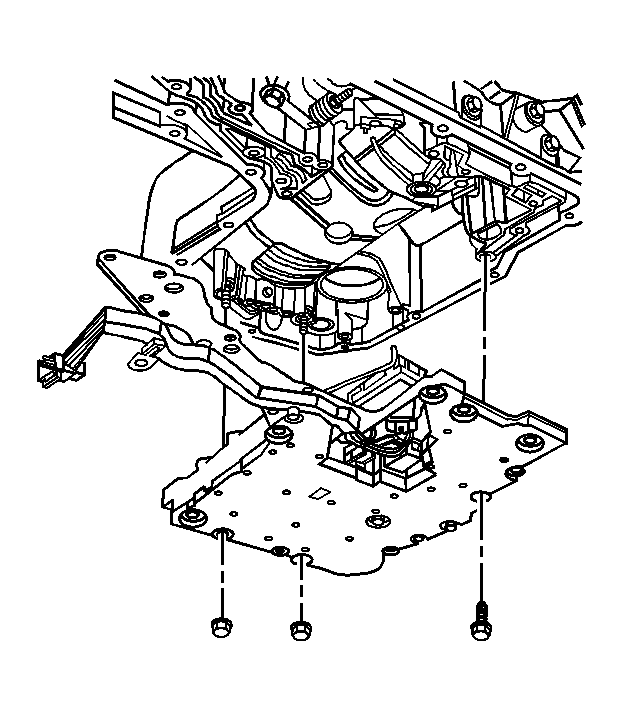

- Install the lower valve assembly (consisting of the channel plate, control valve body, accumulator assembly, and the wire harness extension) to the transaxle case as a single unit.
- Place the Lower valve assembly over the forward support studs.
- Hand start the bolts and nuts to the lower valve assembly.

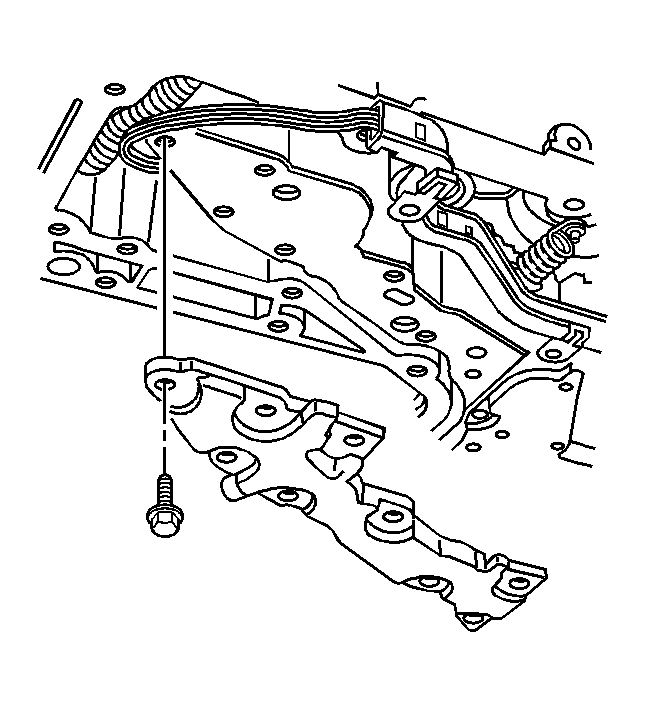

- Install the oil transfer plate.
- Position the wire harness extension retaining clip over the appropriate bolt hole in the oil transfer plate.
- Hand start the bolts to the oil transfer plate.
Tighten: Tighten the Lower valve assembly and the oil transfer plate bolts and nuts to 11 N.m (97 lb in).
- Insert the manual valve link (3) into the inside detent lever (1).
Clip the manual valve link retainer (2) onto the manual valve link (3).
- Connect the wire harness extension to the wire harness assembly.
- Install the bottom pan and seal, the scavenger screens, and the lip seals. Refer to Transfer Oil Pump Inlet Screen and Pipe Seal Replacement .
- Reset the TAP values. Refer to Transmission Adaptive Functions .
NOTE:
Refer to Fastener Notice
.
IMPORTANT:
Do not reuse retainer (2), it must be replaced.
IMPORTANT:
It is recommended that transmission adaptive pressure (TAP) information be reset.
Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, The ECM, PCM or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
Resetting the TAP values using a scan tool will erase all learned values in all cells. As a result, The ECM, PCM or TCM will need to relearn TAP values. Transmission performance may be affected as new TAP values are learned.
