Reaction Carrier/Shell and Third Clutch Installation

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

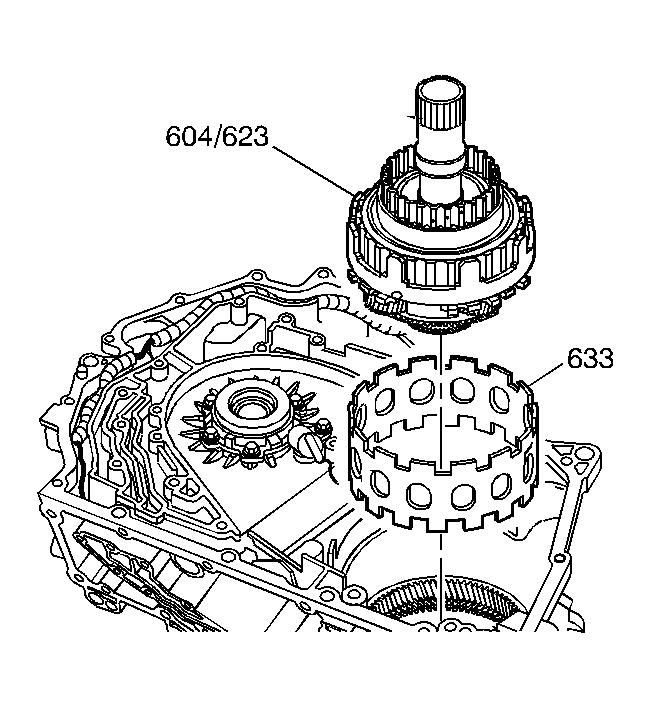

    Fig 1: View Of Reaction Carrier/Shell And Third Clutch
    GM11946Courtesy of GENERAL MOTORS CORP.
  1. Inspect the reaction shell (633) for damage or wear.
  2. Install the reaction shell (633) into the forward clutch housing, with the small teeth facing down.
    3. IMPORTANT: Following installation, the reaction carrier teeth must seat in the reaction shell.
  3. Install the third clutch housing and reaction carrier assembly (604/623) into the case. Twist the housing to install and to insure proper seating.
