Lower Controls Assembly Installation

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

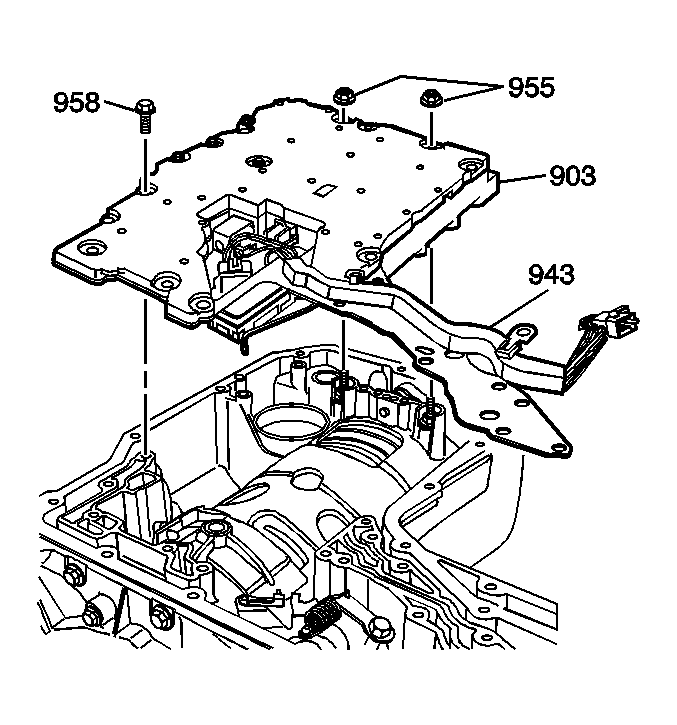

    Fig 1: View Of Control Valve Body/Accumulator Assembly & Lower Control Valve Body Wire Harness Extension
    GM509566Courtesy of GENERAL MOTORS CORP.
  1. Place the lower controls assembly over the forward support studs.
    2. IMPORTANT: The bolts (958) without the flange are located next to the oil transfer plate.
  2. Hand start the bolts (534, 958) into the channel plate.
  3. Install the two nuts (955) on the forward support studs.
    4. Fig 2: View Of Oil Transfer Plate, Bolts & Wire Harness Retaining Clips
    GM533807Courtesy of GENERAL MOTORS CORP.
  4. Place the oil transfer plate (956) over the open gasket area.
  5. Position the lower control valve body wire harness retaining clips (943).
    6. NOTE: Refer to Fastener Notice .
  6. Hand start the bolts (534) to hold the oil transfer plate (956) in place with the lower control valve body wire harness retaining clips (943) attached properly.

    Tighten:  Tighten the bolts and nuts (534) to 8-14 N.m (6-10 lb ft).
