Lower Control Valve Body Assembly Removal

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

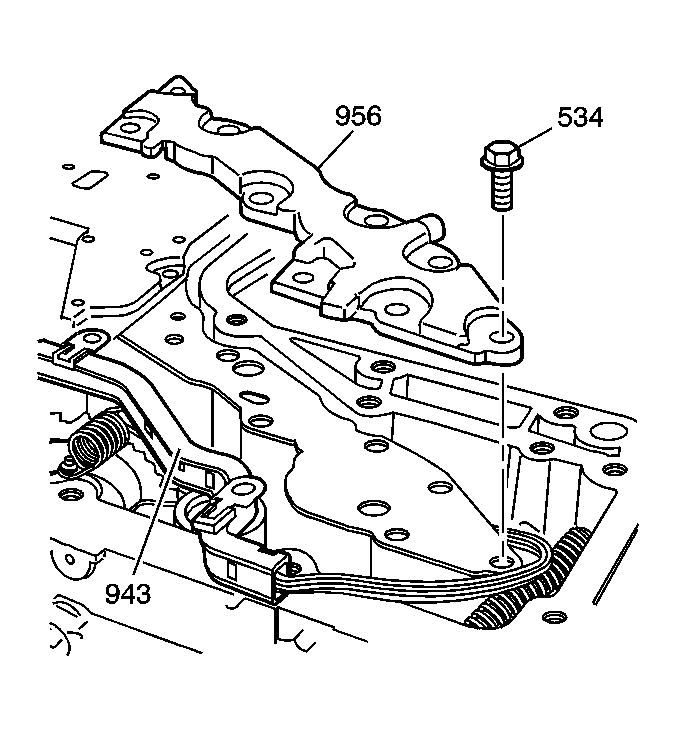

    Fig 1: Oil Transfer Plate Retaining Bolt
    GM509544Courtesy of GENERAL MOTORS CORP.
  1. Remove the nine 10 mm bolts (534) from the oil transfer plate (956) and wire harness assembly (943).
  2. Remove the oil transfer plate (956).
    3. Fig 2: Identifying Wire Harness Extension
    GM509552Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the wire harness extension (943) from the wire harness assembly (12).
    4. Fig 3: Manual Valve Link
    GM1592017Courtesy of GENERAL MOTORS CORP.
    IMPORTANT: Do not reuse retainer (915), it must be replaced.
  4. Use a small screwdriver in order to disconnect the manual valve link retainer (915) from the manual valve link (913).
    5. IMPORTANT: Do not pry against the internal mode switch assembly.
  5. Lift the manual valve and link assembly link (916) out of the inside detent lever (17).
    6. Fig 4: View Of Control Valve Body/Accumulator Assembly & Lower Control Valve Body Wire Harness Extension
    GM509566Courtesy of GENERAL MOTORS CORP.
  6. Remove the two 10 mm nuts (955) and the fourteen 10 mm bolts (958) from the lower control valve body assembly (903).
  7. Lift the lower channel plate, control valve body and accumulator assembly (903) and the lower control valve body wire harness extension (943) from the case as a single unit.
