Transmission Identification Information
WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

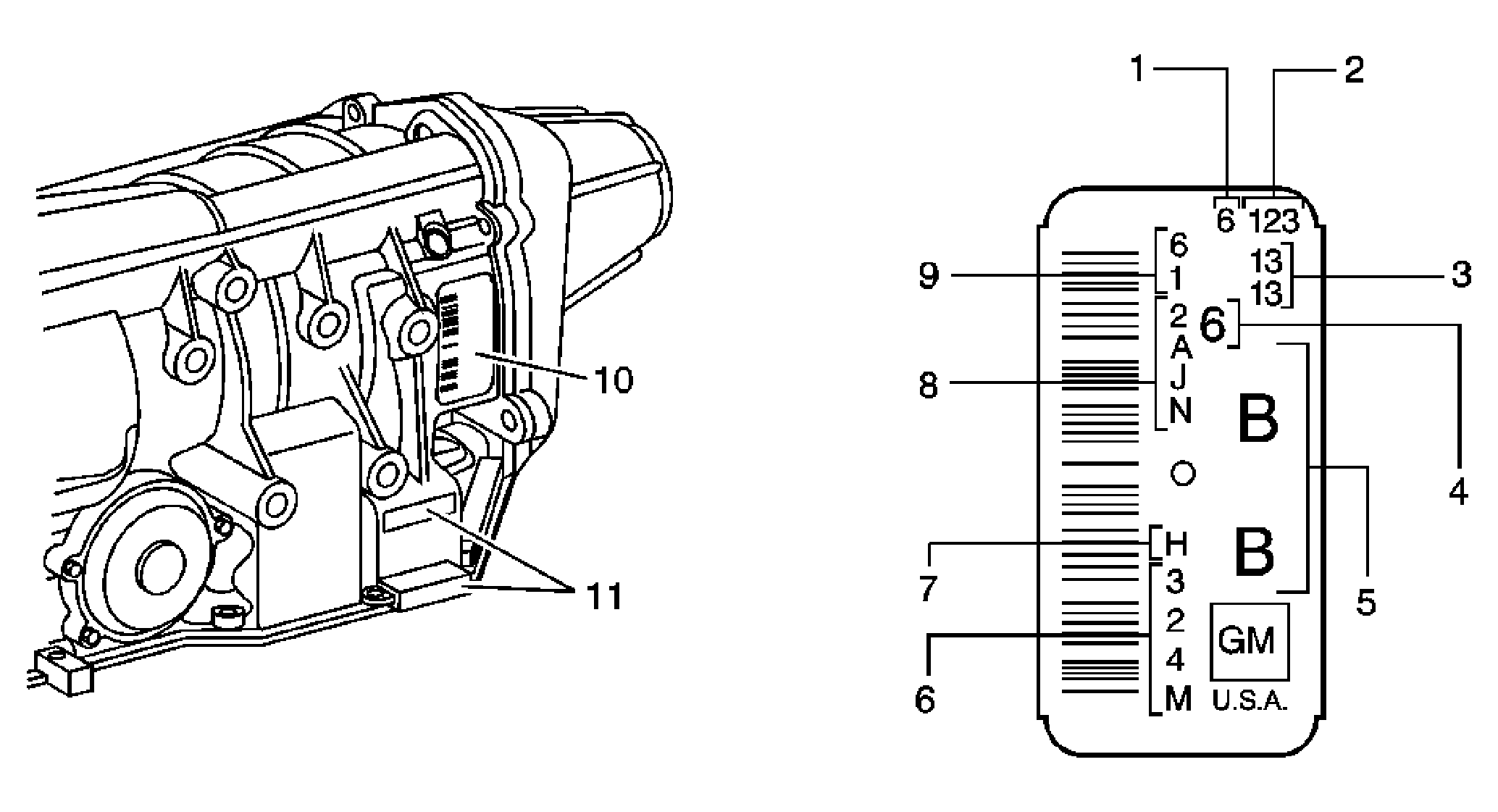

| Callout |
Component Name |
| 1 |
Calendar Year 6 = 2006 |
| 2 |
Julian Date of the Year |
| 3 |
Shift and Line Number |
| 4 |
Calendar Year |
| 5 |
Model |
| 6 |
Serial Number in Base Code 31 |
| 7 |
Plant |
| 8 |
Broadcast Date |
| 9 |
Transaxle |
| 10 |
Transaxle ID Tag Location |
| 11 |
Transaxle Partial VIN Location |
