Heated/Cooled Seat Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Driver Heated Seat - KA1

Courtesy of GENERAL MOTORS CORP.

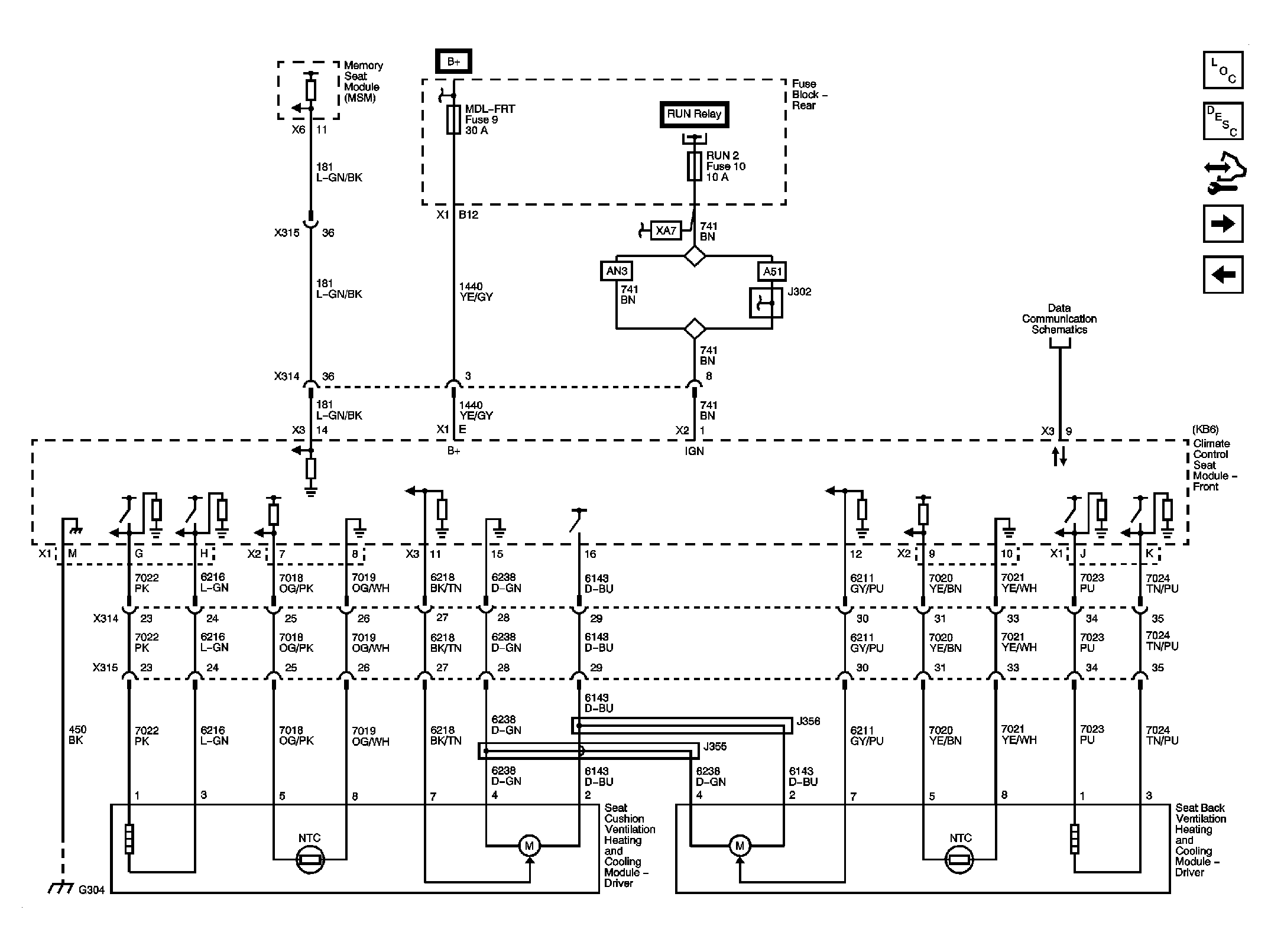

Fig 2: Driver Heated and Cooled Seat - KB6

Courtesy of GENERAL MOTORS CORP.

Fig 3: Driver Heated/Cooled Seat Switch - KA1/KB6

Courtesy of GENERAL MOTORS CORP.

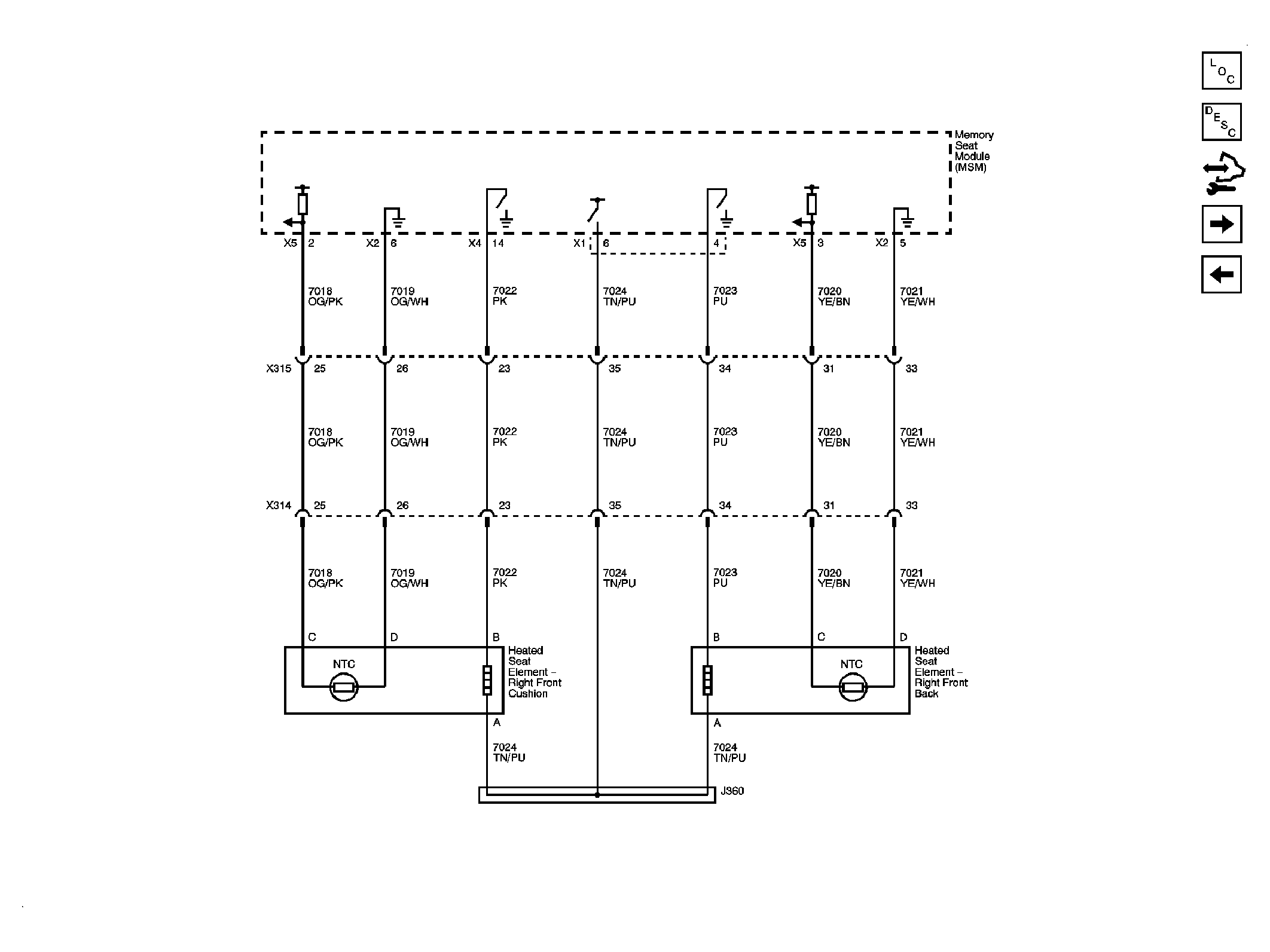

Fig 4: Passenger Heated Seat - KA1

Courtesy of GENERAL MOTORS CORP.

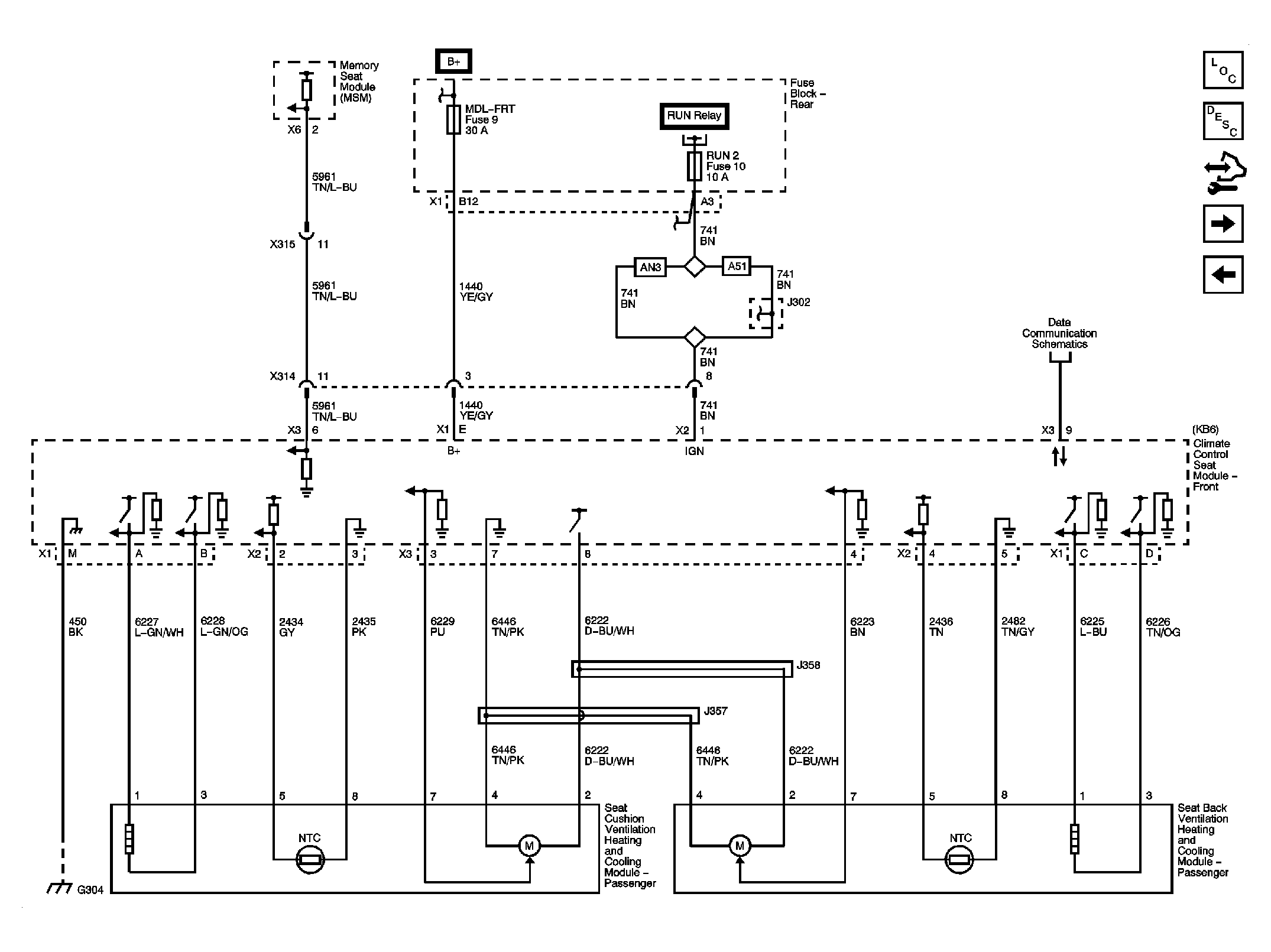

Fig 5: Passenger Heated and Cooled Seat - KB6

Courtesy of GENERAL MOTORS CORP.

Fig 6: Passenger Heated/Cooled Seat Switch - KA1/KB6

Courtesy of GENERAL MOTORS CORP.
