Sunroof Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

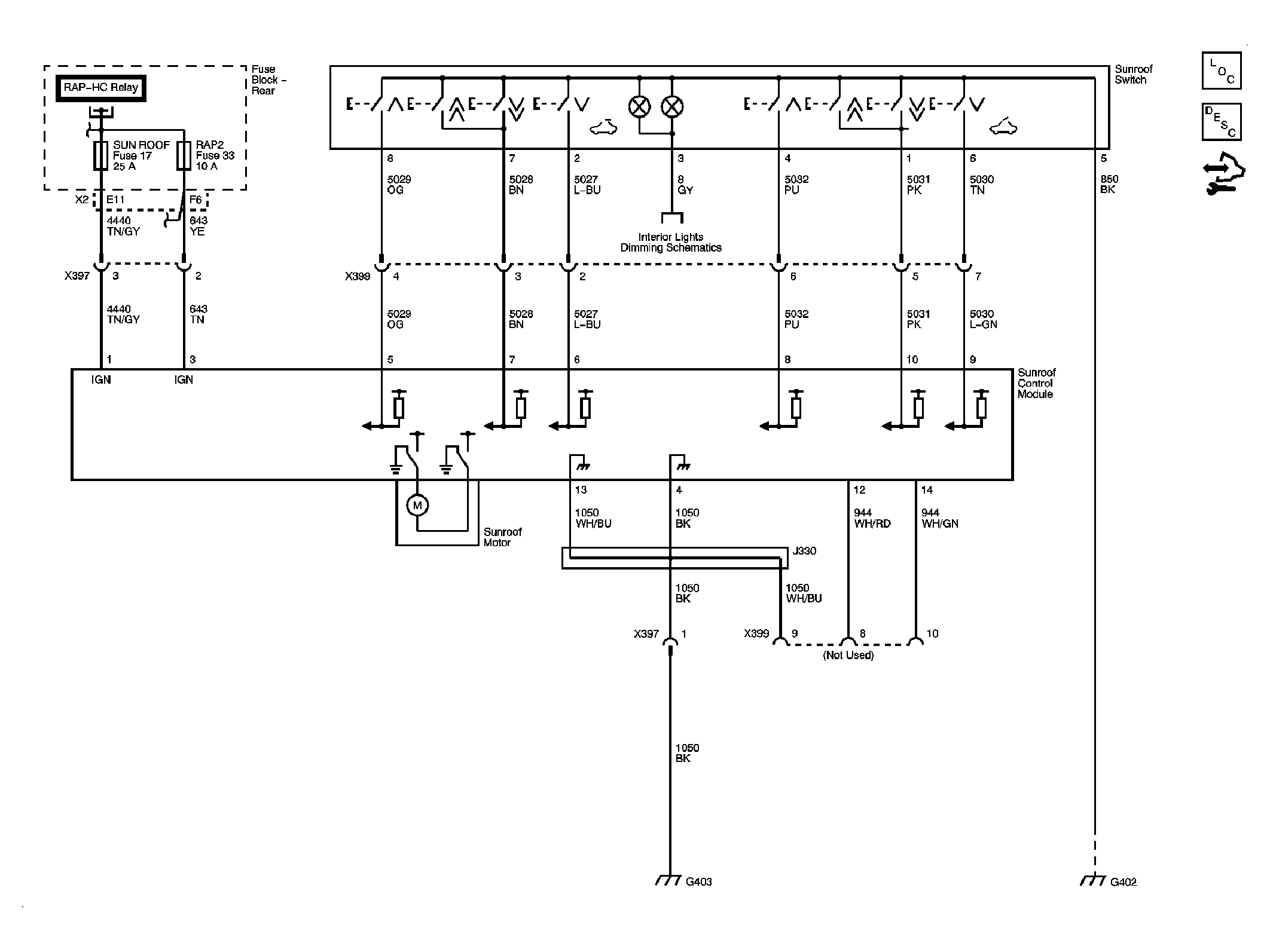

Fig 1: Identifying Sunroof Schematics
GM1886908Courtesy of GENERAL MOTORS CORP.
