Harness Routing Views

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

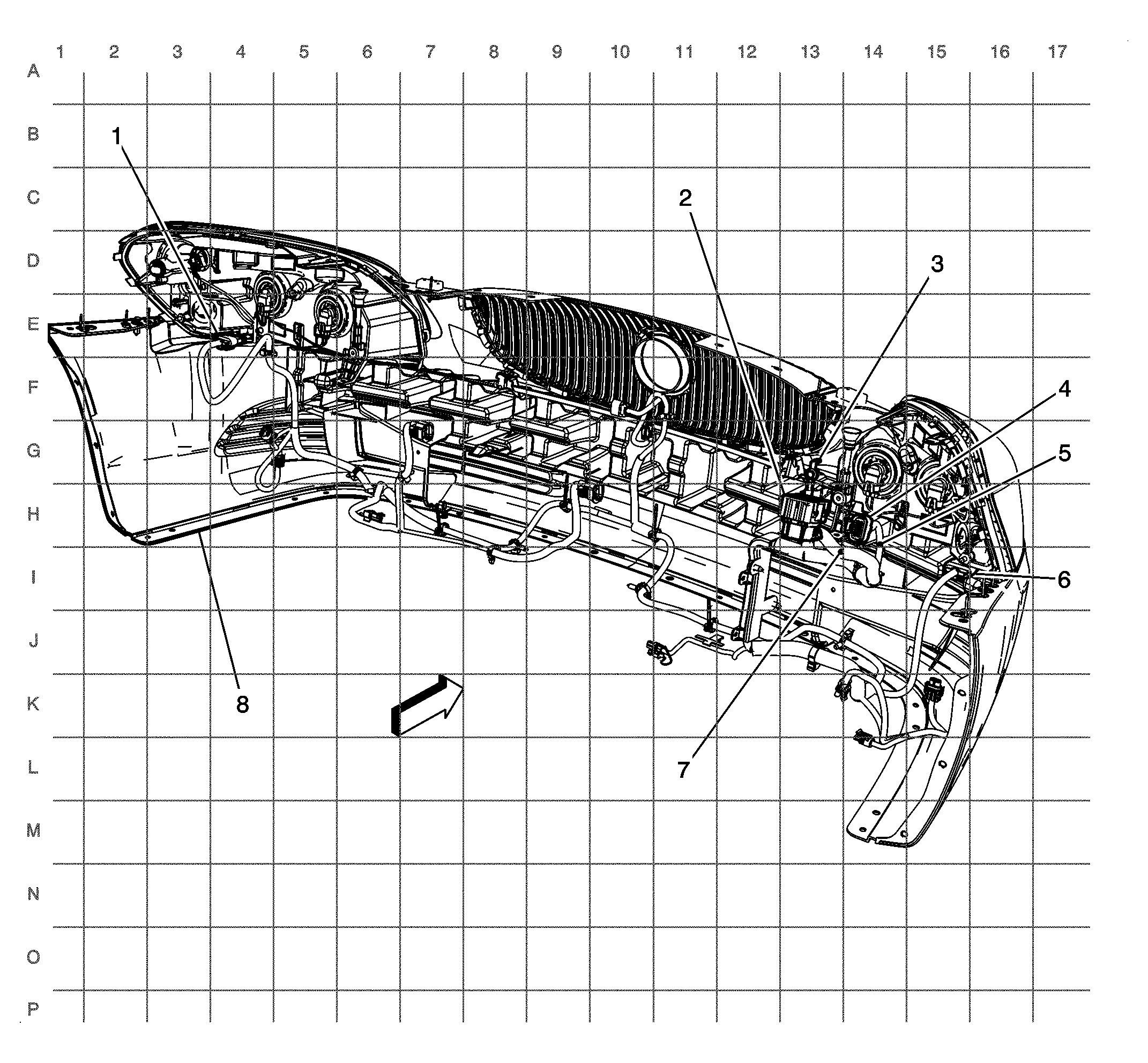

Fig 1: View Of Front Fascia & Headlight Harnesses

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X113
2	Fuse Block - Underhood X1
3	G104
4	X120
5	J124
6	X114
7	J125
8	Front Fascia

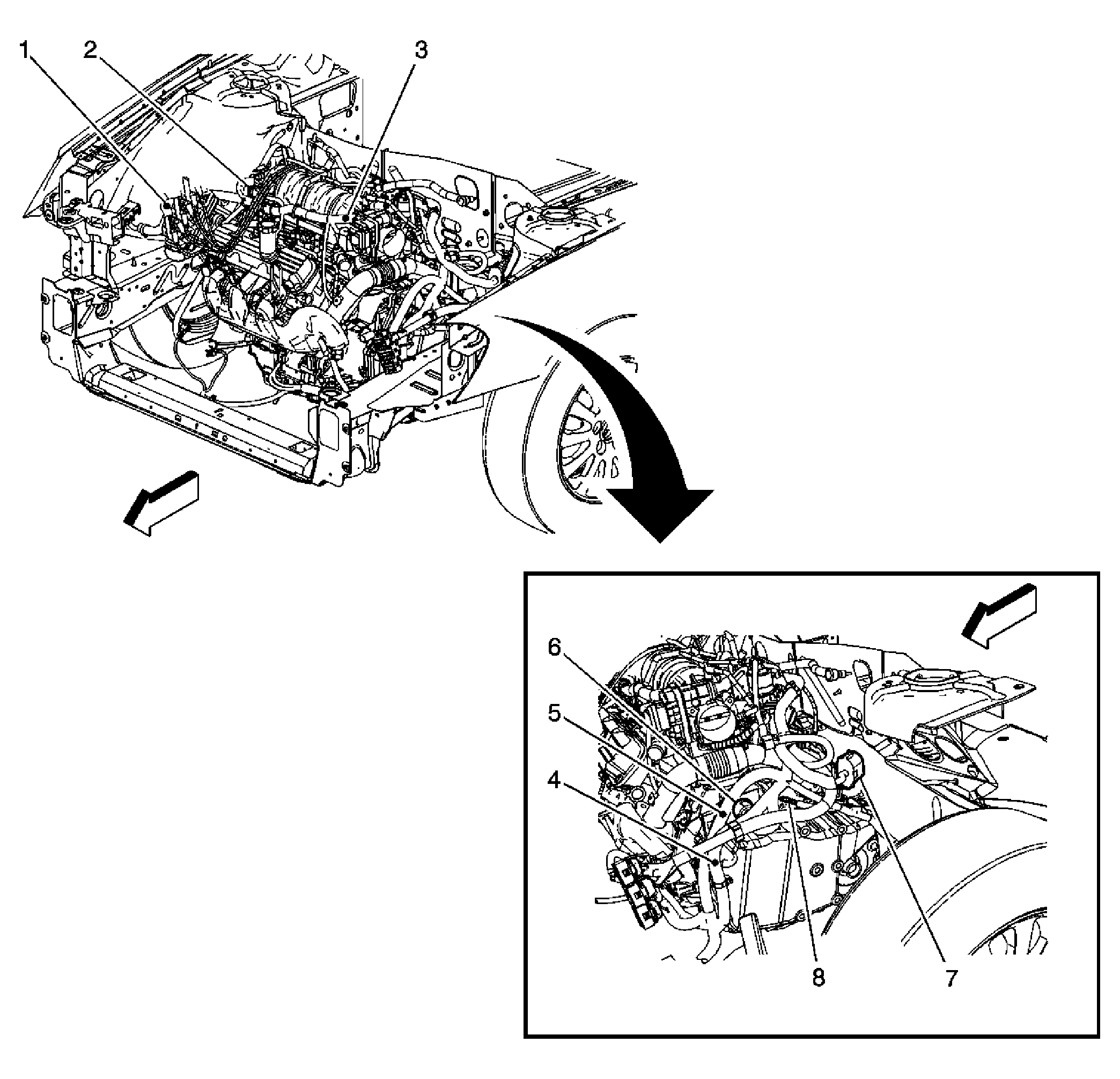

Fig 2: Front Of Engine (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J101
2	X110
3	J109
4	J108
5	J106
6	X101
7	X111
8	G100

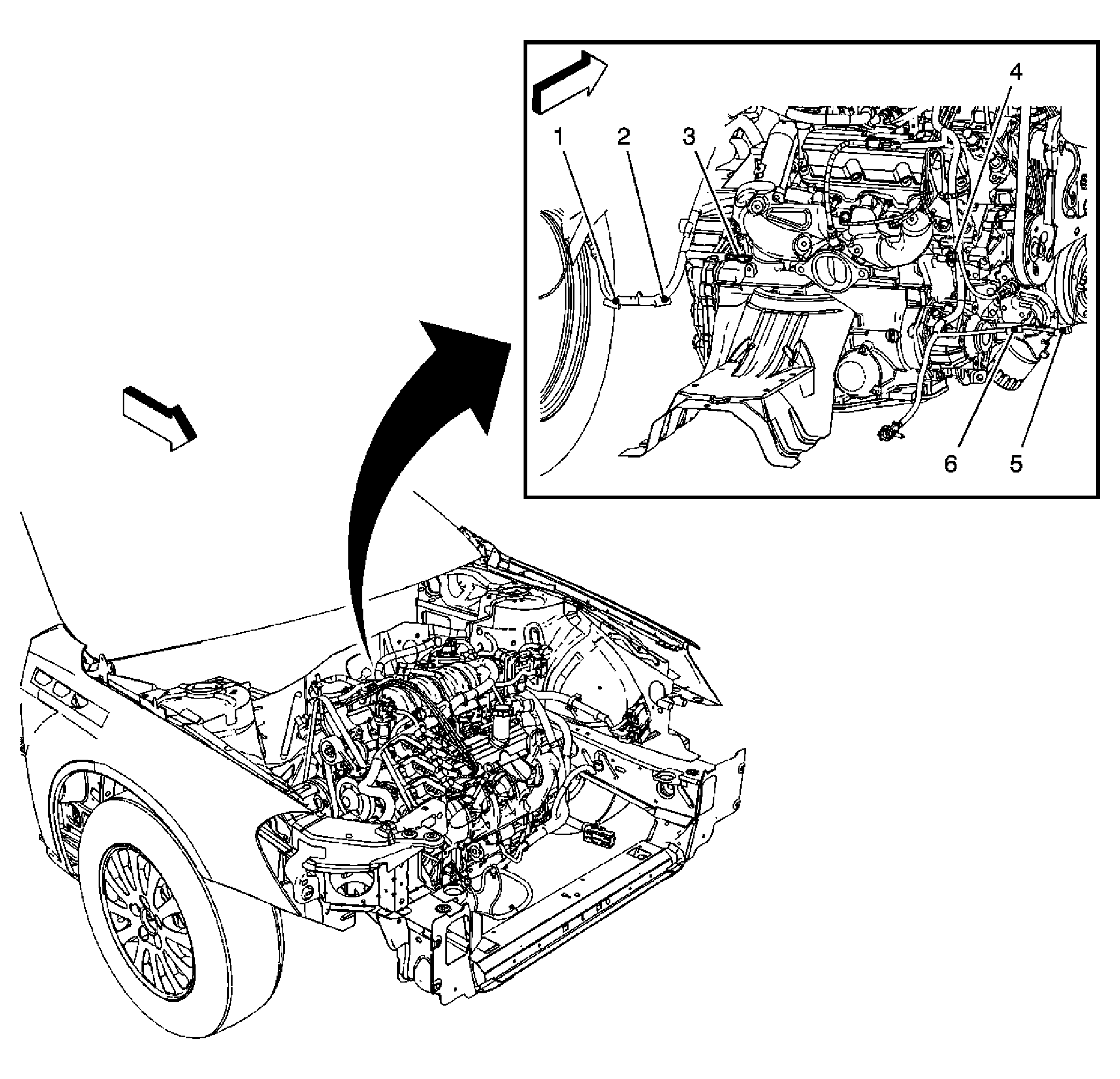

Fig 3: Rear Of Engine (L26)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J116
2	J115
3	G114
4	X108
5	J114
6	J113

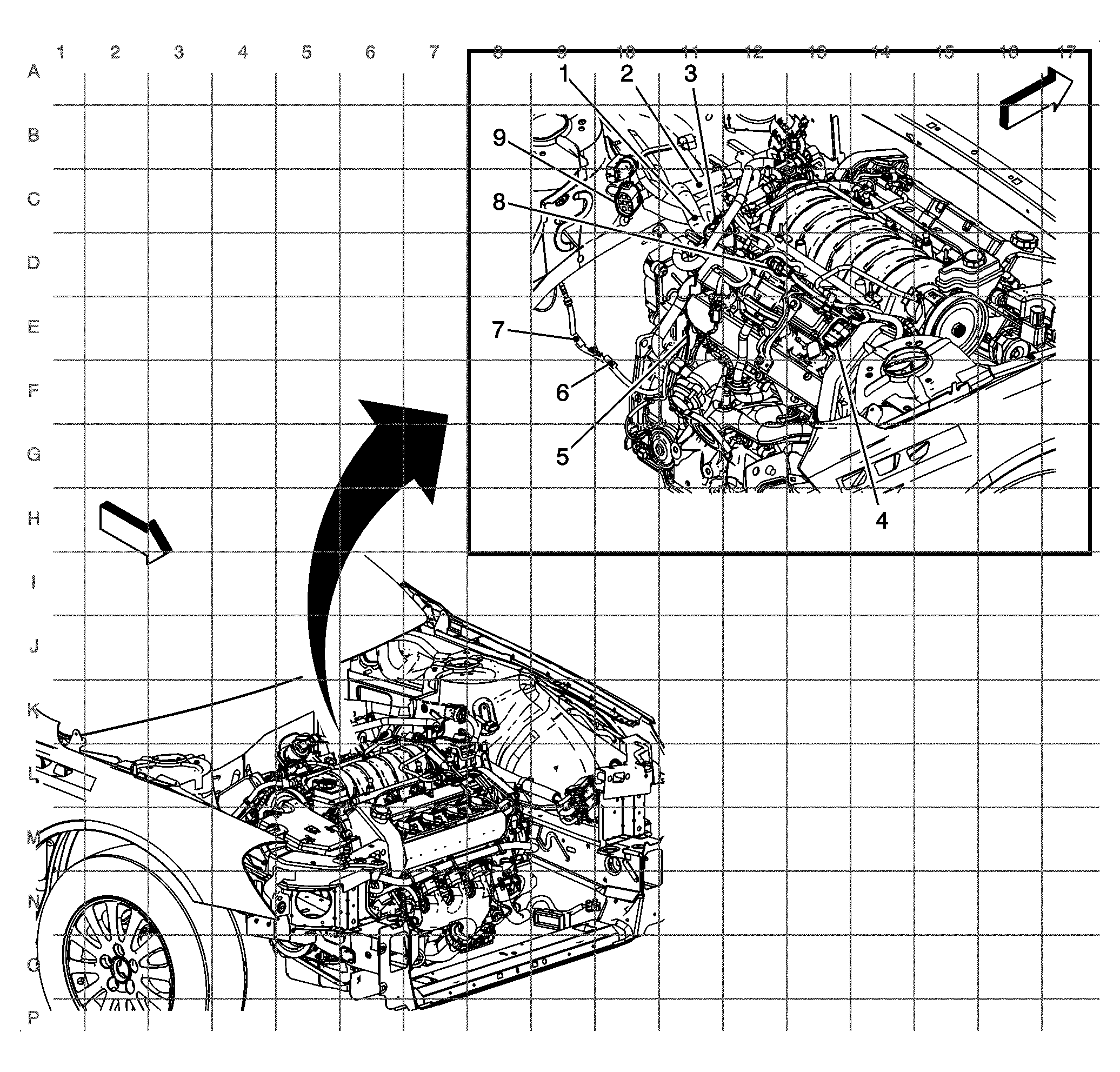

Fig 4: Front Of Engine (LD8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J105
2	J106
3	G115
4	X101
5	G112
6	G114
7	J100
8	X139
9	J111

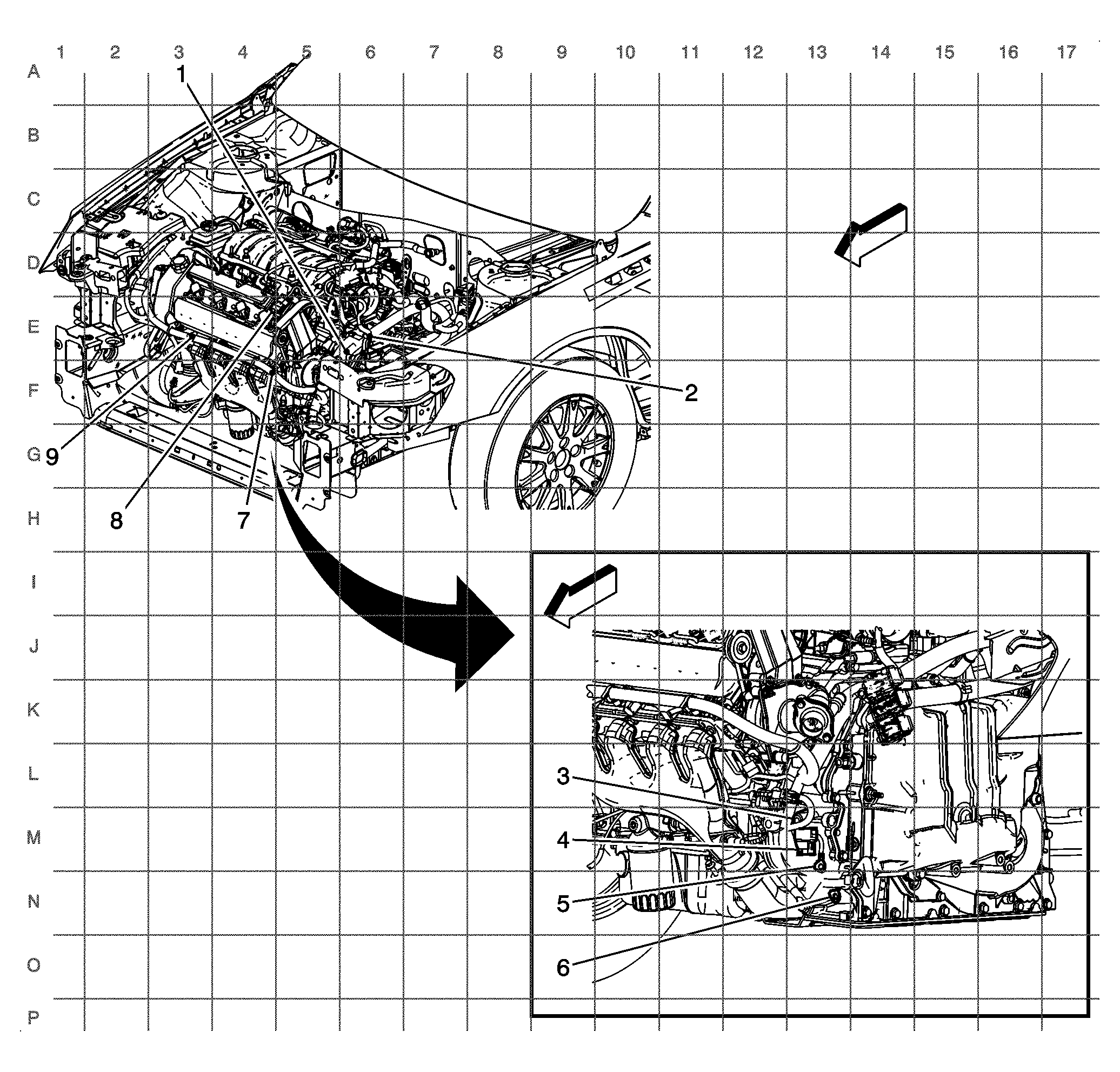

Fig 5: Rear Of Engine (LD8)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J110
2	J102
3	X138
4	X140
5	G111
6	G100
7	J113
8	J114
9	X161
10	X111

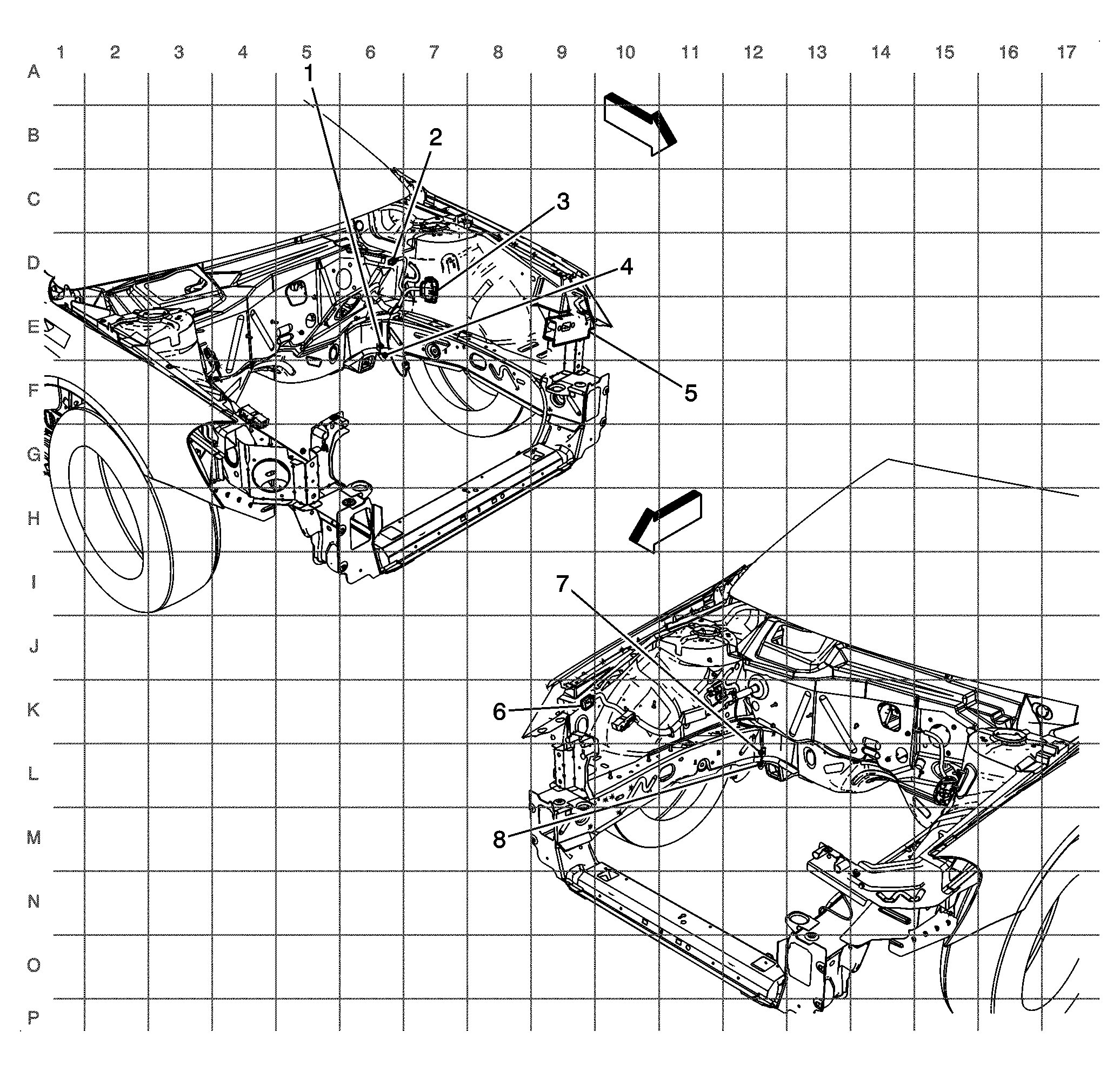

Fig 6: Body Harness - Front Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J127
2	X100
3	X111
4	J126
5	G101
6	X120
7	J128
8	J129

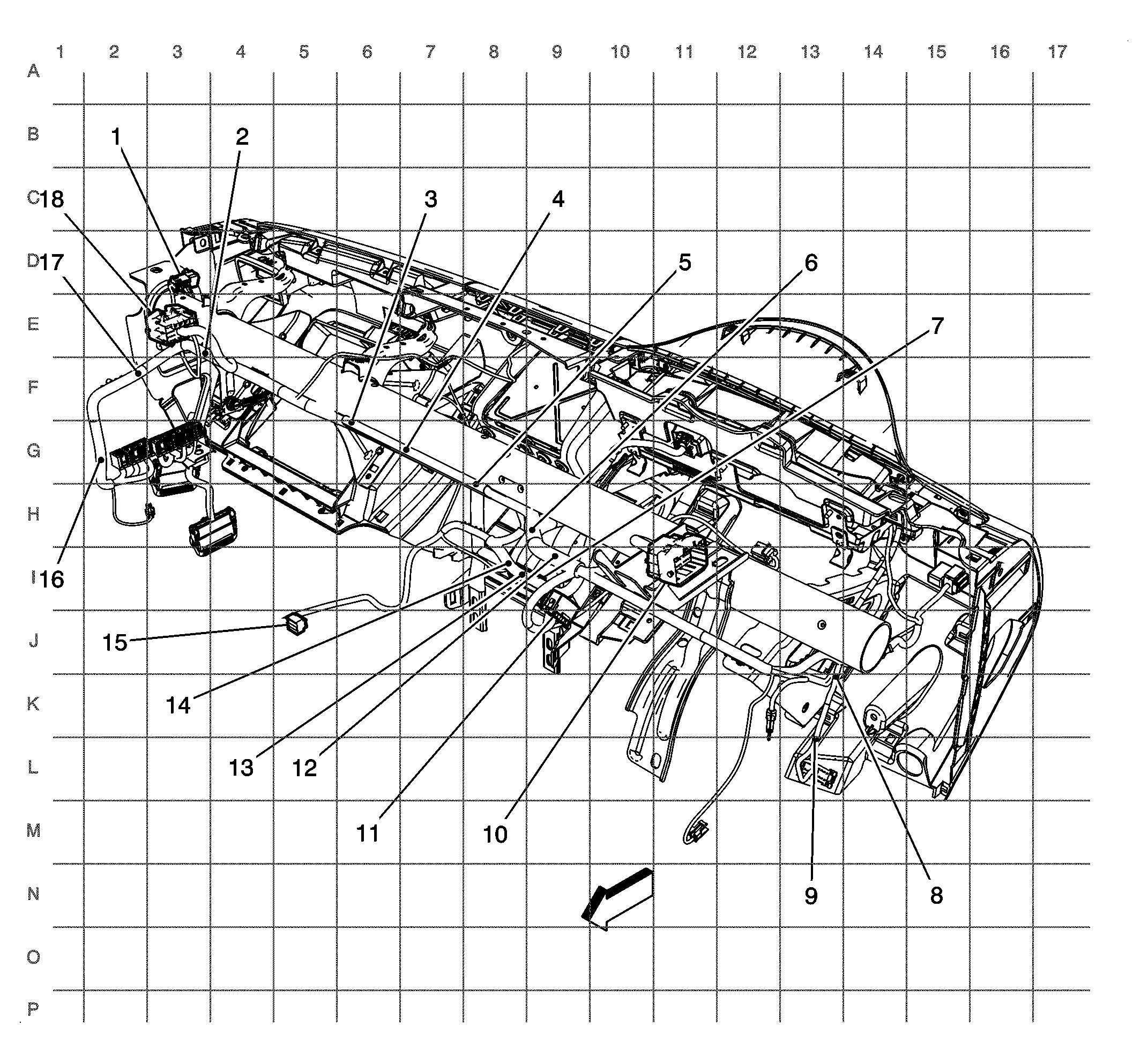

Fig 7: View Of I/P Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X208
2	J206
3	J202
4	J212
5	J210
6	J200
7	X219 (AN3)
8	J207
9	J208
10	X201
11	X203
12	J203
13	J213
14	J229
15	X202
16	J211
17	J230
18	X200

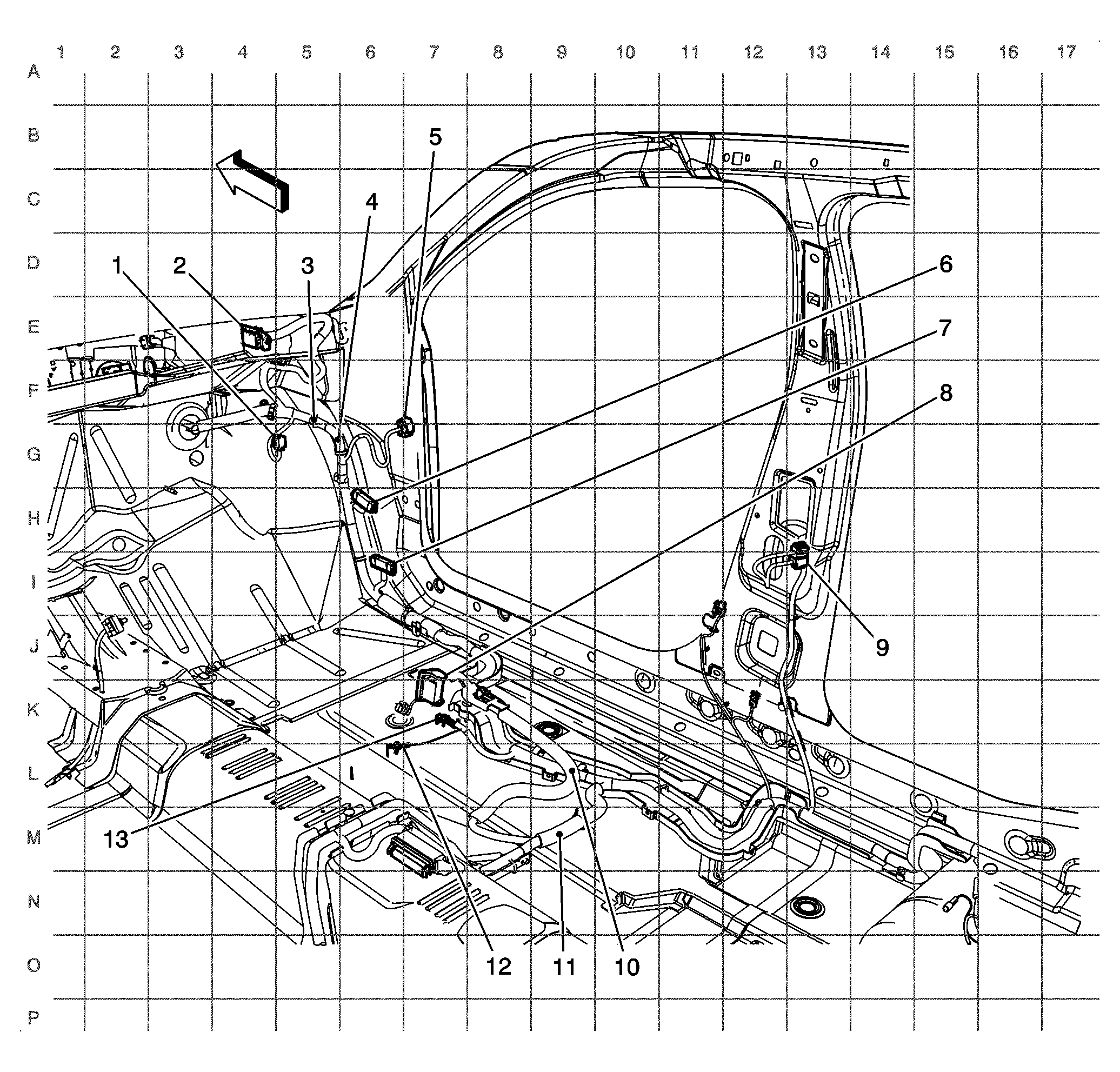

Fig 8: Body Harness - Left Front Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J302
2	X710
3	X315
4	J379
5	J378
6	X201
7	X500
8	X205
9	X207
10	X216
11	X340 (A51)
12	G305
13	G300

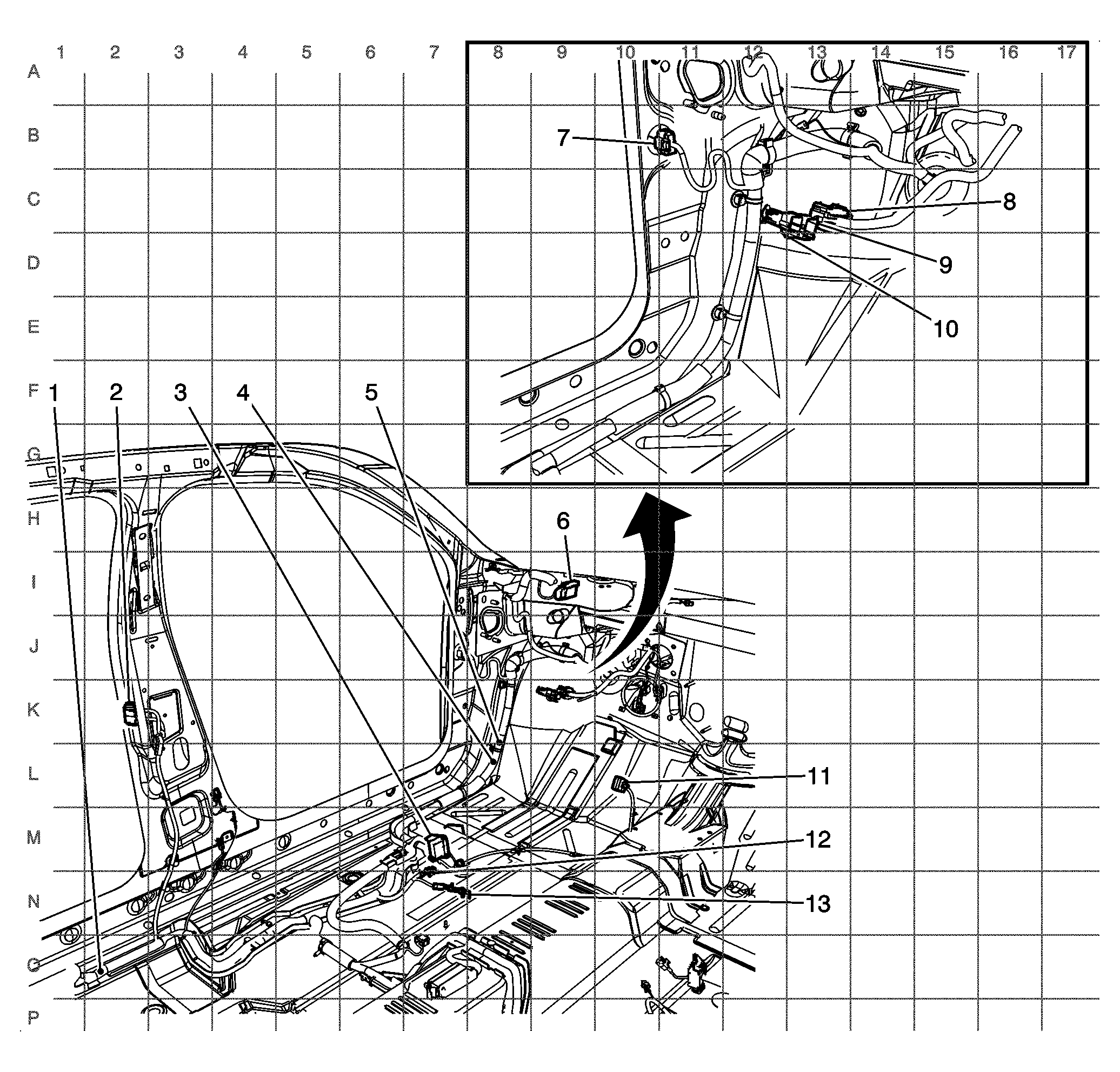

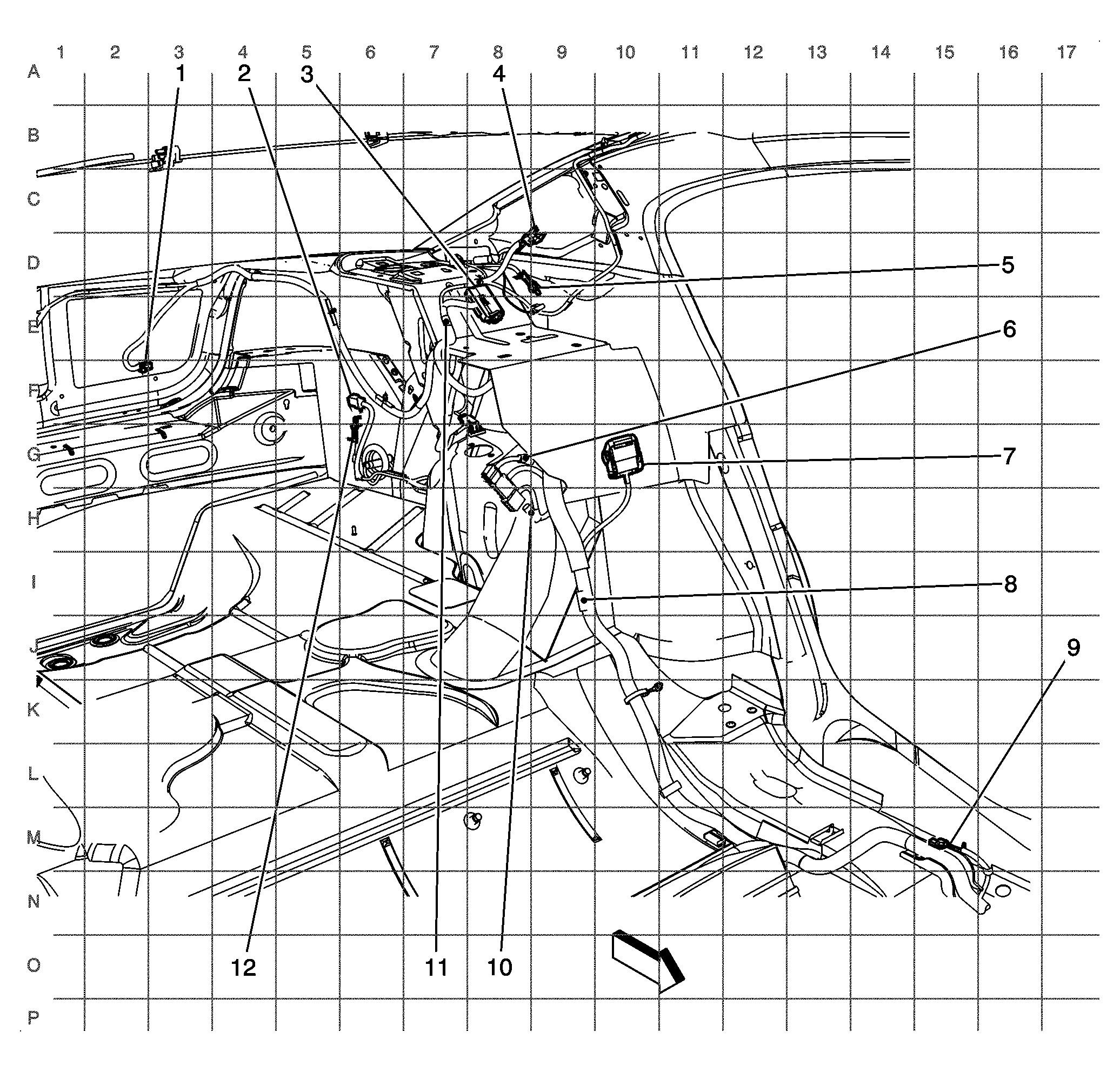

Fig 9: Body Harness - Right Front Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X206
2	X200
3	J377
4	J376
5	X600
6	X325
7	X326
8	X314
9	X810
10	J343
11	J370
12	G302
13	G304

Fig 10: Body Harness - Left Rear Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X901
2	X498
3	X321
4	X311 (AY0)
5	G306
6	J366 (UQA)
7	X445
8	J372
9	G301
10	J365
11	J385
12	G402

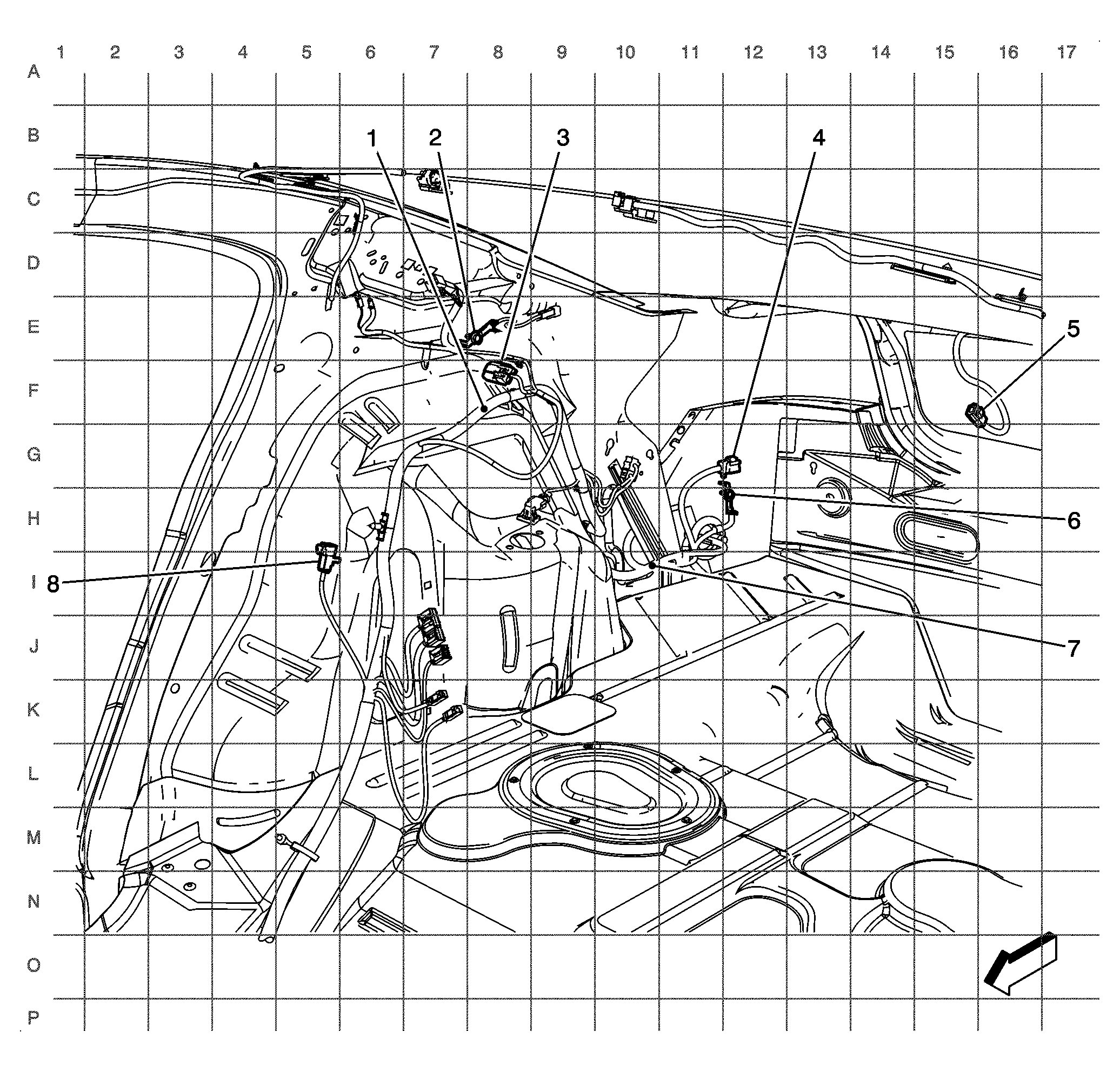

Fig 11: Body Harness - Right Rear Luggage Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J324
2	G306
3	X397 (CF5)
4	X499
5	X900
6	G403
7	J316
8	X497

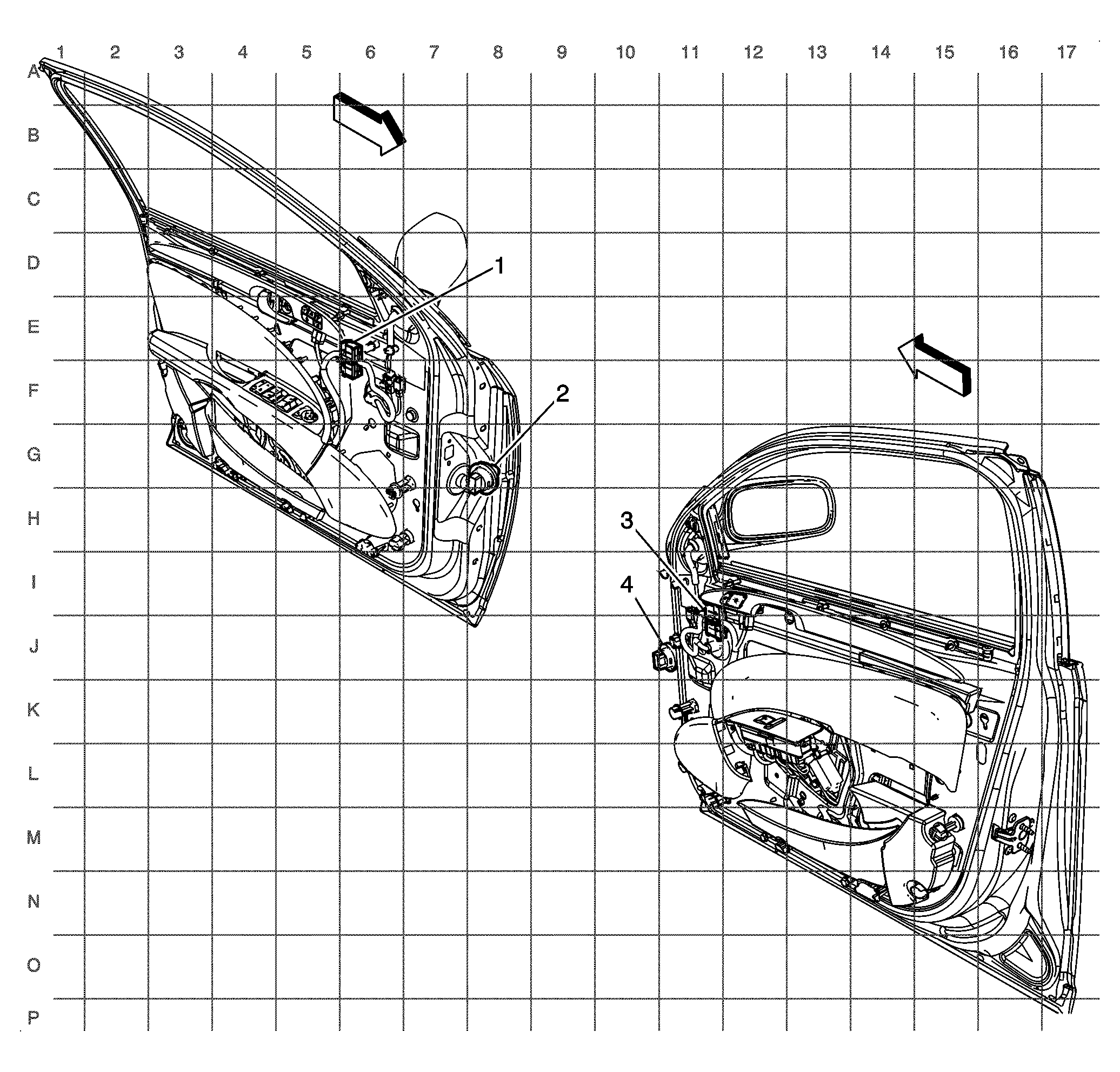

Fig 12: Driver and Passenger Doors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X501
2	X500
3	X601
4	X600

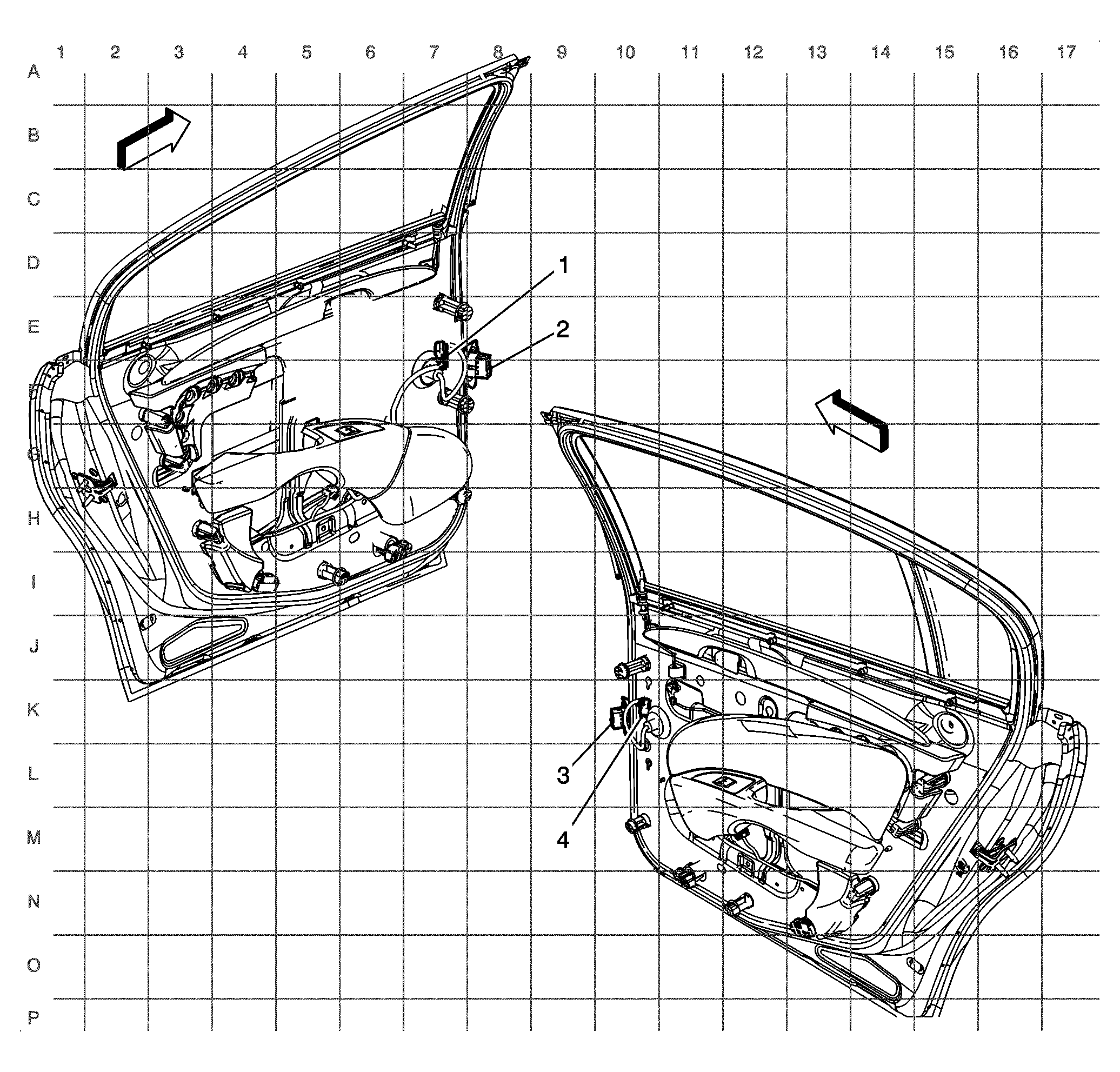

Fig 13: Rear Passenger Doors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X700
2	X810
3	X710
4	X800

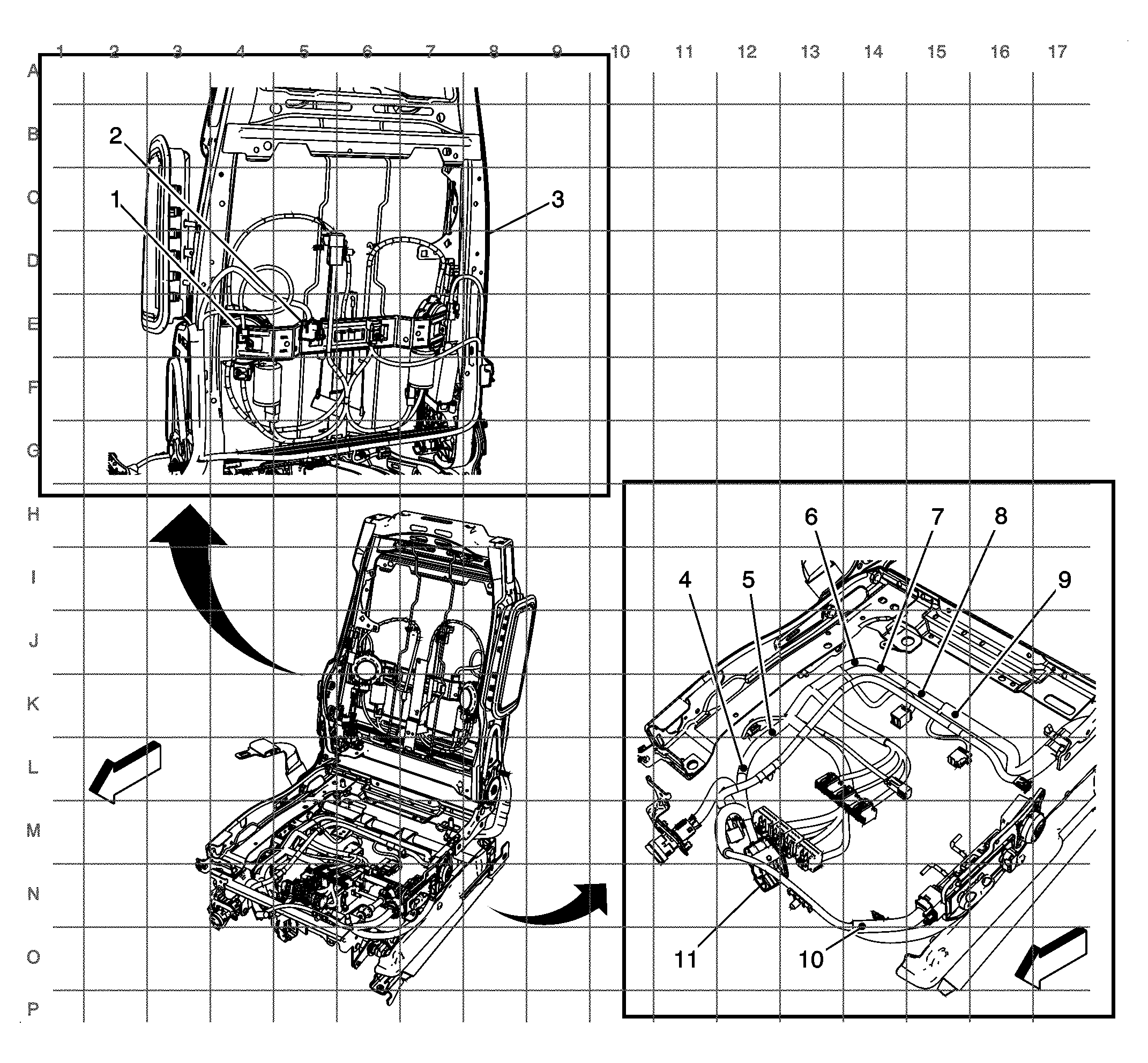

Fig 14: View Of Drivers Seat Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X319
2	X318
3	Seat Frame
4	J305
5	J356
6	J352
7	J355
8	J359
9	J351
10	J349
11	X315

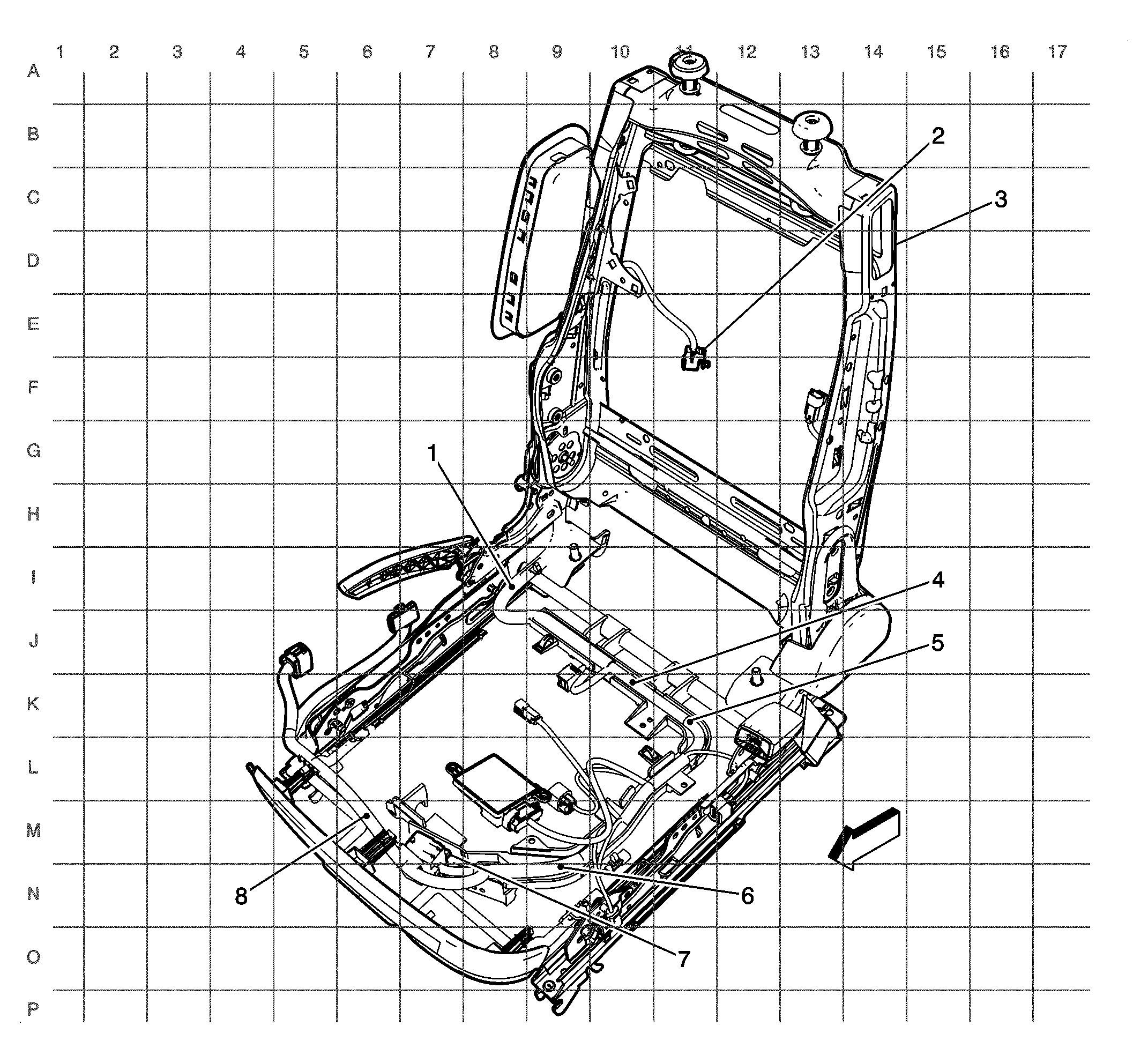

Fig 15: View Of Passenger Seat Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J358
2	X354 (AE8/A45)
3	Seat Frame
4	J360
5	J357
6	J306
7	X314
8	J348

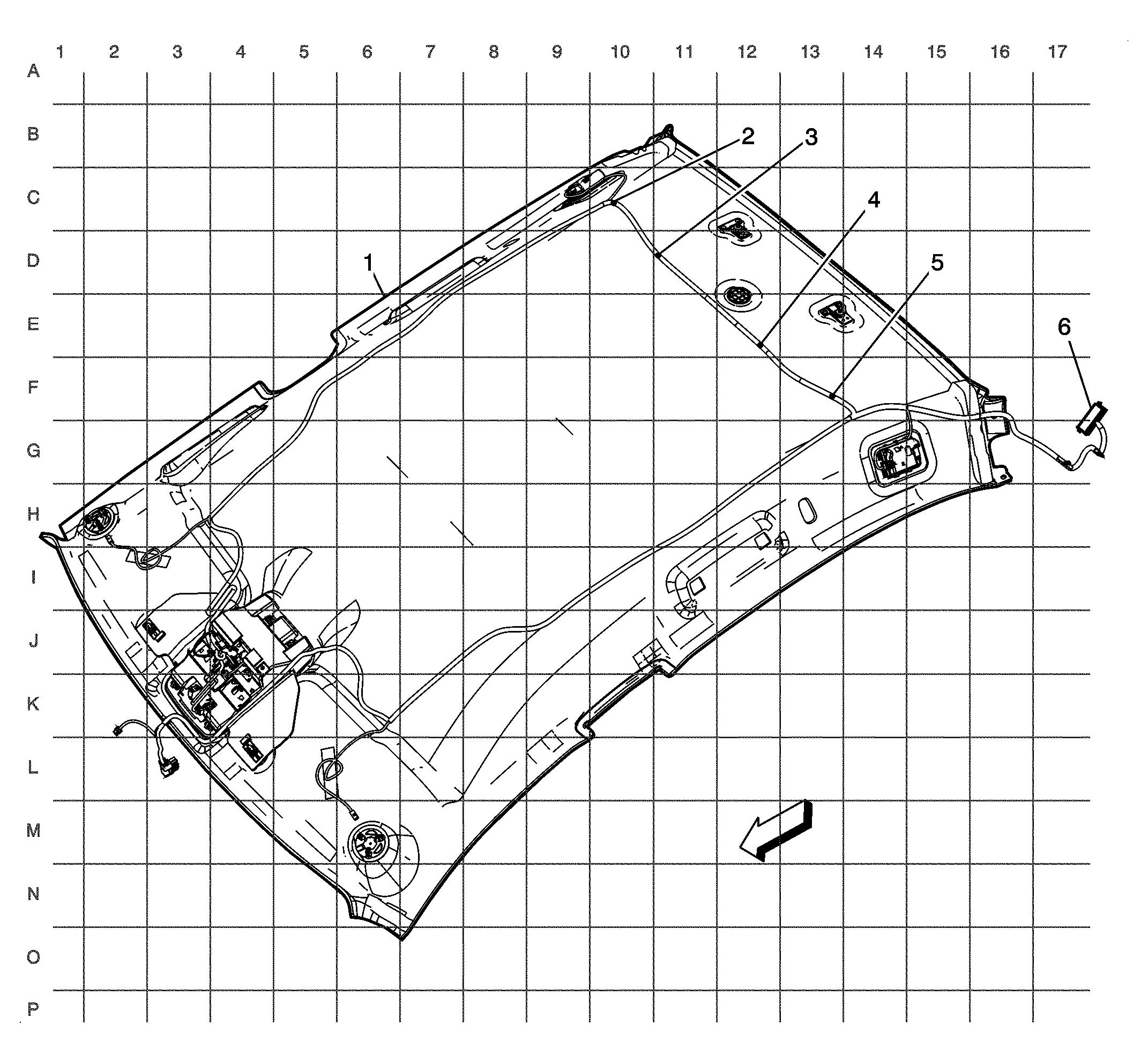

Fig 16: View Of Headliner Harness (w/o CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headliner
2	J385
3	J328
4	J313
5	J312
6	X321

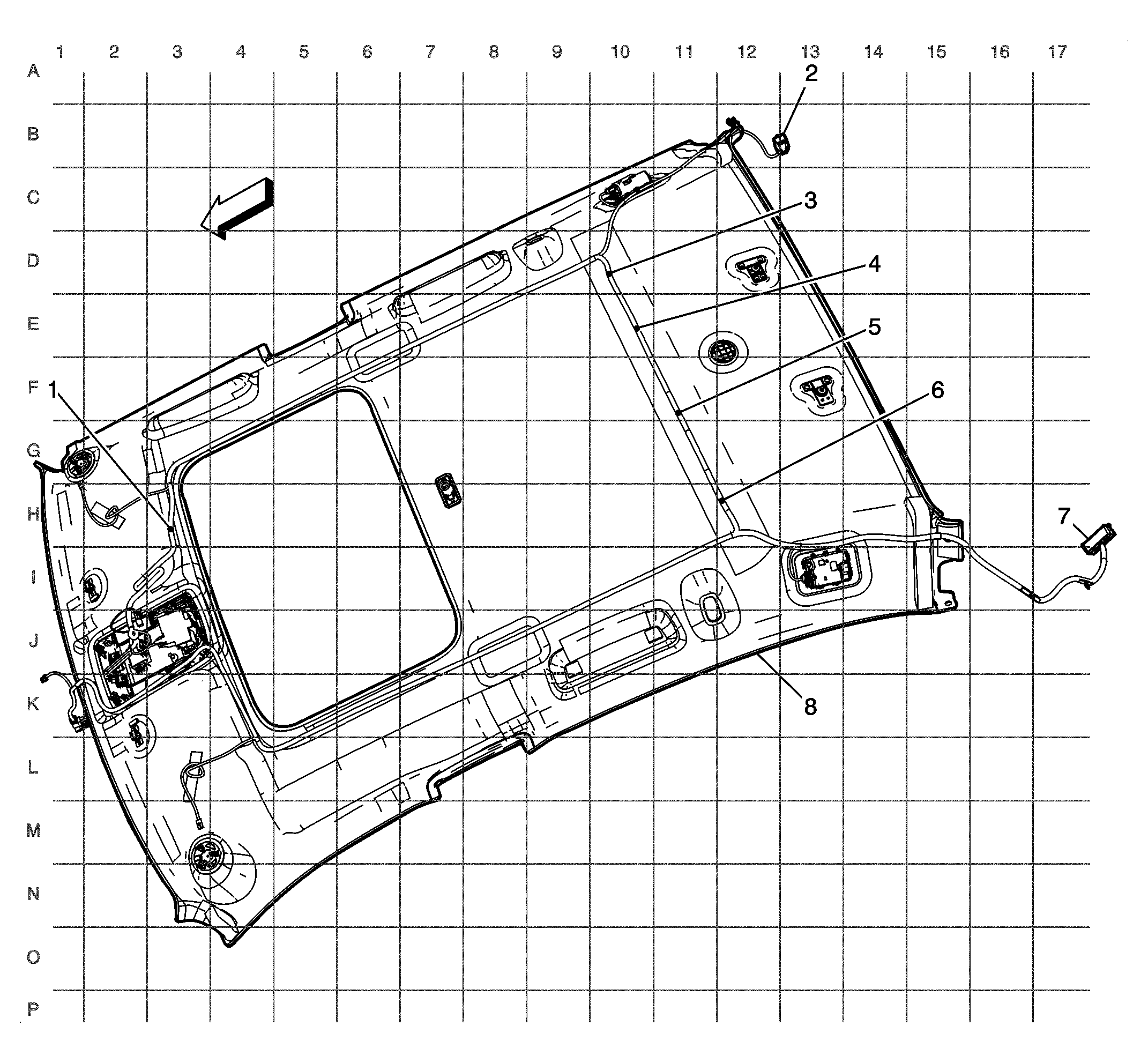

Fig 17: View Of Headliner Harness (CF5)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	J334
2	X399
3	J385
4	J328
5	J312
6	J313
7	X321
8	Headliner

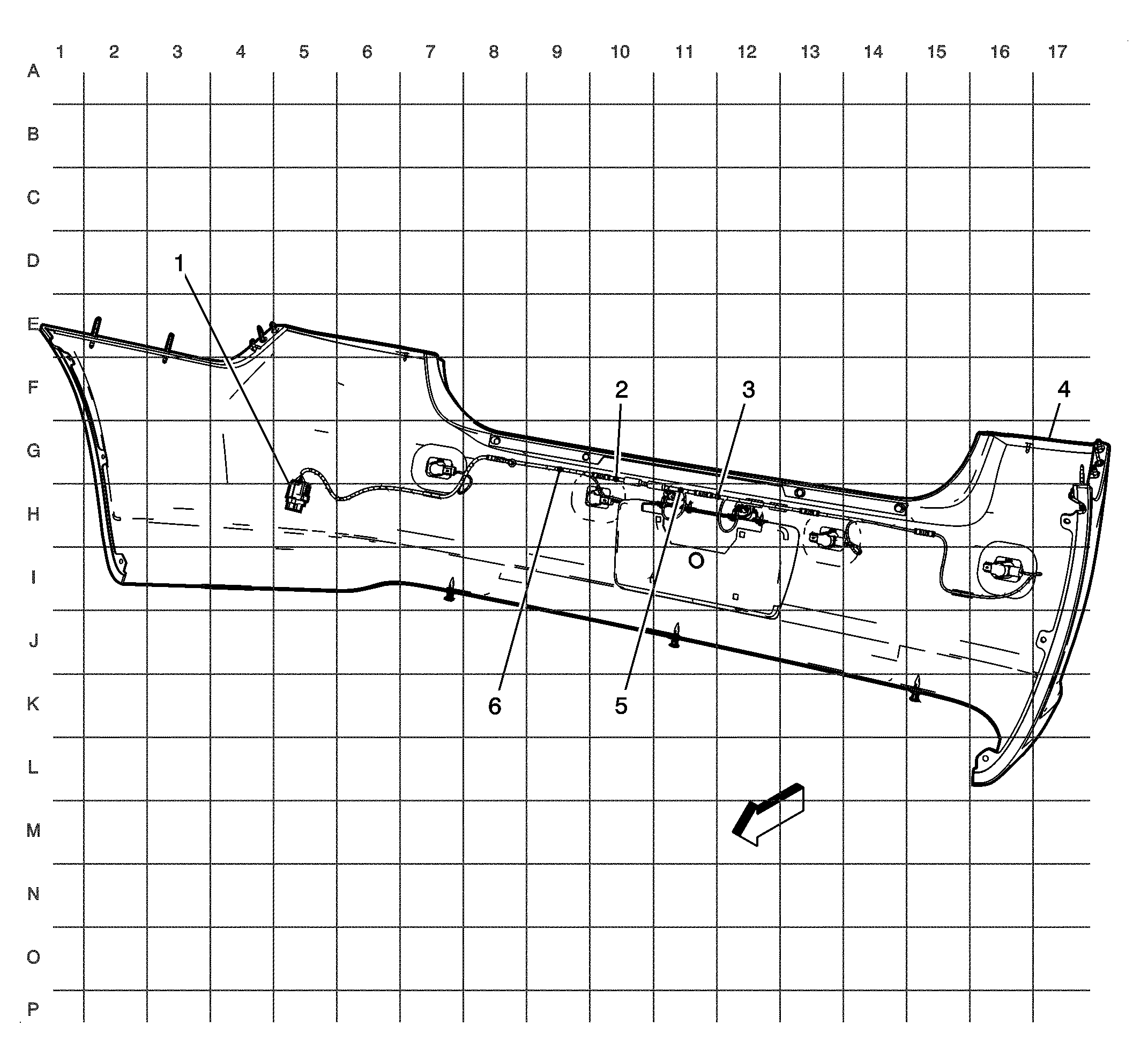

Fig 18: View Of Rear Fascia Harness

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X494 (UD7), X495 (-UD7)
2	J401
3	J404
4	Rear Fascia
5	J402
6	J400
