Ground Distribution Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: G101, G110, G111, G114, G115, G302, G303, G306, G307

Courtesy of GENERAL MOTORS CORP.

Fig 2: G100, G112 (LD8)

Courtesy of GENERAL MOTORS CORP.

Fig 3: G104

Courtesy of GENERAL MOTORS CORP.

Fig 4: G112 (L26)

Courtesy of GENERAL MOTORS CORP.

Fig 5: G300

Courtesy of GENERAL MOTORS CORP.

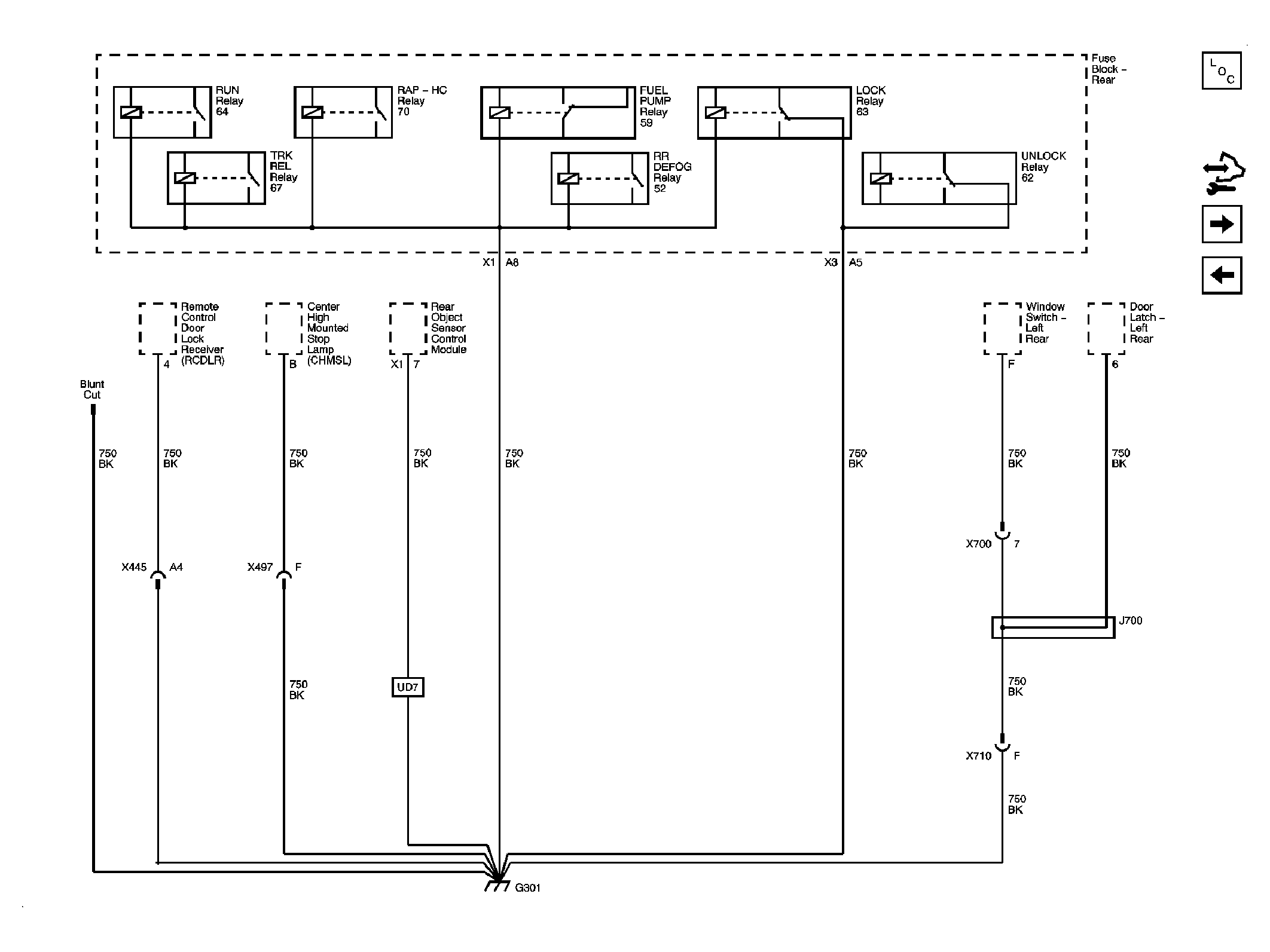

Fig 6: G301

Courtesy of GENERAL MOTORS CORP.

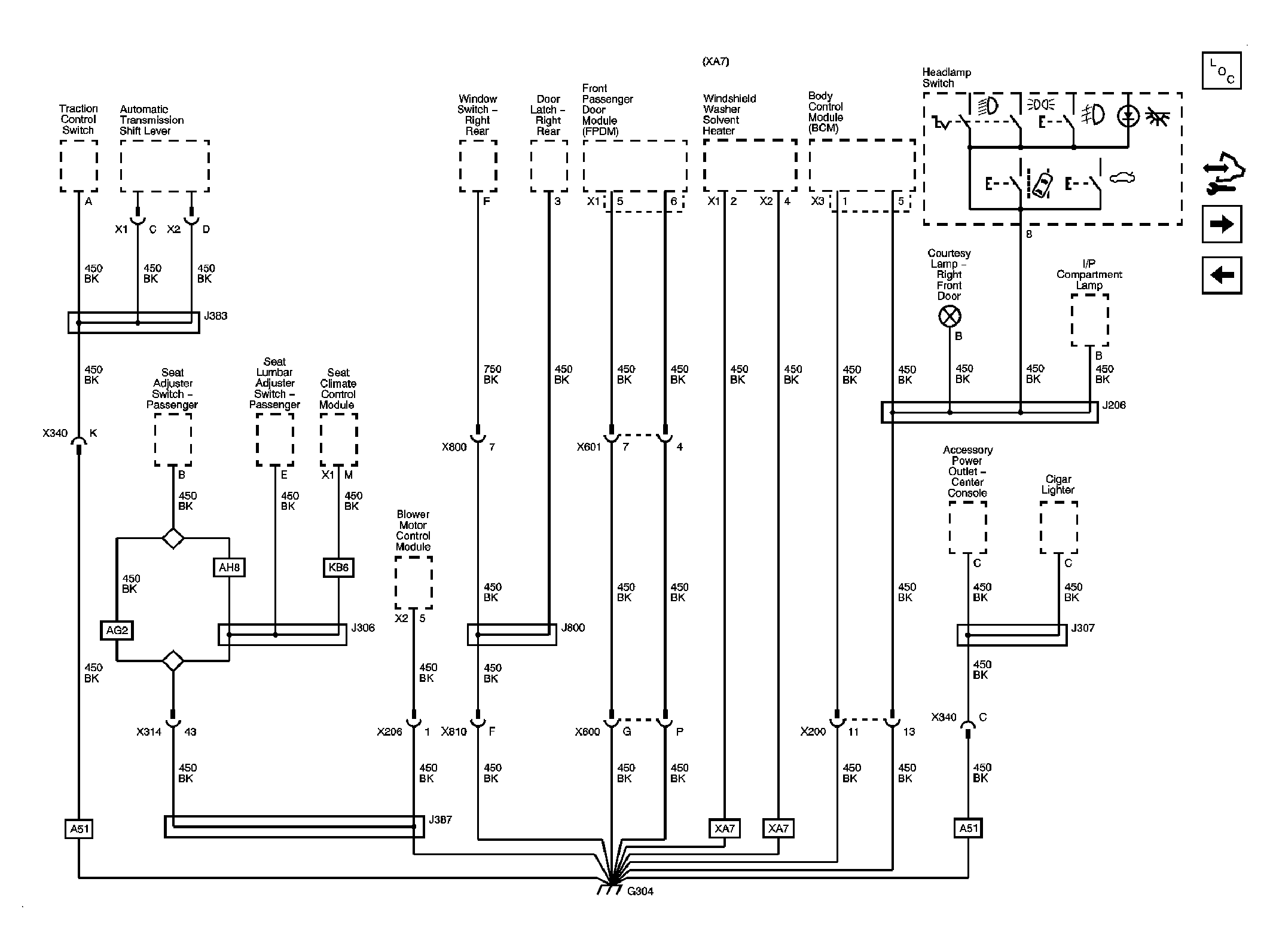

Fig 7: G304

Courtesy of GENERAL MOTORS CORP.

Fig 8: G305

Courtesy of GENERAL MOTORS CORP.

Fig 9: G402

Courtesy of GENERAL MOTORS CORP.

Fig 10: G403

Courtesy of GENERAL MOTORS CORP.
