Steering Wheel Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

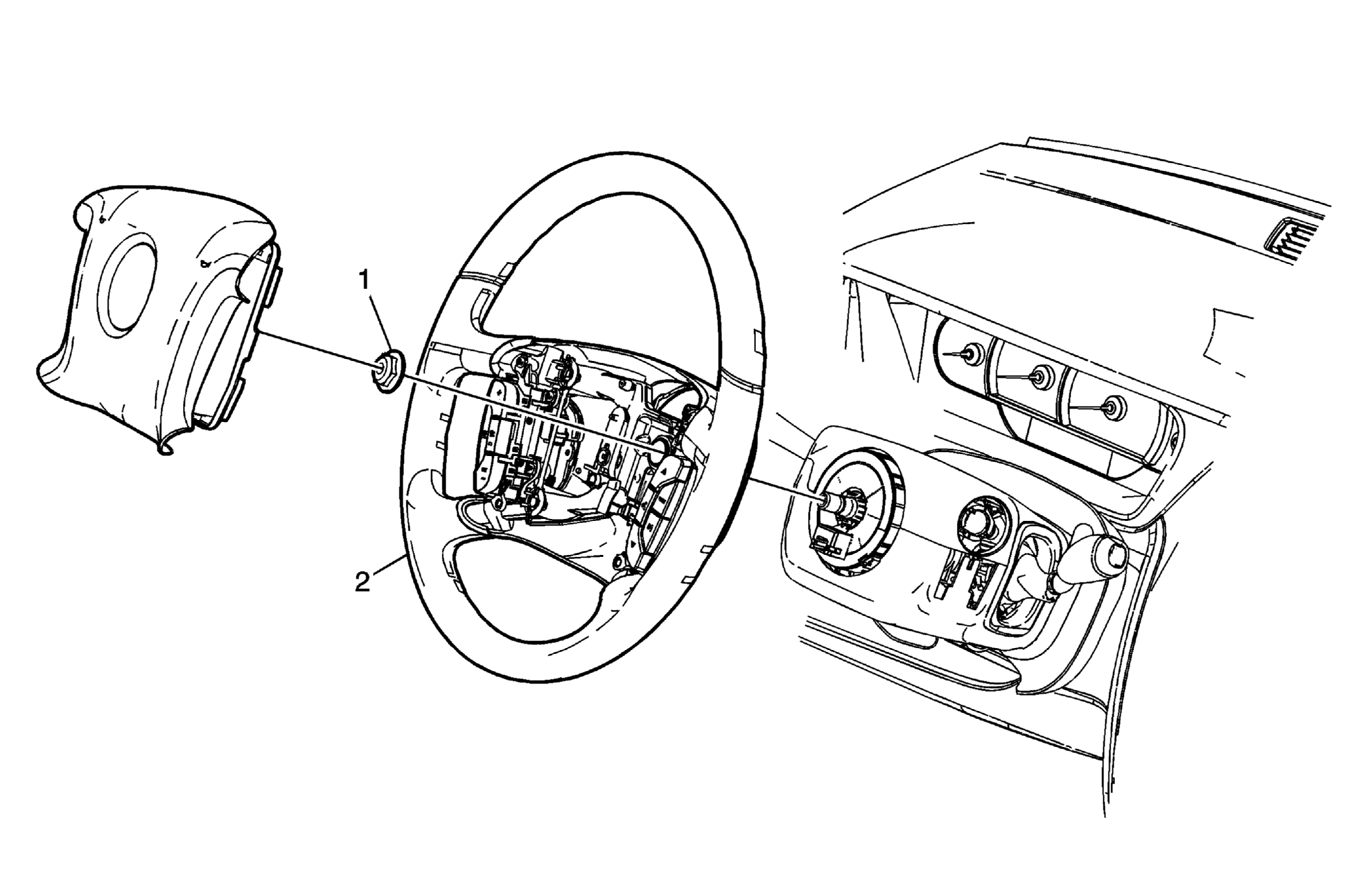

Fig 1: View Of Steering Wheel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Nut NOTE: Refer to Fastener Notice . Tighten: 40 N.m (30 lb ft)
2	Steering Wheel Procedure Disconnect any electrical connectors as needed. Use puller J 1859-A and puller legs J 42578 to remove the steering wheel. See Special Tools . Special Tools J 1859-A Steering Wheel Puller J 42578 Steering Wheel Puller Legs. See Special Tools .

Callout

Component Name

Preliminary Procedure:
Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .

Steering Wheel Nut

NOTE: Refer to Fastener Notice .

Tighten: 40 N.m (30 lb ft)

Steering Wheel

Procedure

Disconnect any electrical connectors as needed.
Use puller J 1859-A and puller legs J 42578 to remove the steering wheel. See Special Tools .

Special Tools

J 1859-A Steering Wheel Puller
J 42578 Steering Wheel Puller Legs. See Special Tools .
