Rear Seat Back Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

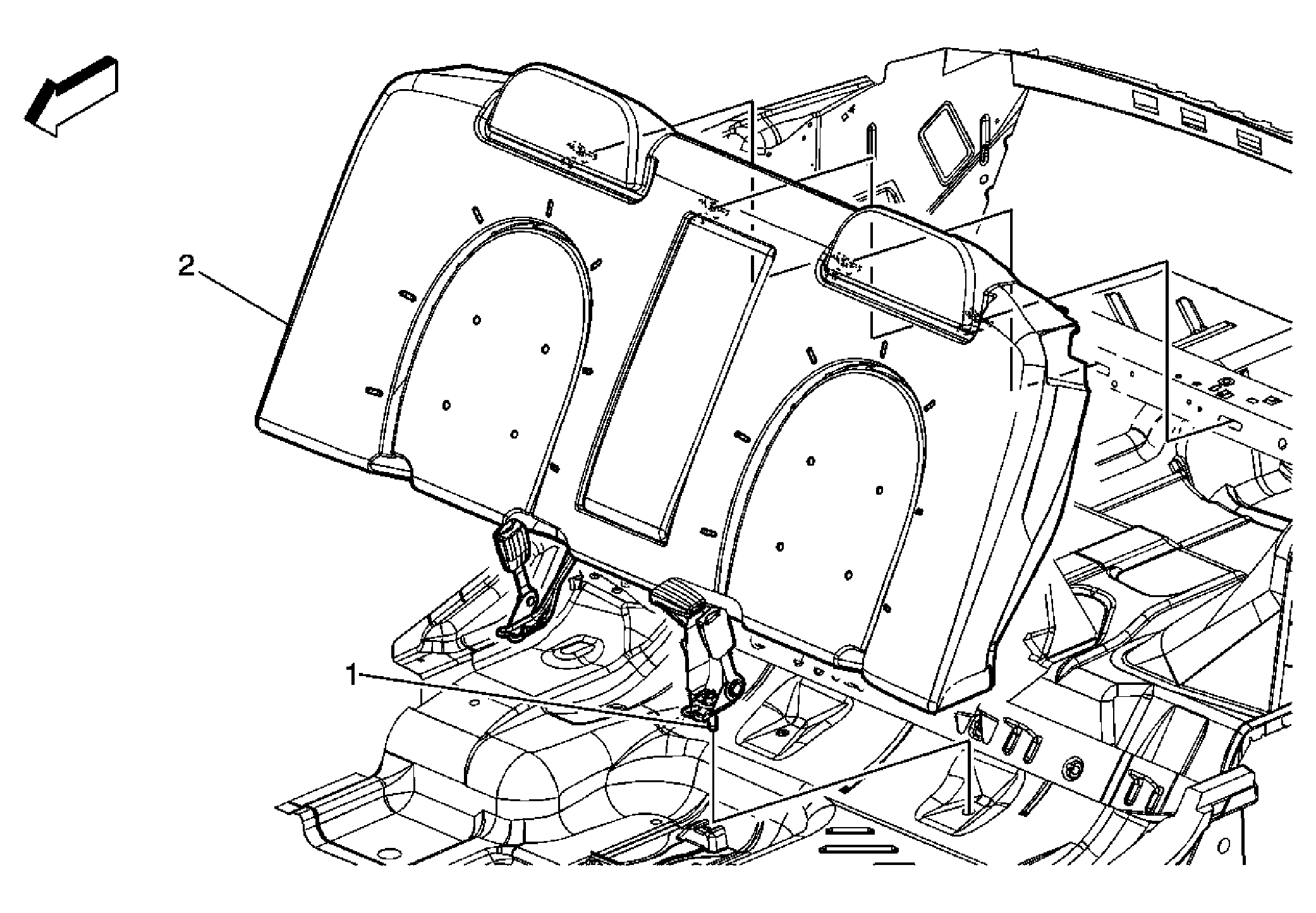

Fig 1: View Of Rear Seat Back

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the rear seat cushion. Refer to Rear Seat Cushion Replacement .
1	Bolt, Rear Seat Back Cushion NOTE: Refer to Fastener Notice . Tighten: 41 N.m (30 lb ft)
2	Cushion, Rear Seat Back Tip: Insert a flat-bladed tool between the top of the rear seat back and the rear shelf. Push the flat-bladed tool down to release the four retainers in order to remove the rear seat back.
