Quarter Upper Trim Panel Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

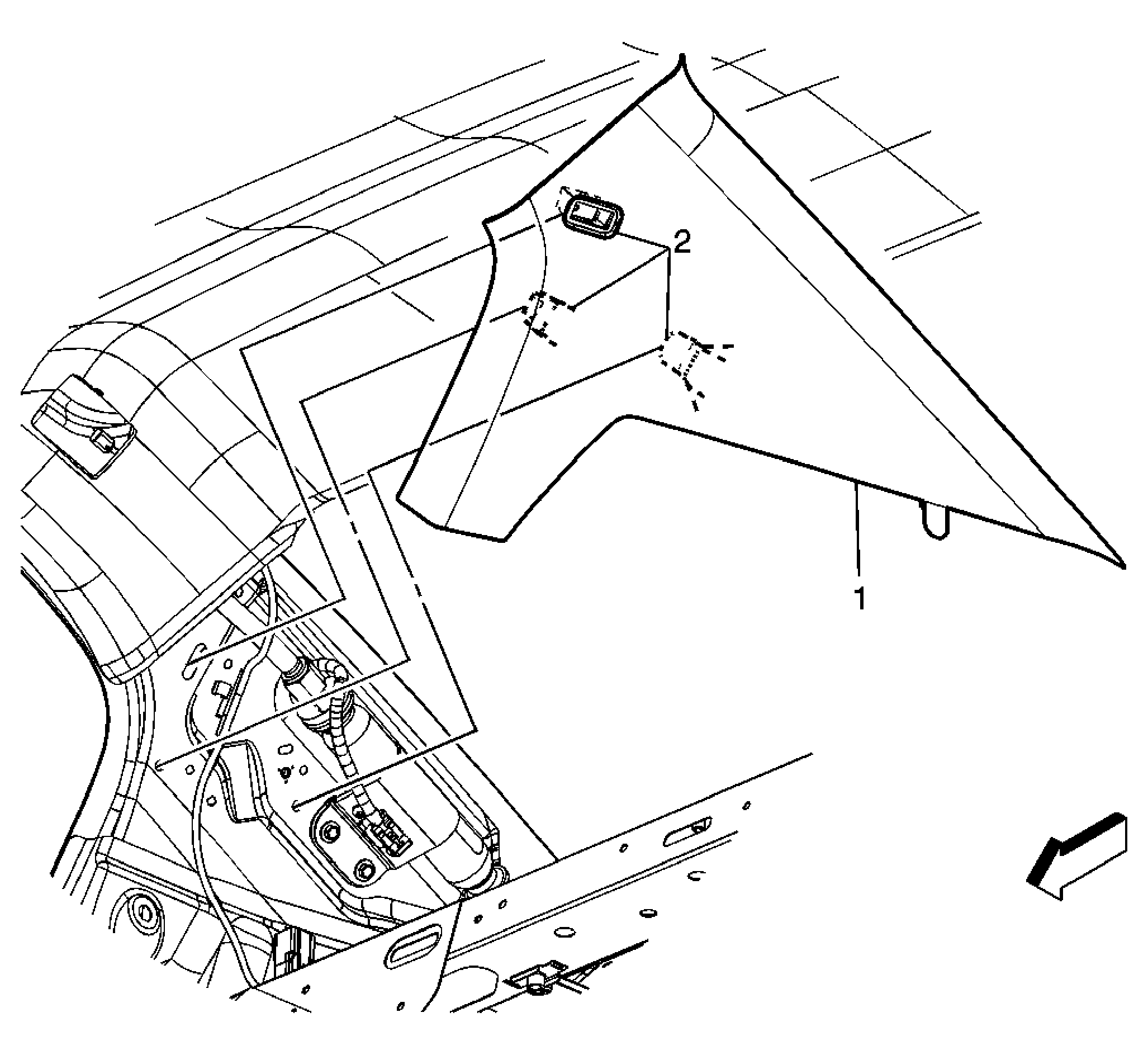

Fig 1: Locating Rear Quarter Upper Trim Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .
1	Quarter Upper Trim Panel Assembly Tip: Remove the trim cover and screw.
2	Quarter Upper Trim Panel Retainers (Qty: 3)
