Moveable Window Schematics

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

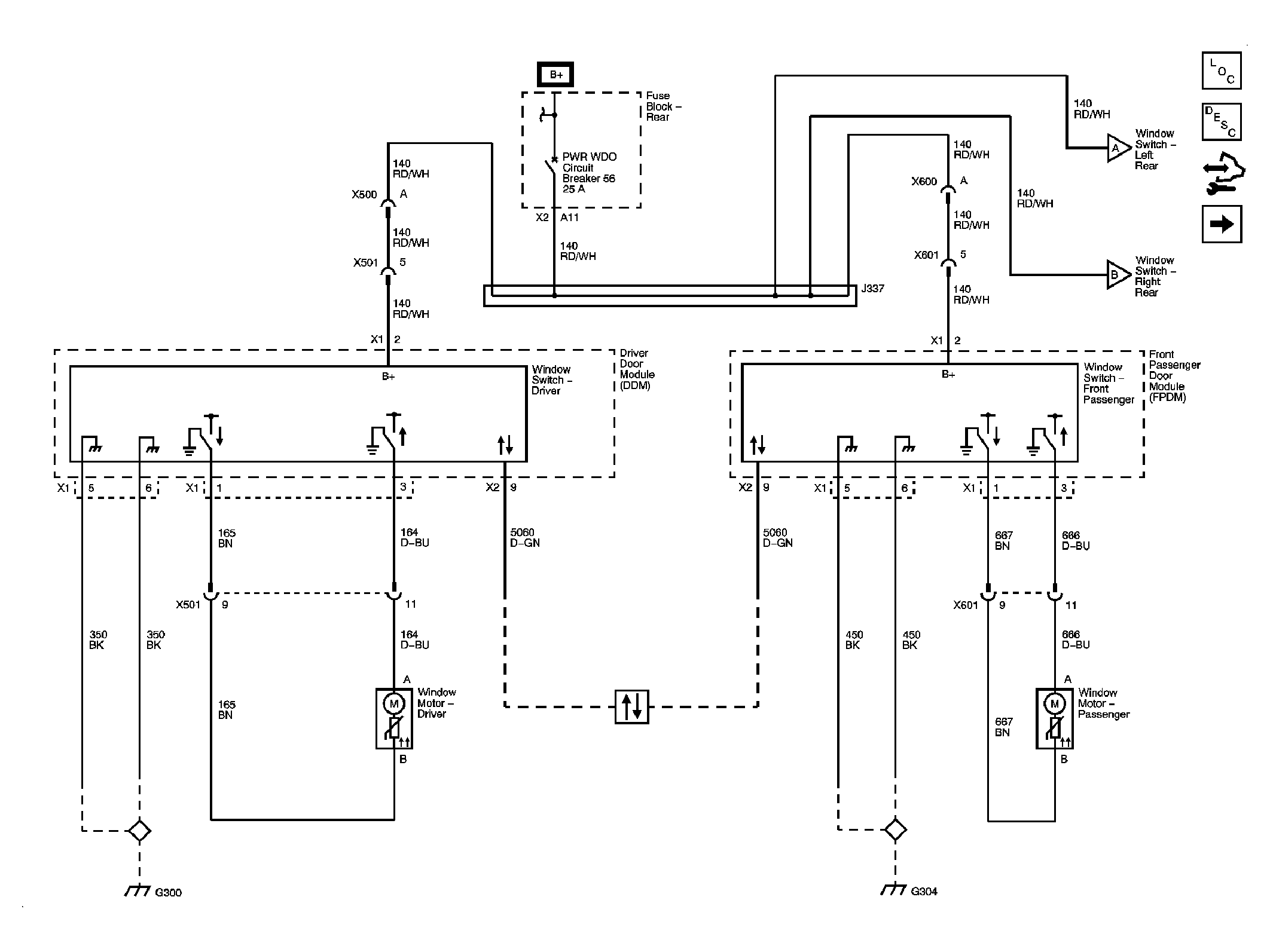

Fig 1: Front Window Switches and Motors
GM1886527Courtesy of GENERAL MOTORS CORP.

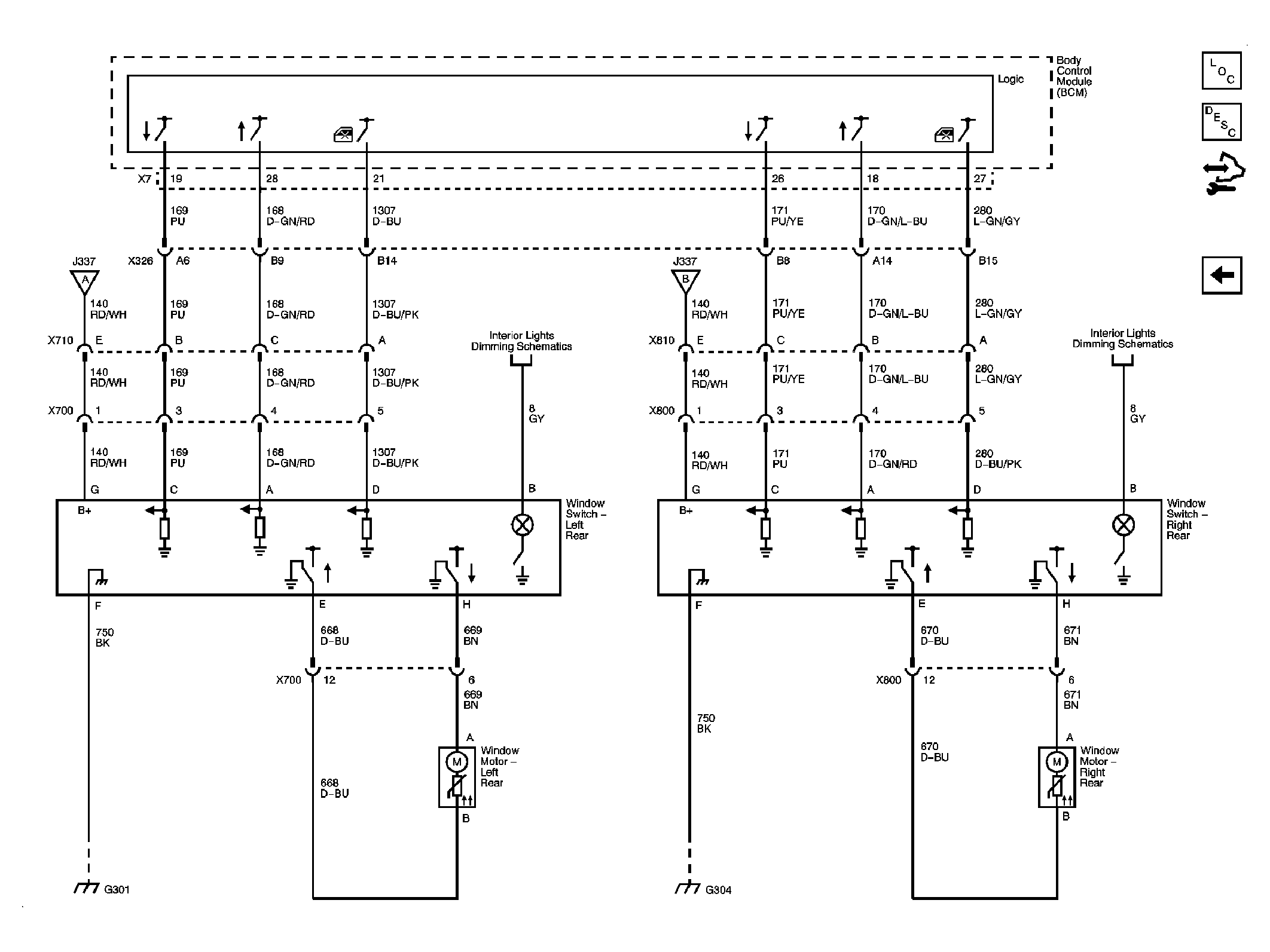

Fig 2: Rear Window Switches and Motors
GM1886529Courtesy of GENERAL MOTORS CORP.
