Front Side Door Window Regulator Motor Replacement

WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.

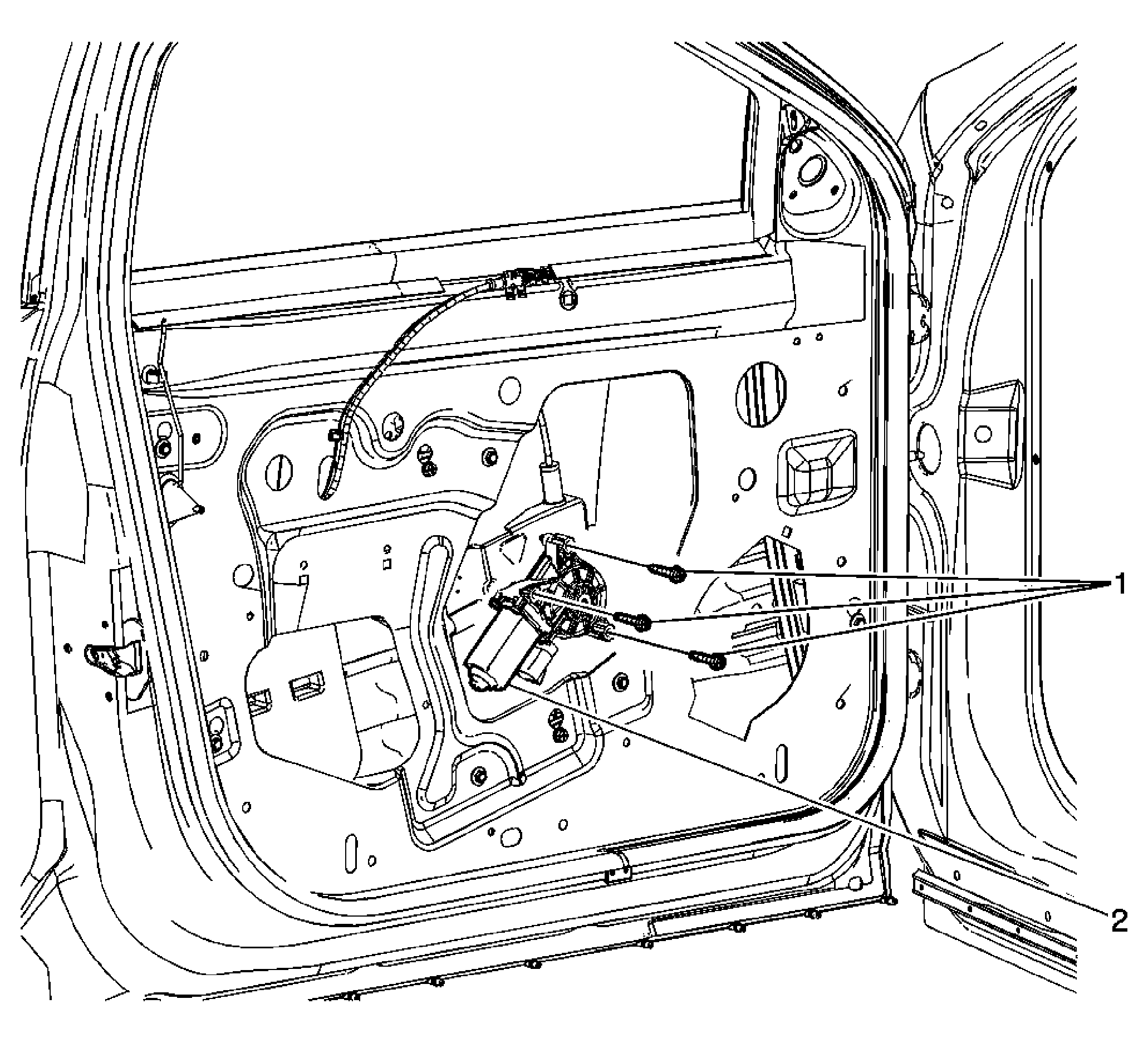

Fig 1: Locating Front Side Door Window Regulator Motor Bolts

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the trim panel. Refer to Front Side Door Trim Panel Replacement . Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .
1	Front Door Window Motor Bolts (Qty: 3) NOTE: Refer to Fastener Notice . Tighten: 4.6 N.m (41 lb in)
2	Front Door Window Motor Procedure Disconnect the electrical connector. Inspect the window for proper operation and programming. Refer to Window Regulator Motor Programming and Setup .

Callout

Component Name

Preliminary Procedure

Remove the trim panel. Refer to Front Side Door Trim Panel Replacement .
Remove the water deflector. Refer to Front Side Door Water Deflector Replacement .

Front Door Window Motor Bolts (Qty: 3)

NOTE: Refer to Fastener Notice .

Tighten: 4.6 N.m (41 lb in)

Front Door Window Motor

Procedure

Disconnect the electrical connector.
Inspect the window for proper operation and programming. Refer to Window Regulator Motor Programming and Setup .
