Cooling Fan and Shroud Replacement (LNF)

WARNING: This page is about a different car, the 2007 Saturn Sky. However, it is still accessible from the selected car via links, so may be relevant.

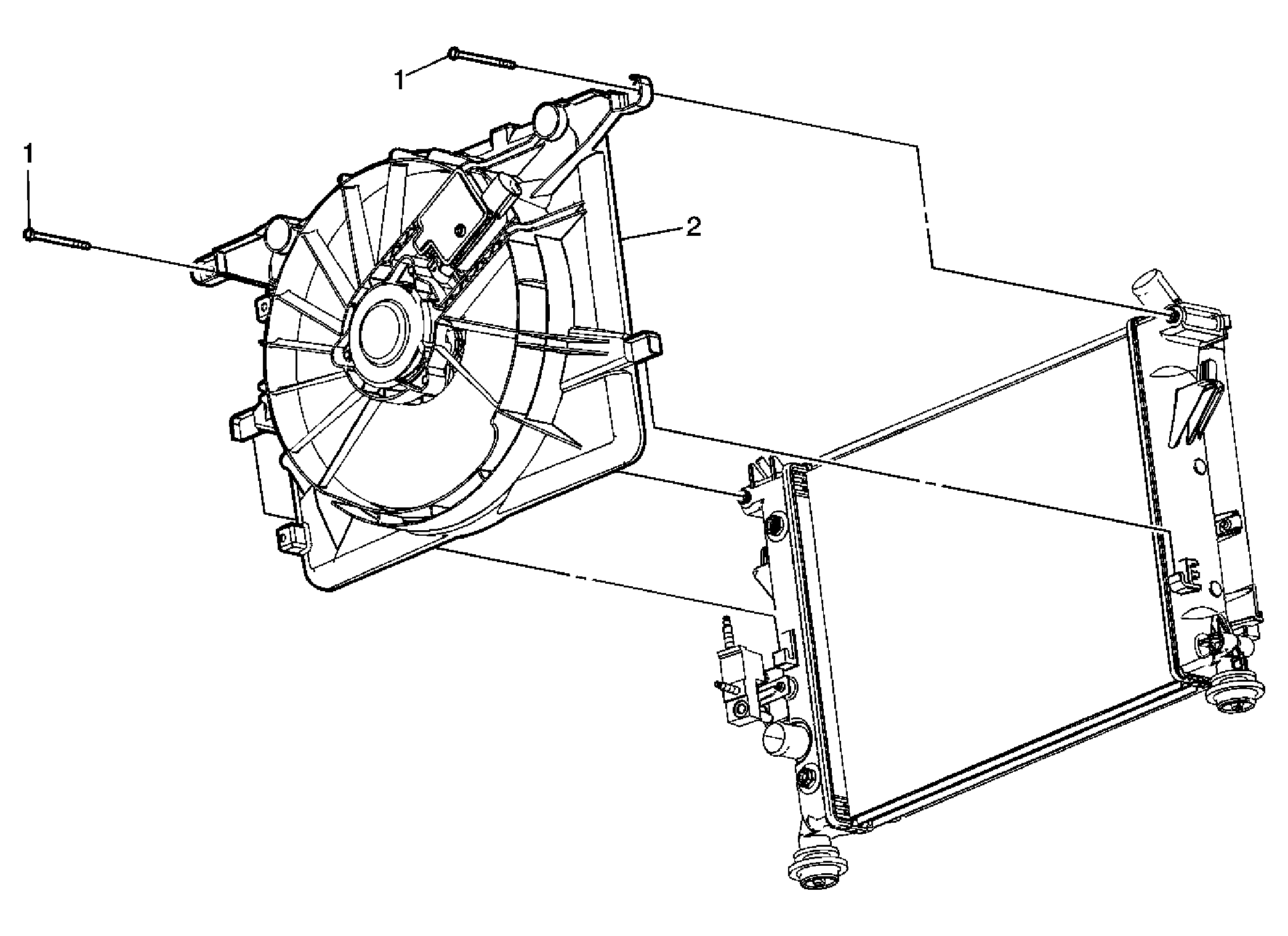

Fig 1: Cooling Fan & Shroud (LNF)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement . Remove the charge air cooler outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement . Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement . Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement . Disconnect the cooling fan motor electrical connector.
1	Radiator Assembly Bolt NOTE: Refer to Fastener Notice . Tighten: 25 N.m (18 lb ft)
2	Cooling Fan and Motor Shroud Assembly

Callout

Component Name

Preliminary Procedures

Remove the charge air cooler inlet pipe. Refer to Charge Air Cooler Inlet Pipe Replacement .
Remove the charge air cooler outlet pipe. Refer to Charge Air Cooler Outlet Pipe Replacement .
Remove the air cleaner assembly. Refer to Air Cleaner Assembly Replacement .
Remove the air cleaner duct. Refer to Air Cleaner Outlet Duct Replacement .
Disconnect the cooling fan motor electrical connector.

Radiator Assembly Bolt

NOTE: Refer to Fastener Notice .

Tighten: 25 N.m (18 lb ft)

Cooling Fan and Motor Shroud Assembly
